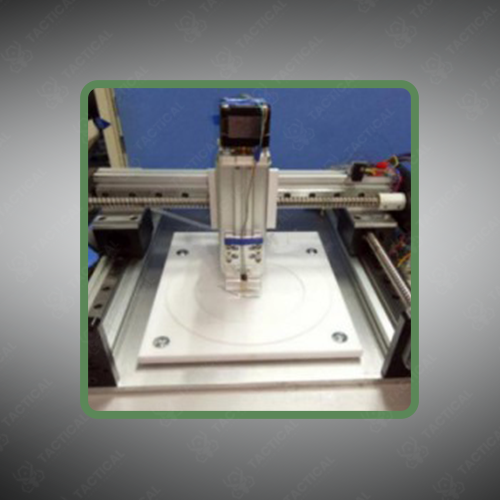

Nondestructive Testing System
Integrated nondestructive testing (NDT) system that evaluates material integrity and detects flaws without damaging the test object, suitable for industrial inspection and quality assurance.
Key Features:
✔️Utilizes nondestructive methods to identify internal defects without altering the material
✔️Accurate detection of cracks, voids, inclusions, and structural inconsistencies
✔️Supports multiple NDT techniques such as ultrasonic, eddy current, and magnetic particle testing
✔️High-resolution signal acquisition improves flaw characterization and sizing
✔️Real-time display and analysis tools assist rapid decision-making on material condition
✔️Portable or bench configuration adapts to both field and laboratory inspection tasks
✔️User-friendly interface and software streamline testing procedures and reporting
✔️Applicable across manufacturing, aerospace, automotive, and construction sectors
Nondestructive Testing System
The Nondestructive Testing System is an advanced inspection suite designed for comprehensive evaluation of materials, components, and structures without altering their serviceability. This system integrates multiple testing modules such as ultrasonic transducers, phased‑array probes, eddy‑current sensors, magnetic particle inspection units, and penetrant testing stations. The core architecture includes high‑frequency pulser/receiver circuits, precision motion stages, and configurable inspection heads to suit different NDT methods. The chassis is built from industrial‑grade steel with vibration isolation feet, while the control console houses a high‑resolution display, programmable logic controller, and communication interfaces for USB and Ethernet connectivity. The user interface supports real‑time signal visualization, data logging, and report generation via dedicated software.
Key components of this system include a modular probe array for ultrasonic and eddy‑current inspection, a radiographic shielded enclosure for X‑ray imaging, and magnetic flux generators for particle testing. Ultrasonic modules operate across a broad frequency range for thickness measurements and flaw detection, while phased‑array capabilities allow electronic beam steering and focused scans. Eddy‑current probes detect surface and near‑surface defects in conductive materials. Liquid penetrant and magnetic particle attachments enable rapid surface discontinuity identification. Built‑in calibration standards ensure consistent accuracy and repeatable results.
In real‑world applications, the Nondestructive Testing System is deployed across aerospace, automotive, energy, and construction industries. It verifies weld integrity on pressure vessels, inspects aircraft components for crack propagation, maps corrosion in pipelines, and assesses composite materials in structural assemblies. Quality control teams use it during production and maintenance phases to prevent failures and ensure compliance with safety regulations.
Inspection engineers and industrial teams trust Tactical Supply Pakistan to supply robust, multi‑functional NDT solutions backed by technical support and training.
What common defect types can this system detect across materials?
The system can identify cracks, corrosion, porosity, inclusions, and weld discontinuities without damaging the tested part.
