Time Domain Reflectometer System
Advanced TDR systems for precise fault location, diagnosis, and network analysis of metallic cabling, enabling rapid troubleshooting, maintenance, and infrastructure validation.
Key Features:
✔️ Accurately locates cable faults such as opens, shorts, and impedance mismatches
✔️ Supports metallic cables across telecom, power, data, and low-voltage networks
✔️ Automatic and manual TDR modes for flexible fault detection and analysis
✔️ High-resolution distance measurement with clear waveform displays
✔️ Multiparameter testing including attenuation, resistance, and crosstalk analysis
✔️ Portable, rugged designs for reliable field use in varied environments
✔️ Data export and on-board storage for reporting and workflow documentation
✔️ Compatible with plug-in modules for expanded testing, including DSL/IP and safe live mains evaluation
Time Domain Reflectometer System
The Time Domain Reflectometer System transmits electrical pulses through metallic cables and analyzes reflected waveforms to identify fault locations and impedance discontinuities. These instruments measure the time delay between transmitted pulses and returning reflections, calculating distance to opens, shorts, water ingress points, and splice irregularities along conductor paths. The systems display waveform traces on backlit LCD screens, with cursors marking fault positions and automatic calculations showing distance measurements in meters or feet. Data logging functions store multiple trace captures for comparison analysis and documentation export.

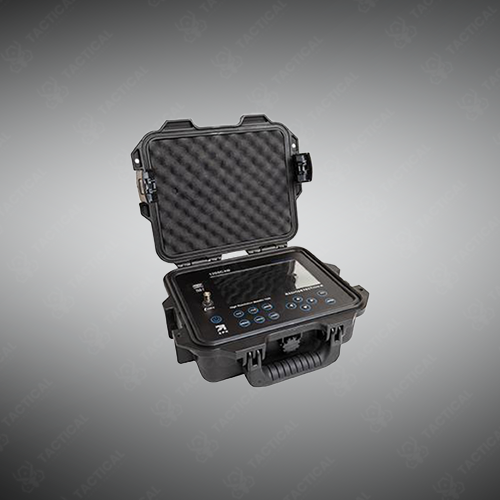

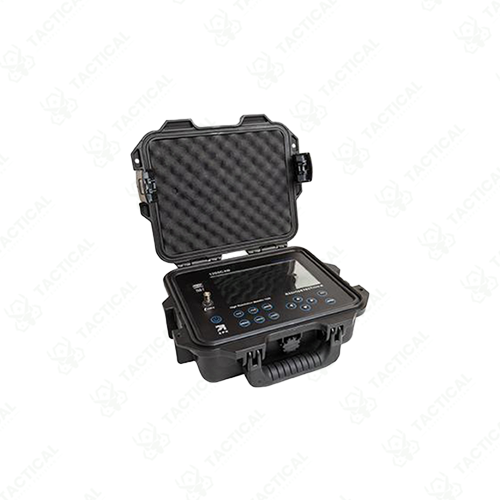

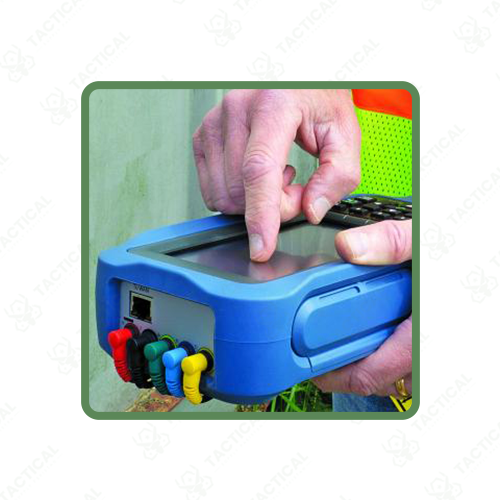

The 1205CXB Cable Analyzer features automatic threshold scanning that identifies impedance changes exceeding programmable limits, with dual cursor capability for measuring spacing between multiple faults. The 6100 Series integrates TDR functionality with multimeter measurements, attenuation testing, and DSL service validation including ADSL2+ and VDSL2 profile analysis. The Lexxi T1660 provides one percent distance accuracy across cable lengths up to six kilometers, with optional plug-in modules expanding capability for live circuit testing.
Telecommunications providers use the Time Domain Reflectometer System to locate cable breaks and water damage in buried copper distribution networks serving residential subscribers. Military communications units diagnose field wire faults in tactical cable installations connecting command posts across training areas. Navy shipboard electricians trace shorts and opens in power distribution cables running through hull compartments and machinery spaces. Airforce runway lighting technicians locate series circuit faults in buried constant-current cables feeding approach and taxiway lighting systems.
Tactical Supply Pakistan supplies cable fault location equipment enabling rapid diagnosis of metallic conductor failures across telecommunications and power distribution networks. The company supports infrastructure maintenance teams requiring precise fault positioning.
Can TDR systems detect intermittent faults that only appear under specific conditions?
TDR captures only present impedance conditions during testing; intermittent faults require testing during fault occurrence or alternative methods like arc reflection monitoring for transient detection.
