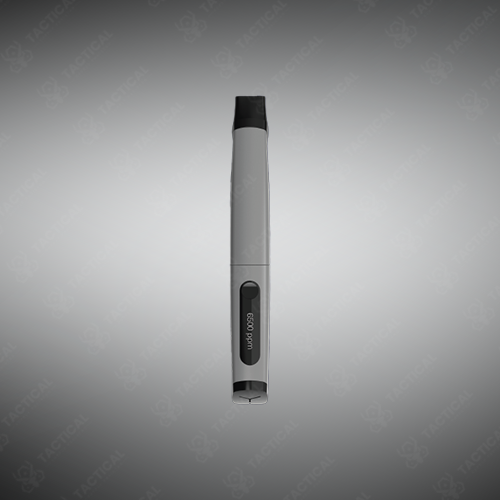

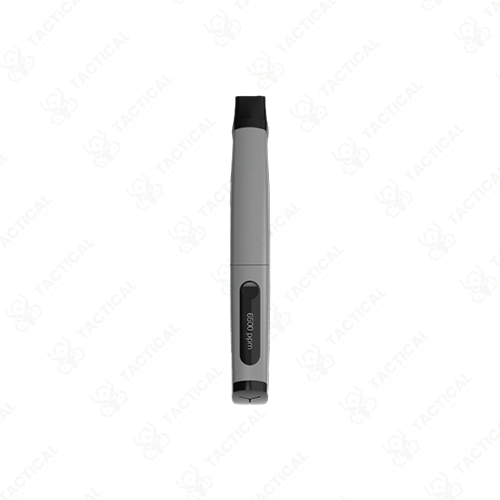

Nitrous Oxide Breathalyzer
A portable, infrared-based breathalyzer for real-time, accurate detection of nitrous oxide levels in clinical, workplace, and law enforcement environments.
Key Features:
✔️ Real-time measurement of N₂O concentration for immediate results
✔️ Infrared sensor technology ensures high precision and reliability
✔️ Wide detection range: 0–10,000 ppm for versatile applications
✔️ Compact and lightweight design (25 × 25 × 185 mm; 60 g) for easy portability
✔️ Long-lasting 860 mAh lithium battery with Micro USB (Type B) charging
✔️ Calibration interval of 18 months reduces maintenance requirements
✔️ Operational range 10 °C–40 °C; storage range -20 °C–70 °C for flexible deployment
✔️ Suitable for workplace monitoring, healthcare settings, and law enforcement use
Nitrous Oxide Breathalyzer
The Nitrous Oxide Breathalyzer measures 185 x 25 x 25 millimeters and weighs 60 grams, utilizing infrared spectroscopy technology to detect N2O concentrations in exhaled breath samples. The device operates across a measurement range from 0 to 10,000 parts per million with real-time digital display output on an integrated LCD screen. Power delivery occurs through a Micro USB Type B connection, supported by an internal 860 mAh lithium battery providing approximately 8 hours of continuous testing capability.
The sensor chamber employs infrared absorption principles where nitrous oxide molecules absorb specific wavelengths, allowing precise concentration calculations within three seconds of breath sample introduction. Operating temperature range spans 10°C to 40°C for active testing, while storage tolerances extend from -20°C to 70°C for maximum 6-hour durations. The handheld form factor includes a mouthpiece attachment port and single-button operation interface requiring minimal user training. Results display in parts per million with data logging capability storing up to 500 individual test records accessible via USB connection to computer systems.
Military police units deploy the Nitrous Oxide Breathalyzer during vehicle checkpoint operations where recreational inhalant abuse compromises driver alertness and threatens base security. Naval shore patrol teams use these devices to screen personnel returning from liberty where substance violations warrant administrative actions. Air force security forces conduct random testing at access control points protecting sensitive flight line areas. Army criminal investigation units employ them during workplace incident investigations involving suspected impairment.
Tactical Supply Pakistan supplies detection equipment that identifies emerging substance threats not addressed by traditional screening methods used in military law enforcement operations.
Does this device detect other inhalants besides nitrous oxide?
No. The infrared sensor specifically targets N2O molecular signatures and cannot identify other volatile substances like toluene, butane, or aerosol propellants requiring different detection technologies.
