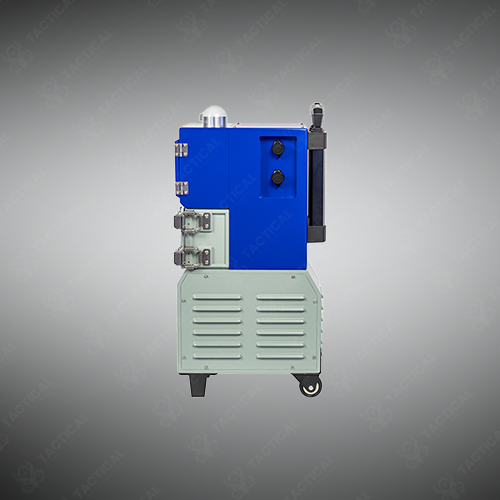

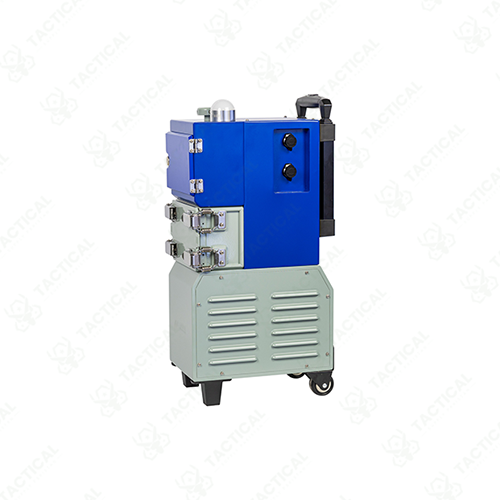

Airborne Radioactive Aerosol Monitor

Airborne Radioactive Aerosol Monitor

The Airborne Radioactive Aerosol Monitor employs ion-implanted silicon detector positioned above fluorine-based microporous filter paper within the sampling channel for alpha and beta radioactive aerosol detection. This system achieves 99% minimum aerosol collection efficiency while resisting radon progeny interference through energy spectrum fitting and subtraction algorithms. The unit weighs under 30 kilograms and operates between -20°C and 50°C with basic error below ±20%. Alarm response intervals adjust from 15 to 60 minutes based on monitoring requirements.

The monitor features automatic energy calibration, efficiency calibration, and spectral shape detection with natural environmental background compensation capability. Dual operating modes enable continuous operation or intermittent sampling protocols. Integrated intelligent design combines parameter configuration, sampling control, measurement processing, real-time display, data storage, alarm activation, and communication functions. The system complies with GJB151-97 electromagnetic compatibility standards and meets GJB4000-2000, GJB4.7-1983, GJB4.9-1983, and GJB1060.1-1991 vibration and shock resistance specifications.

Military nuclear facility security forces install the Airborne Radioactive Aerosol Monitor at strategic weapons assembly areas to detect unauthorized radioactive material movement and verify containment integrity around fissile material storage. Naval nuclear propulsion training facilities deploy these monitors in reactor compartment simulators and decontamination stations monitoring personnel exposure during maintenance exercises. Air force nuclear weapons maintenance squadrons position units in assembly bays and transport vehicle loading areas detecting aerosol releases during warhead handling operations. Border security installations utilize the system at cargo inspection stations screening shipping containers for concealed radioactive materials.

Tactical Supply Pakistan provides continuous airborne radioactivity monitoring systems designed for unattended long-duration deployment in critical infrastructure protection applications.

How does the system distinguish between natural radon progeny and artificial radioactive aerosols?
Energy spectrum analysis identifies characteristic alpha and beta emissions from artificial nuclides while automated subtraction algorithms remove radon decay chain contributions, calculating net artificial nuclide concentrations independent of fluctuating natural background radiation levels.
