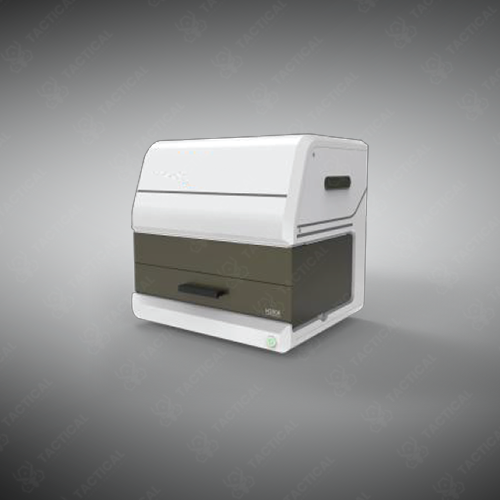

Intelligent Document Inspection Workstation
Intelligent Document Inspection Workstation is an advanced forensic workstation for document verification.
Key Features:
✔️ Dual-camera system: 4K multispectral main camera + 1200W auxiliary macro camera
✔️ High-resolution imaging: 8MP standard / 12MP HD output
✔️ Variable magnification: 1.6×–32× optical, up to 320× total
✔️ Large platform: 345 × 260 mm, supports A4 documents
✔️ Expandable detection space: Four-way buffer doors
✔️ UV protection: Automatic short-wave cutoff for operator safety
✔️ Full-frame coverage: Main 255 × 145 mm; auxiliary 345 × 237 mm
✔️ LED illumination: Adjustable professional lighting
✔️ RF chip reading: Supports ID & e-passports (ISO14443 A/B)
✔️ High-speed USB 3.0: 4K video, 30 FPS, smooth display
✔️ Forensic detection: Alteration, forgery, indentation, stamps, anti-counterfeiting, fluorescence
Intelligent Document Inspection Workstation
The Intelligent Document Inspection Workstation features dual camera configuration with a main 4K color/infrared multispectral imaging system outputting 8 or 12 megapixel images and an auxiliary 12 megapixel camera for macro full-frame photography. It provides 1.6-32x optical magnification on 27-inch displays with 10x digital magnification for combined 320x total magnification. The 345mm x 260mm observation platform accommodates A4 documents with four-way buffer damping doors for flexible space expansion.
This workstation transmits 4K video streams at 5GB/s through USB 3.0 at 30fps without buffering. The main camera covers a 255mm x 145mm field of view for detailed trace inspection while the auxiliary camera spans the entire 345mm x 237mm platform area for full A4 scanning. It includes UV shortwave protection with electromagnetic induction that automatically cuts power when the shading plate opens, multiple professional LED light sources, and non-contact RF device reading ISO14443 Type A and B chip data from ID cards and electronic passports.
Public security organs, procuratorates, and judicial expertise institutions deploy the Intelligent Document Inspection Workstation for character alteration detection, forgery identification, addition and removal analysis, and document mending verification. Forensic document examiners use this system for encrypted document comparison, seal and stamp authentication, fluorescent inspection, character indentation recovery, and anti-counterfeiting mark validation through multispectral imaging that reveals ink compositions and paper fiber structures invisible under standard illumination conditions.
Tactical Supply Pakistan delivers this questioned document examination platform to forensic laboratories requiring comprehensive analysis capabilities for authentication investigations, fraud detection operations, and legal document verification procedures. The dual-camera system captures microscopic details and full-page context simultaneously.
How does multispectral imaging detect document alterations that visual inspection misses?
Different inks and papers absorb infrared and ultraviolet wavelengths differently based on chemical composition—the 4K multispectral system captures these spectral response variations to reveal overwriting, erasures, and substitutions even when visible wavelengths show uniform appearance.
