Laser Rangefinding Binoculars
High-performance 10×42 binoculars with integrated laser rangefinding for precise distance, height, and angle measurements in field and tactical applications.
Key Features:
✔️ 10× magnification with 42 mm objective lens for sharp, detailed observation
✔️ Measures line-of-sight distance, horizontal distance, vertical height, and pitch angle
✔️ Distance range up to 5000 m on reflective targets with ±1 m accuracy
✔️ All-glass, fully multi-coated optics for superior light transmission and clarity
✔️ Rain-repellent lens coating protects against dust, debris, and moisture
✔️ OLED red display for clear reading under all lighting conditions
✔️ Compact, rugged, and IPX6 water/fog resistant for field reliability
✔️ Adjustable focus, diopter correction, and lightweight design for extended use
Laser Rangefinding Binoculars

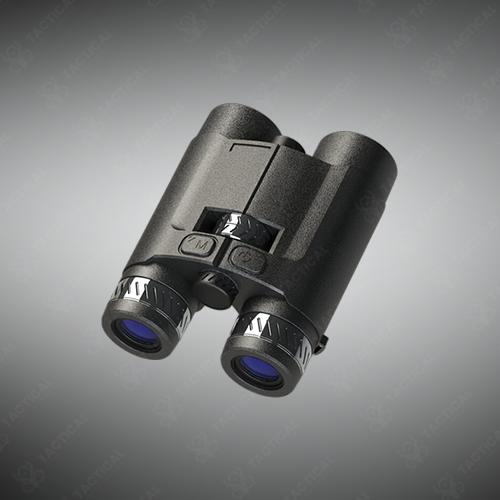

The Alpha Optics LRB5000 Laser Rangefinding Binoculars measure distances from 5 to 5000 meters on reflective targets with ±1 meter accuracy through a 905nm wavelength laser system. The 10x magnification optics utilize 42mm objective lenses with Bak4 prism glass delivering 5.7-degree field of view and 17mm eye relief. Rain-repellent protective coating shields lenses from environmental contaminants and moisture. The 5.3mm exit pupil ensures adequate light delivery for daylight observation conditions.
High-pulse-energy laser output with diffraction-limited beam quality and low divergence provides reliable returns from distant targets. OLED red display presents ranging data with minimal signature visibility during night operations.. Adjustable focus accommodates close focus down to 5 meters. Diopter adjustment ranges from +5 to -5 for individual eye correction. IPX6 water and fog resistance protects internal components during rain exposure. The unit weighs 900 grams with dimensions of 167x131x65mm. CR123A battery powers the rangefinding system. Neck strap enables hands-free carry during movement.
Artillery forward observer teams deploy the Alpha Optics LRB5000 Laser Rangefinding Binoculars for fire support coordination requiring extended-range target acquisition and precise distance measurement. Armored reconnaissance units use the system for vehicle identification and engagement range determination beyond small arms distances. Air defense crews employ the binoculars for aircraft altitude and distance calculation during threat assessment. Naval surface warfare officers utilize the device for ship-to-ship ranging during formation maneuvering.
Tactical Supply Pakistan provides these laser rangefinding binoculars for military units requiring extended-range measurement capability integrated with high-magnification observation optics.
Can the laser rangefinder measure moving targets accurately at maximum range?
Yes, the high-pulse-energy laser with low divergence maintains measurement accuracy on moving targets, though atmospheric conditions affect maximum effective range on low-reflectivity surfaces.
