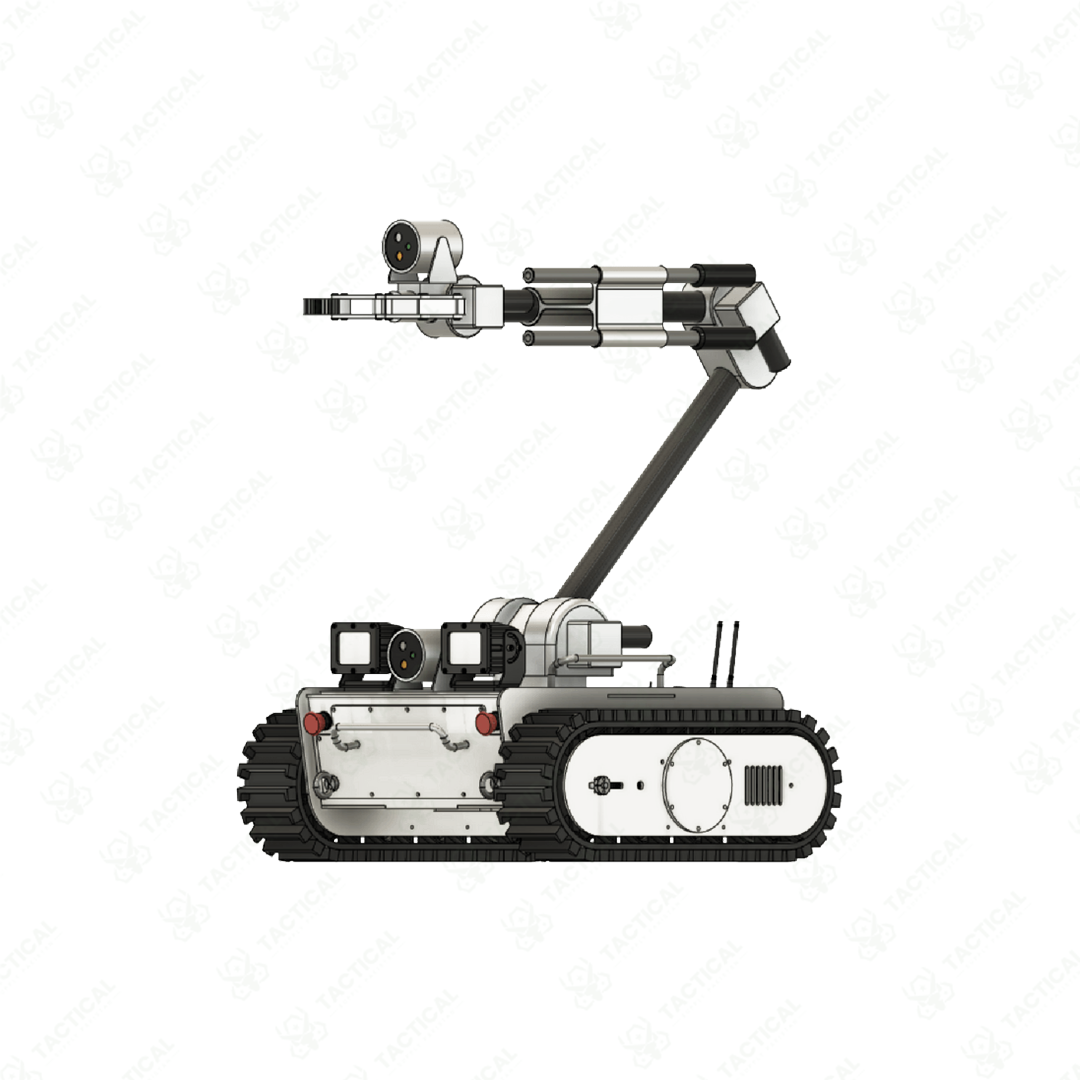

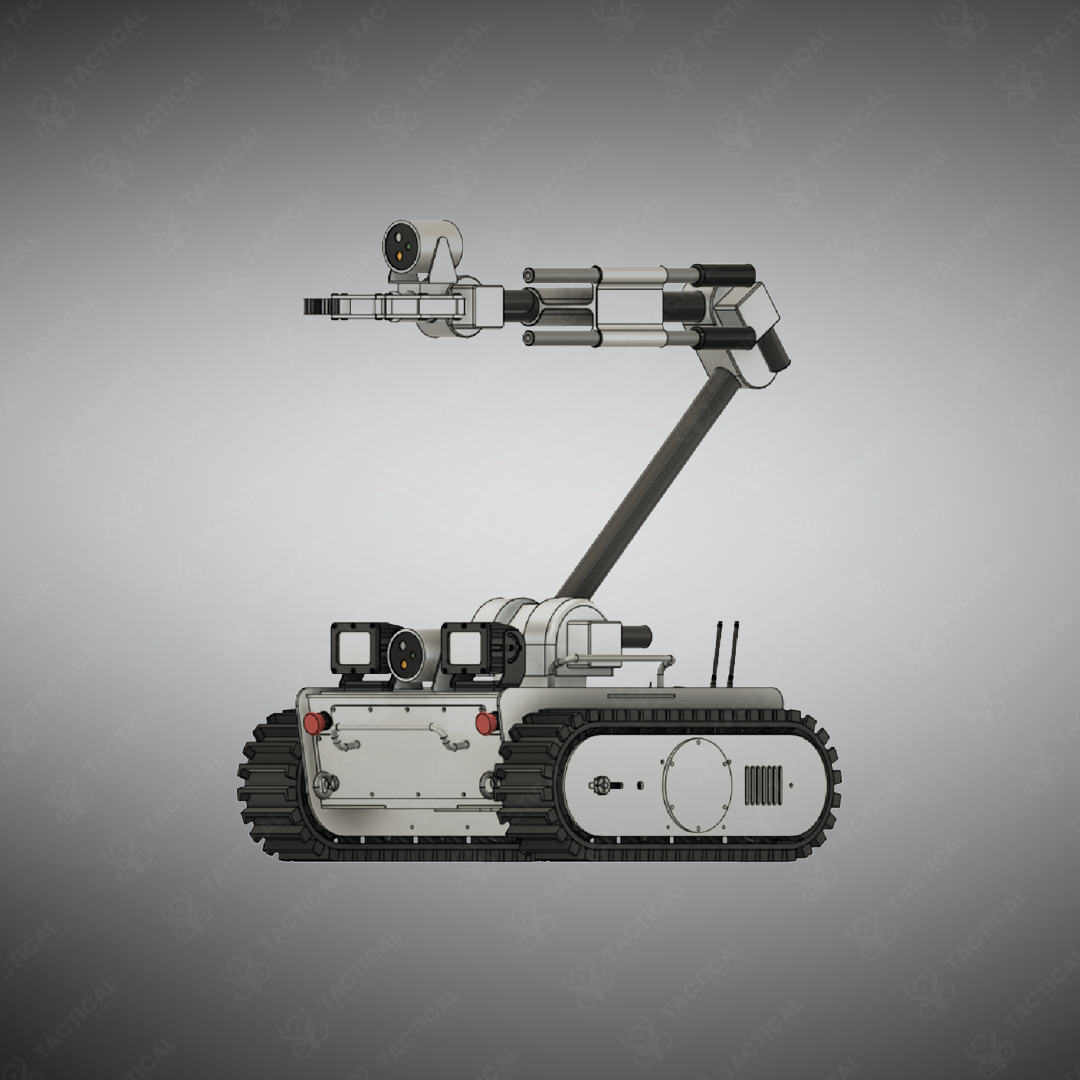

Explosive Ordnance Disposal Robot
Versatile EOD robot with manipulator arm, HD cameras, and stable low‑profile base for hazardous operations.
Key Features:
✔️ Dimensions: 36 in (w/o tracks) / 40 in (w/ tracks) × 29 in H
✔️ Weight: 180 kg | Ground clearance: 3 in (w/ tracks) / 2.5 in (w/o tracks)
✔️ Mobility: Speed 3 km/h, Max 5.25 km/h; climbs stairs 8 in, gradient 41°
✔️ Performs EOD tasks, under-vehicle inspection, hazardous object handling
✔️ Sensors: Self-collision avoidance with 4 single-beam sensors
✔️ Cameras: HD tilt & zoom for inspection, reconnaissance
✔️ Tracks: Fiber-reinforced rubber, removable for wheel-only missions
✔️ Blast protection: Low center-of-mass, heavy base, optional blast shield
✔️ Chem-bio washdown, IP55, operational up to 50°C, fording depth 132 mm
✔️ Deployment: Ready in ≤5 minutes
Explosive Ordnance Disposal Robot
The Explosive Ordnance Disposal Robot measures 36 inches in length without tracks and 40 inches with tracks installed. At stowed position, the unit stands 29 inches tall and weighs 180 kilograms with batteries included. The robot features a reinforced rubber track system enclosing six internal rubber wheels. This modular design allows operators to remove tracks and operate on wheels alone for specific mission requirements. Ground clearance measures 3 inches with tracks and 2.5 inches without them.
The robot operates at 3 kilometers per hour in forward and reverse modes, reaching maximum speed of 5.25 kilometers per hour. It features a high-definition camera with tilt and zoom capabilities for remote inspection and surveillance. Four collision avoidance sensors—two forward and two rear single-beam units—protect the robot from self-inflicted damage. The device deploys in five minutes or less and withstands operational temperatures up to 50 degrees Celsius. IP55 ingress protection and Chem-Bio washdown capability ensure durability in contaminated environments. The robot navigates 8-inch stairs, 41-degree gradients, 30.5-centimeter vertical obstacles, and maintains 30-degree minimum side tilt stability.
The Explosive Ordnance Disposal Robot operates in urban search and rescue missions, suspects package neutralization, and under-vehicle inspection scenarios. Law enforcement teams deploy it for hazardous area reconnaissance without risking personnel. Military EOD units employ the manipulator arm for disarming devices and collecting evidence. First responders use the HD cameras to assess dangerous situations before engagement.
Tactical Supply Pakistan supplies this USA-manufactured robot with proven reliability in high-stakes operations. Their commitment to safety-critical equipment means operators receive systems tested for real-world performance and durability standards.
Can this EOD Robot withstand blast forces during detonation control?
Yes, the unit’s 180-kilogram weight combined with its low center of mass and stable base design resists flipping. An optional blast-resistant shield diverts and deflects explosive forces, providing additional protection during EOD missions.
