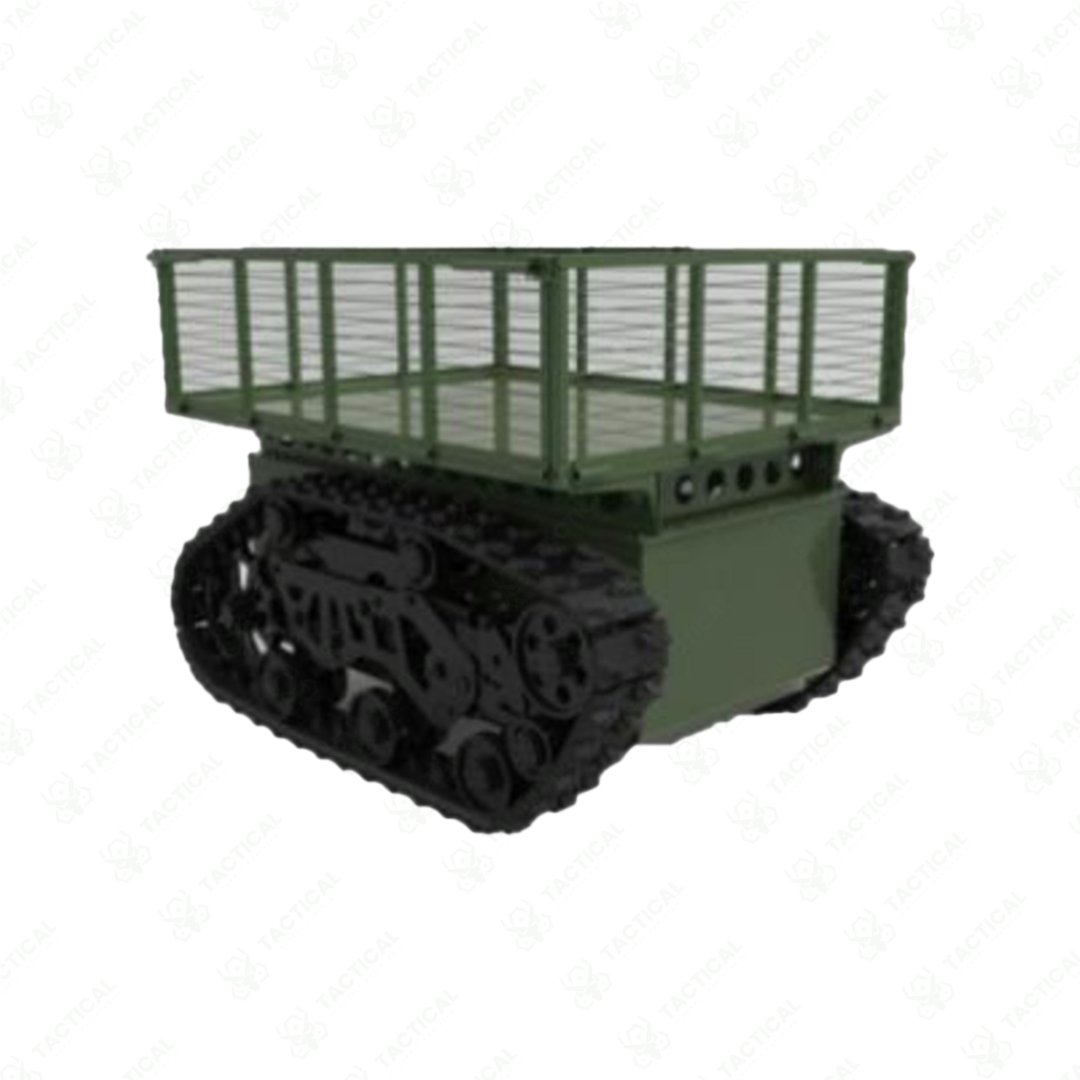

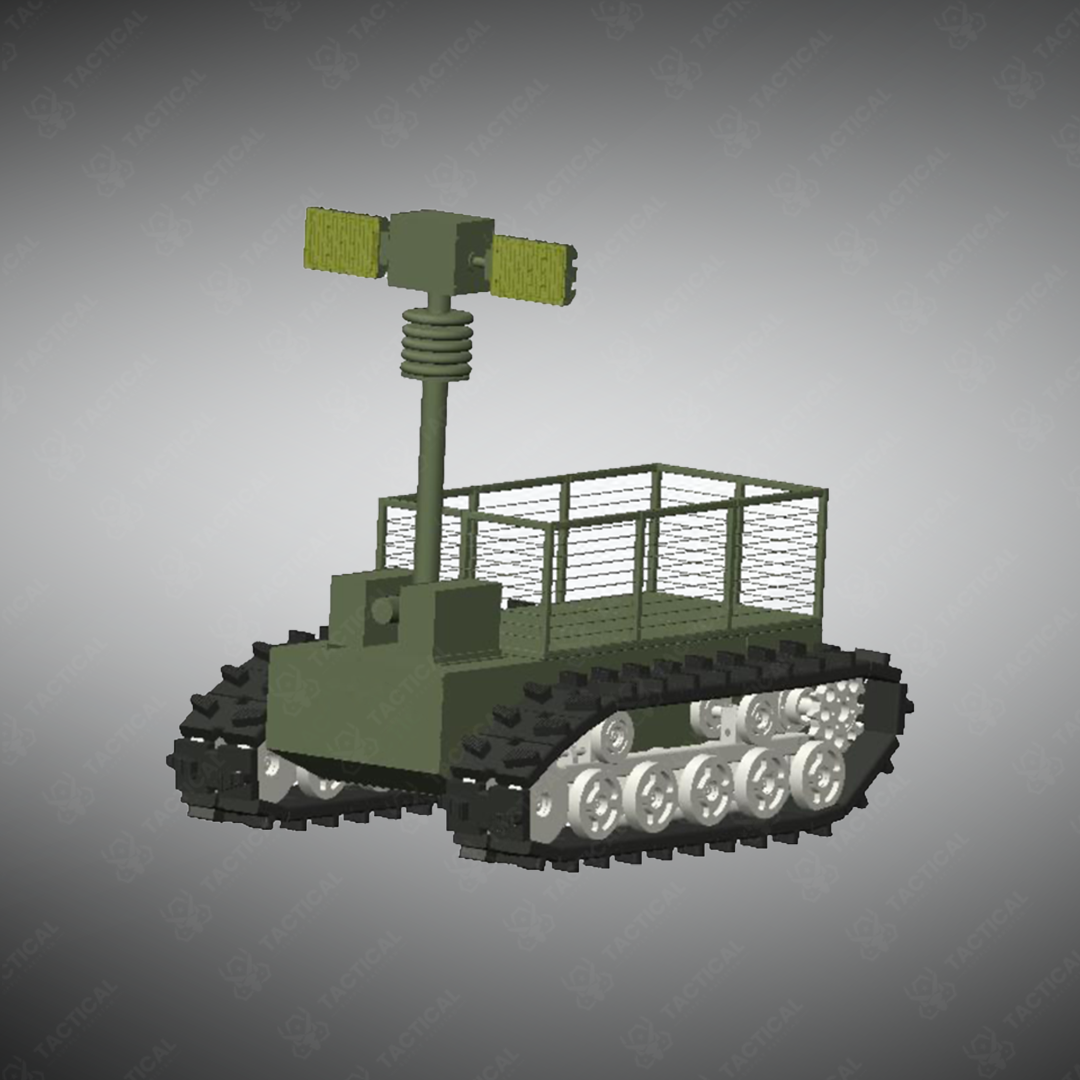

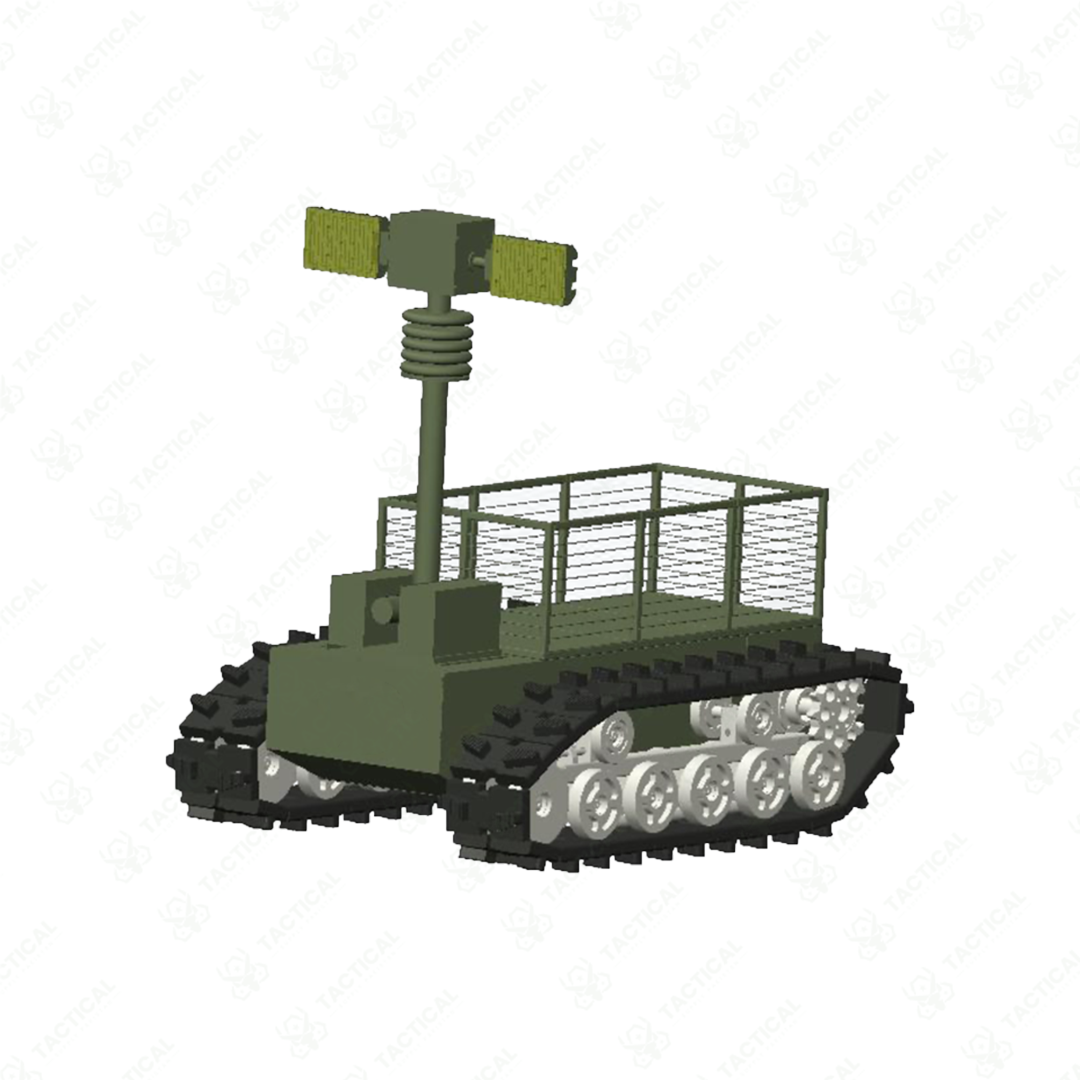

YAK Unmanned Ground Vehicle (UGV YAK)
YAK Unmanned Ground Vehicle (UGV YAK) – A next-generation autonomous hybrid platform engineered for military, defense, and disaster-response operations across all terrains.
Key Features:
✔️ Hybrid electric propulsion for silent and extended missions.
✔️ Modular chassis supports up to 400 kg of interchangeable payloads.
✔️ Independent suspension with 280 mm ground clearance for rough terrain.
✔️ GPS-assisted autonomous navigation and secure 5 km remote control.
✔️ Up to 8 hours battery endurance in full electric mode.
✔️ Lightweight aluminum-magnesium frame with sealed, weatherproof joints.
✔️ Climbs 30° slopes and handles 35° approach angles under full load.
✔️ Operates reliably from –25 °C to +50 °C.
✔️ Ideal for reconnaissance, logistics, CBRN, and explosive transport missions.
YAK Unmanned Ground Vehicle (UGV YAK)
The YAK Unmanned Ground Vehicle (UGV YAK) measures 1600 millimeters in length, 1130 millimeters in width, and 1000 millimeters in height with a fully loaded operational weight of 450 kilograms. The platform features all-wheel drive hybrid electric propulsion with independent suspension on each axle for terrain stability. Its modular chassis uses aluminum-magnesium alloy construction supporting up to 400 kilograms of mission equipment through quick-change payload attachment points. Sealed bearings and grease-packed joints protect drivetrain components in dusty and wet environments.
The YAK UGV operates via silent electric drive or hybrid combustion-electric modes for extended field missions. Maximum speed reaches 35 kilometers per hour on paved surfaces and 18 kilometers per hour across uneven terrain. Ground clearance stands at 280 millimeters with 35-degree approach angles. Gradeability capability reaches 30-degree slopes carrying full payload weight. Battery runtime extends to eight hours on electric mode with 2.5-kilowatt average power draw during normal transit. Operating temperature range spans -25 to +50 degrees Celsius. Remote control operates through secure 5-kilometer line-of-sight RF link or autonomous GPS waypoint following.
Field personnel deploy the YAK Unmanned Ground Vehicle (UGV YAK) across border reconnaissance, mine detection support, chemical-biological surveillance, and contaminated zone transport. Tactical units position the platform ahead of dismounted patrols for route clearance verification. Emergency services utilize payload variants equipped with thermal imaging or chemical sensors. Law enforcement agencies operate the system during high-risk building searches. Desert and mountainous operations benefit from low ground pressure track geometry preventing surface collapse on soft sand or snow.
Tactical Supply Pakistan supplies the YAK UGV with field-ready configurations and integrated operator training for immediate deployment across diverse operational theatres. Lightweight design ensures transportability by helicopter, aircraft, or ground convoy.
How does the hybrid system balance silent reconnaissance with extended operational range?
Lithium-polymer batteries enable six hours of silent electric operation, while an onboard diesel generator activates during high-power phases, extending total mission runtime to twelve hours without refueling.
