Neutron Measuring Instrument

Neutron Measuring Instrument

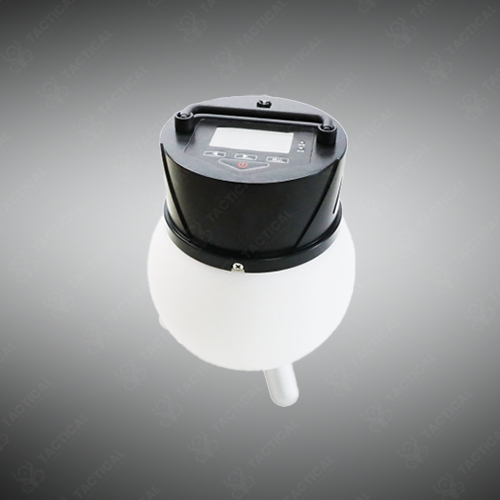

Neutron Measuring Instrument utilizes heavy metal-doped plastic scintillator detector technology for continuous neutron flux and dose rate monitoring across thermal to fast neutron energy ranges. This compact unit weighs approximately 100 grams and delivers 30 counts per second per μSv/h sensitivity referenced to Cesium-137 equivalent response. The detector measures ambient dose equivalent rates from 0.01 μSv/h to 1 mSv/h with cumulative dose tracking from 50 nSv to 10 mSv. Energy response covers 15keV to 10MeV with measurement error not exceeding ±5%.

The instrument operates between -30°C and +50°C with humidity tolerance below 95% and IP54 environmental protection rating. Built-in lithium battery supports 12 hours continuous operation with DC 5V recharging capability. Light alarm indicators activate when dose thresholds exceed programmed limits. The device captures pulsed neutron events and stores measurement data for post-incident forensic analysis. Energy response errors range from ±25% in the 60keV-3MeV band to ±50% at 3-10MeV energies.

Military nuclear weapons inspection teams deploy the Neutron Measuring Instrument during warhead authentication procedures and fissile material verification protocols at strategic weapons storage facilities. Naval submarine reactor operators utilize these detectors to monitor neutron leakage around shielding penetrations and verify containment effectiveness during power operations. Air force nuclear munitions handlers carry the instrument during transport operations and loading sequences to detect neutron emissions indicating criticality approach conditions. Explosive ordnance disposal specialists employ this detector when investigating suspect nuclear devices or radiological dispersal weapons.

Tactical Supply Pakistan supplies neutron detection equipment essential for nuclear security operations and radiological threat assessment in tactical environments requiring portable monitoring solutions.

Can this instrument differentiate between gamma radiation and neutron emissions in mixed radiation fields?
No, the scintillator responds to both gamma and neutron radiation; dedicated neutron-only detection requires specialized helium-3 or boron-lined proportional counters with gamma discrimination circuitry not present in this configuration.
