GatorCam4 PushRod Pipeline Inspection System
Rugged pushrod pipeline inspection system designed for high-quality video inspection of domestic and industrial pipes, offering flexible camera options, long push distances, and on-site reporting capabilities.
Key Features:
✔️ High-resolution stainless-steel cameras (25 mm and 50 mm) for clear pipe inspection
✔️ Self-levelling 50 mm camera keeps video upright during navigation
✔️ Pushrod reels available from 30 m to 150 m for short and long inspections
✔️ Ultra-bright 8″ TFT display for clear viewing in all lighting conditions
✔️ One-touch recording of digital video and still images
✔️ Integrated lithium-ion battery (GatorCam4+) for cable-free operation
✔️ USB and Compact Flash support for easy data storage and transfer
✔️ Compatible with sondes and accessories for accurate camera locating

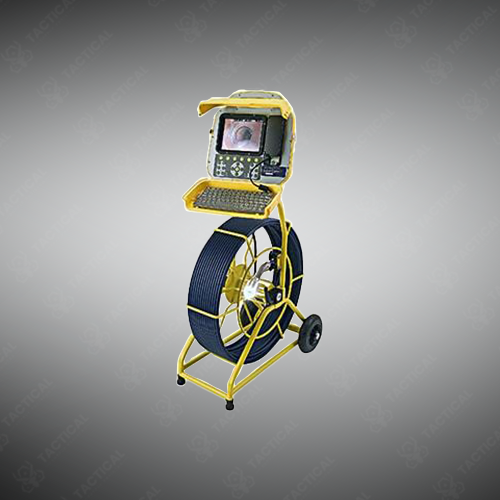

GatorCam4 PushRod Pipeline Inspection System
The GatorCam4 PushRod Pipeline Inspection System features ruggedized controllers with an 8-inch TFT display and single-button digital video recording capability. Camera options include 1-inch and 2-inch diameter units constructed from 303 stainless steel with pressure ratings of 11 bar. The 2-inch camera incorporates self-leveling technology maintaining upright video orientation during pipe navigation. Five reel configurations range from the 100-foot Plumbers reel to the 500-foot Specialist reel for extended push distances.
The GatorCam4+ controller variant integrates a lithium-ion battery eliminating external power requirements during field operations. Both models support USB flash drives and Compact Flash cards for data storage and transfer. Focusable lenses combine with ultra-bright white LED illumination to deliver clear imaging in various pipe conditions. The Plumbers system configuration negotiates waste water traps from 2 inches and bends from 1.25 inches with its flexible built-in sonde for camera position tracking.
Municipal sewer departments deploy the GatorCam4 PushRod Pipeline Inspection System for mainline condition assessments and blockage investigations in pipes up to 9 inches diameter. Military base facilities teams use these systems to inspect drainage infrastructure serving barracks and operational buildings. Naval shipyard utilities crews rely on the waterproof cameras for examining saltwater-exposed drainage systems and bilge discharge lines. Airforce runway drainage inspection requires the extended reach capabilities of specialist reel configurations during routine maintenance surveys.
Tactical Supply Pakistan supplies this inspection platform with remaining inventory of compatible sondes, skids, and camera accessories for existing system operators requiring replacement components.
What reporting capabilities does the onboard system provide?
The controller automatically organizes inspections by client, site, and survey with pre-installed customizable reporting tools. Operators can complete observation reports on-site and generate SEWER.DAT files without computer connection.
