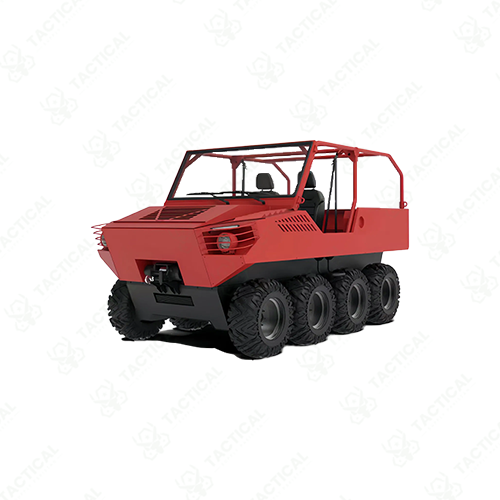

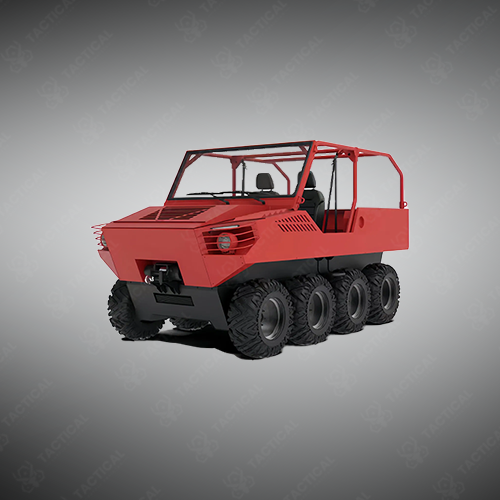

8 X 8 Amphibious Range Extended EV
A hybrid amphibious utility vehicle built for reliable logistics and mobility across land, water, and extreme terrain where conventional vehicles cannot operate.
Key Features:
✔️ 8×8 full-time drive with dedicated land and water modes
✔️ Amphibious capability for rivers, wetlands, and flooded terrain
✔️ Range-extended hybrid system with gasoline engine + EV drive
✔️ Payload capacity: up to 1,000 kg on land, 800 kg on water
✔️ Maximum speed up to 60 km/h on mixed terrain
✔️ High ground clearance (250 mm) for obstacle negotiation
✔️ Modular cabin and cargo box with 2.5 m³ volume
✔️ On-the-go battery charging with 5 kW external power output
✔️ All-terrain tires and hydraulic disc braking for control and safety
8 X 8 Amphibious Range Extended EV
The 8 X 8 Amphibious Range Extended EV measures 3,600 by 1,800 by 1,950 millimeters with a wheelbase of 762 millimeters across three axles and a ground clearance of 250 millimeters. It features an 85-horsepower gasoline extended-range hybrid power system combining a 1,499-cubic-centimeter inline four-cylinder engine with high-rate ternary lithium batteries and a high-performance electric motor. The engine produces 87 horsepower at 5,000 RPM and 125 newton-meters of torque between 3,600 and 4,400 RPM through electronic fuel injection. The vehicle weighs 1,650 kilograms and carries 1,000 kilograms on land or 800 kilograms on water with a 40-liter fuel tank capacity.
The 8×8 motor drive system powers all eight wheels through an electronic knob shift transmission offering Park, Reverse, Cruise, Drive, and Water modes. Hydraulic disc caliper brakes with pedal operation provide stopping power across 14-inch steel rims fitted with AT27x11-14 all-terrain tires. The modular platform includes a passenger compartment plus cargo box design with 2.5 cubic meters of volume. The hybrid system supports on-the-go charging and delivers 5 kilowatts of external power while driving. Maximum speed reaches 60 kilometers per hour across varied terrain.
Military logistics units deploy the 8 X 8 Amphibious Range Extended EV for equipment transportation across rivers and wetlands where conventional trucks cannot operate without bridge infrastructure. Navy construction battalions rely on 8×8 amphibious carriers during beachhead operations where supply lines cross water obstacles. Army engineering corps utilize these vehicles for geological surveys in flood-prone regions where seasonal water levels restrict wheeled access.
Tactical Supply Pakistan supplies verified amphibious transport platforms engineered for operations demanding reliable performance across land and water environments where mission success depends on uninterrupted mobility.
Does the vehicle require special operator training for water mode?
Yes, amphibious operations demand certification in buoyancy management, water navigation, and emergency egress procedures to ensure safe operation during river crossings and flooded terrain transit.
