Weather Station Instruments
All-in-one ultrasonic weather sensors providing accurate wind, temperature, pressure, humidity, and optional rain data for marine, land, and mobile applications.
Key Features
✔️ Ultrasonic wind speed and direction measurement with no moving parts
✔️ Air temperature and wind chill readings for precise environmental monitoring
✔️ Barometric pressure and optional relative humidity for comprehensive data
✔️ Optional rain sensing for land-based monitoring applications
✔️ Heated variants designed for cold or icing conditions
✔️ Rugged, water-resistant housings suitable for marine or mobile use
✔️ NMEA 0183 and NMEA 2000 compatible outputs for seamless system integration
✔️ Compact, lightweight design for easy installation and minimal maintenance
Weather Station Instruments
The Weather Station Instruments employ ultrasonic sensing technology with zero moving parts to measure wind speed, wind direction, air temperature, barometric pressure, and relative humidity. These all-in-one devices eliminate mechanical anemometer cups and vanes, removing failure points caused by bearing wear or corrosion. Housing designs meet IPX6 or IPX7 water ingress protection standards depending on model variant. Data outputs transmit through NMEA 0183 and NMEA 2000 protocols for integration with navigation systems and data loggers.

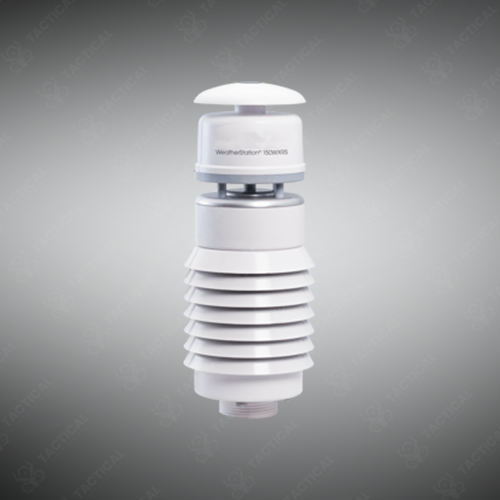

Model 110WX provides standard atmospheric measurements including wind speed, temperature, and barometric pressure for general installations. The 150WXRS variant adds ultrasonic rain intensity and accumulation sensing for land-based meteorological stations. Model 200WX delivers marine-grade construction for vessel mounting and mobile platform deployment. The 220WXH heated version incorporates thermal elements preventing ice accumulation on sensor surfaces during freezing conditions. Solar radiation shields on select models reduce thermal errors in air temperature readings. Compact dimensions and lightweight construction simplify mast or pole mounting procedures.
Naval surface combatants install Weather Station Instruments for real-time atmospheric data supporting flight operations and weapon system calculations. Military airfield operations integrate the sensors for runway wind monitoring and aircraft approach guidance. Army field artillery units deploy portable weather stations with these instruments for ballistic trajectory corrections. Air force meteorological teams utilize heated variants at arctic installations where conventional mechanical sensors fail in extreme cold.
Tactical Supply Pakistan stocks multiple WeatherStation variants for defense and commercial weather monitoring requirements. The company supports installation planning and protocol configuration for system integration projects.
How do ultrasonic wind sensors maintain accuracy without mechanical calibration?
Ultrasonic sensors calculate wind velocity by measuring transit time differences of sound pulses across multiple axes, eliminating drift associated with mechanical bearing friction or cup deformation over time.
