200m Mini Altimeter
Ultra-compact altimeter kit delivering precise underwater height measurements with high accuracy, low power consumption, and configurable data output for marine and unmanned vessels.
Key Features
✔️ Measures height above the sea floor and underwater structures up to 1,000 m
✔️ 99.4% accuracy at 5.8 m for reliable depth readings
✔️ Available in 170 kHz or 200 kHz for application-specific performance
✔️ Low power consumption at 150 mA @ 12 V ideal for power-limited vessels
✔️ Configurable sounding and data output rates in manual or full-auto mode
✔️ NMEA 0183 output via RS232 or RS422 for seamless system integration
✔️ Compact and lightweight design optimized for USVs and AUVs

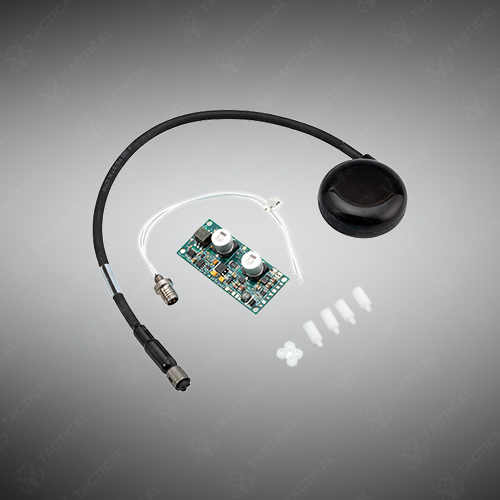

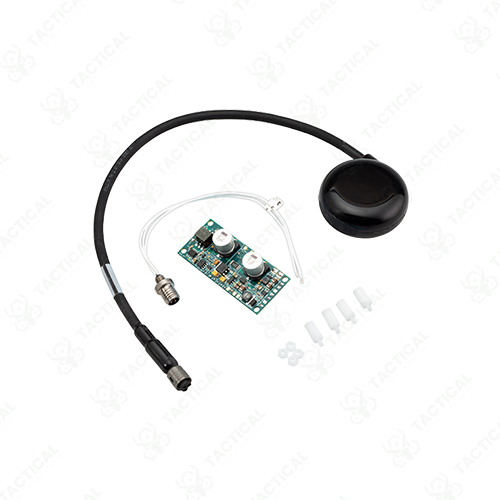

✔️ Kit includes transducer, transceiver board, bulkhead connector, mounting hardware, and optional water temperature sensor
200m Mini Altimeter

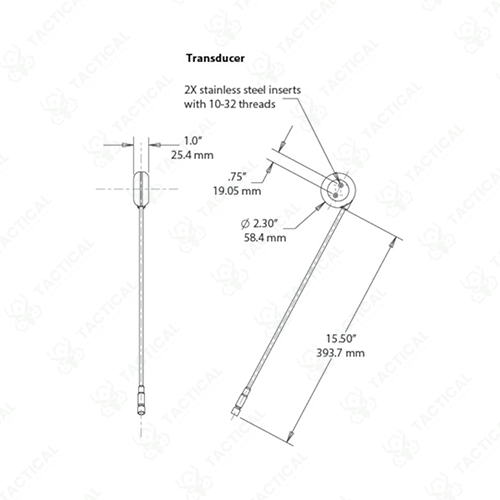

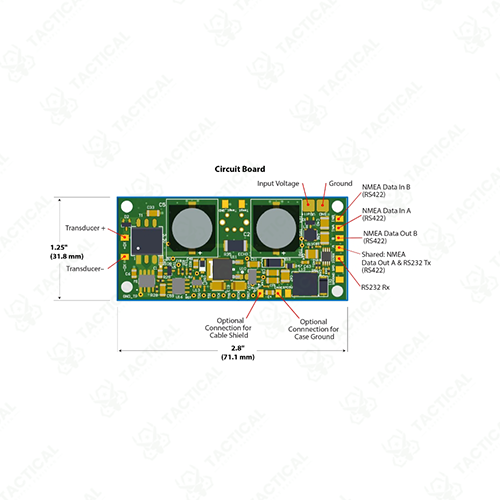

The 200m Mini Altimeter measures altitude above seafloor surfaces and underwater structures using ultrasonic sonar technology at selectable frequencies of 170 kHz or 200 kHz. This compact system achieves 99.4% accuracy at 5.8 meters with pressure ratings certified to 1,000 meters depth. Power consumption remains at 150 mA during 12-volt operation, making the unit suitable for energy-limited autonomous platforms. The complete kit contains a pressure-rated transducer with 39.4 cm cable assembly, matching bulkhead connector, transceiver board with mounting hardware, and wiring documentation.
Operating modes include full auto with variable sounding rates adjusting to depth changes, and manual configuration supporting up to 10 pings per second. Manual mode synchronizes ping rate with data output rate, producing one depth measurement per acoustic pulse. Full auto mode allows configurable data intervals from 0.1 to 25 seconds regardless of ping frequency. The system transmits NMEA 0183 serial protocol through RS232 or RS422 interface connections.. Lightweight construction and minimal form factor optimize installation in confined hull spaces.
Unmanned surface vessels conducting hydrographic surveys deploy the 200m Mini Altimeter for bottom-tracking during autonomous mapping missions. Navy autonomous underwater vehicles use these altimeters for terrain-following navigation in coastal survey operations. Marine research institutes install the system on remotely operated vehicles for underwater archaeology site documentation. Military mine countermeasure units integrate the altimeter into robotic platforms for seabed object detection and clearance verification.
Tactical Supply Pakistan supplies this altimeter system for underwater platform manufacturers and research organizations requiring precise depth-off-bottom measurements in compact configurations.
Does the altimeter require manual range gating adjustment when transitioning between shallow and deep water?
No, full auto mode automatically adjusts range gates and sounding intervals based on detected bottom distance, eliminating manual reconfiguration during depth transitions.
