VNIR Low Light Imaging System
High-performance VNIR low-light imaging system delivering clear 1080p visuals from dusk to moonlit conditions, built for covert surveillance, border security, and nighttime observation.
Key Features:
✔️ VNIR spectrum coverage (400–1000 nm) for true low-light visibility
✔️ f/1.4, 50mm fixed-focus optics maximize light intake in dark environments
✔️ 1920×1080 CMOS sensor outputs real-time 60 fps video
✔️ Motorized iris adjusts exposure in 0.3 seconds during sudden light changes
✔️ Ethernet-based GUI with gain, contrast, and exposure controls
✔️ IP67 ruggedized housing for dustproof and waterproof operation
✔️ Operates reliably in extreme temperatures from –30°C to +60°C
✔️ Lightweight 1.2 kg build for vehicle, tower, or tripod mounting
✔️ Maintains covert surveillance without active IR illumination
✔️ Ideal for border patrol, wildlife observation, and perimeter security
VNIR Low Light Imaging System

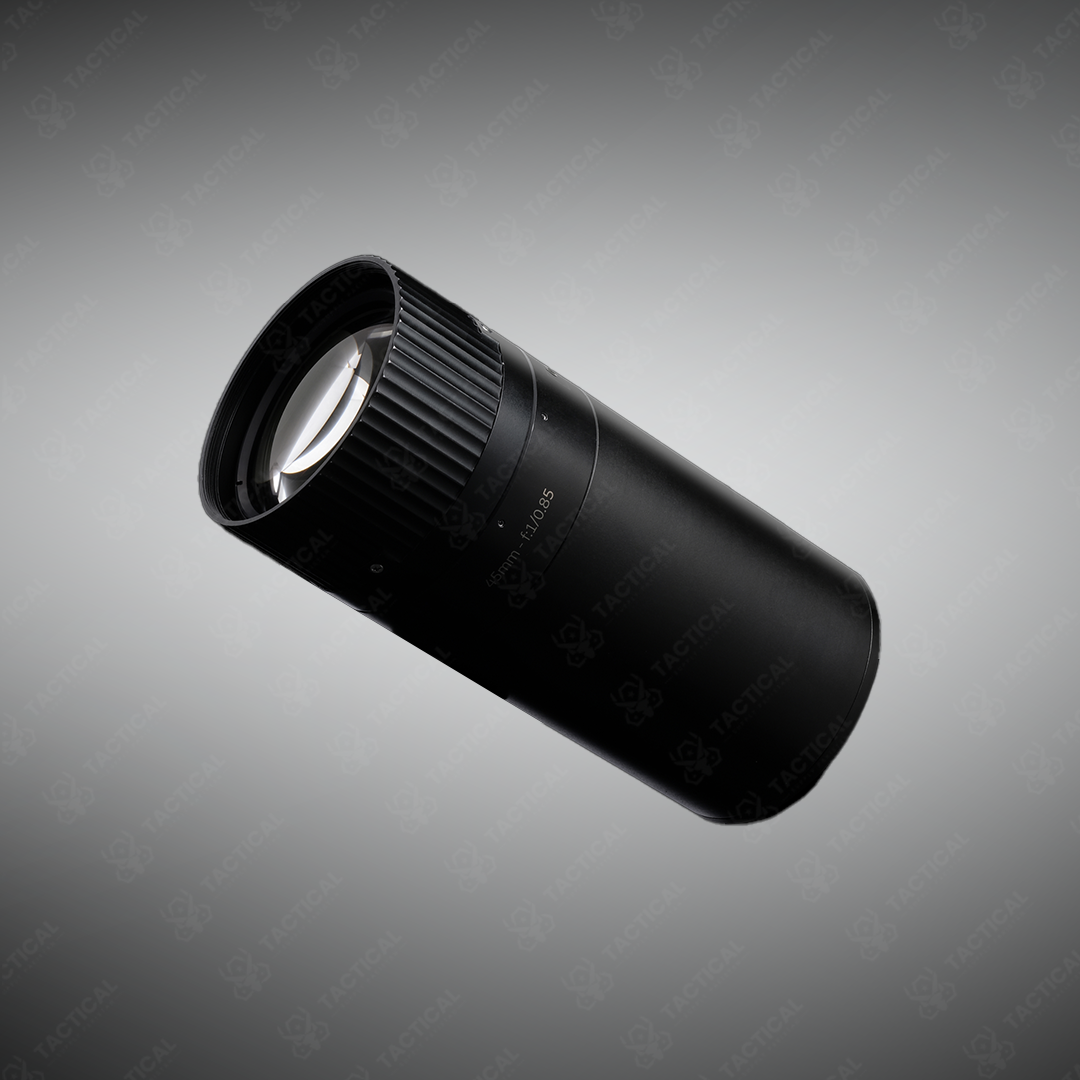

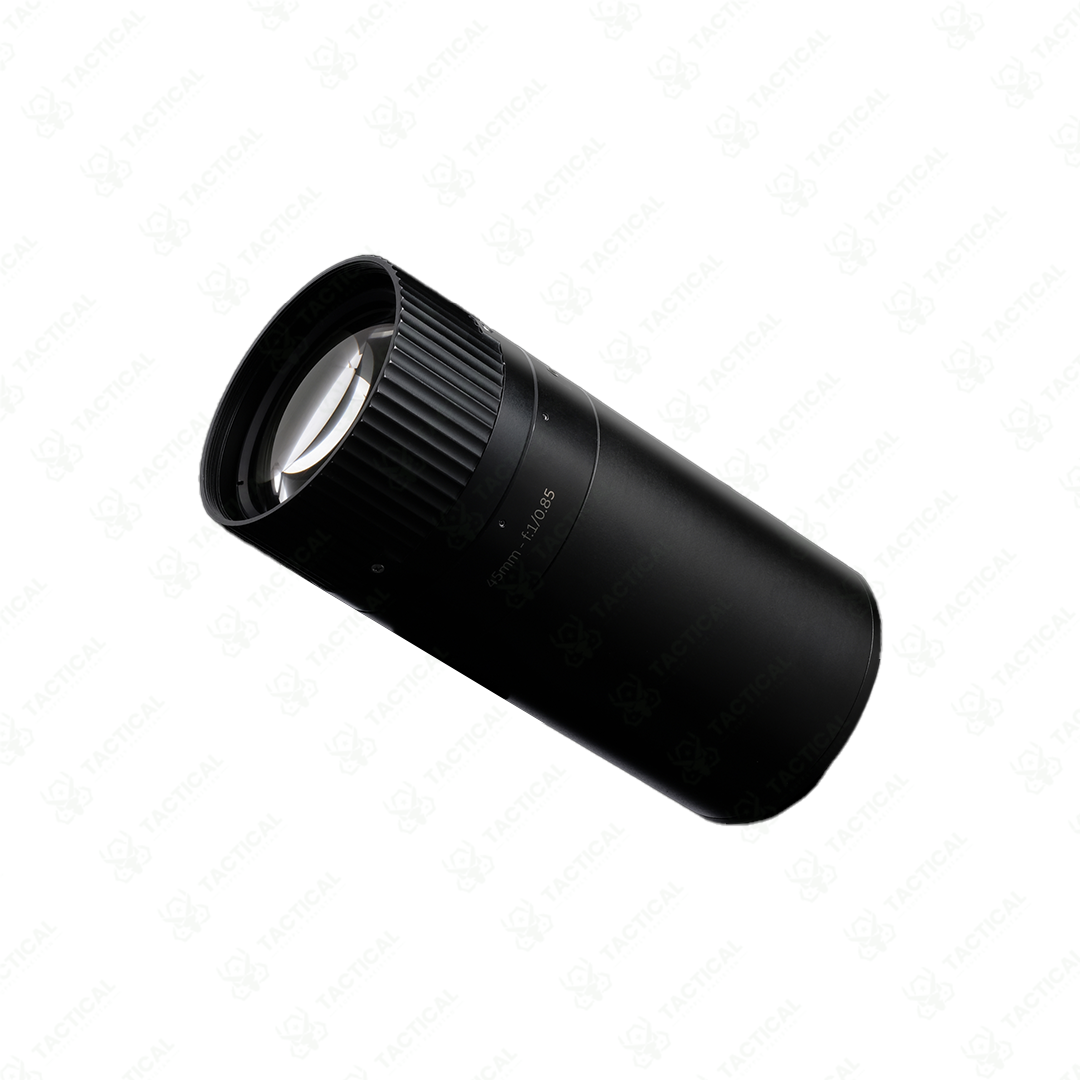

The VNIR Low Light Imaging System operates within the visible and near-infrared spectrum (400-1000nm), capturing imagery in environments with minimal ambient light. The lens assembly incorporates a fixed focal length of 50mm paired with a motorized iris that adjusts aperture settings automatically based on light availability. Its F-number rating of f/1.4 allows maximum light transmission to the sensor, enabling clear image capture during dusk, dawn, or moonlit conditions. The camera housing measures 180mm in length and weighs 1.2 kilograms, facilitating mounting on vehicle turrets, tripods, or handheld stabilizers without excessive bulk.
The sensor array includes a CMOS chip with 1920×1080 pixel resolution, delivering real-time video output at 60 frames per second. The motorized iris responds within 0.3 seconds to sudden illumination changes, preventing oversaturation when transitioning from darkness to lit areas. A graphical user interface connects via Ethernet cable to operator laptops, displaying live feeds with adjustable gain, exposure, and contrast controls. The system functions in temperatures from -30°C to +60°C, with a ruggedized enclosure rated IP67 for dust and water resistance.
Border patrol units mount the VNIR Low Light Imaging System on observation towers to monitor frontier zones during nighttime hours, identifying movement across unlit terrain without infrared illumination that reveals operator positions. Wildlife researchers use the system in conservation areas to document nocturnal animal behavior, recording feeding patterns and migration routes without disturbing natural activity. Security teams install it at perimeter fences surrounding industrial facilities, detecting intruders approaching under cover of darkness while maintaining covert surveillance posture.
Tactical Supply Pakistan provides this imaging system with mounting brackets and power adapters suited for field deployment, ensuring teams achieve operational capability immediately upon delivery. The company offers training sessions on GUI navigation and image optimization techniques.
Can the system record footage directly or does it require external recording devices?
The system transmits live video to connected laptops where recording software captures footage, requiring external storage for archiving operations.
