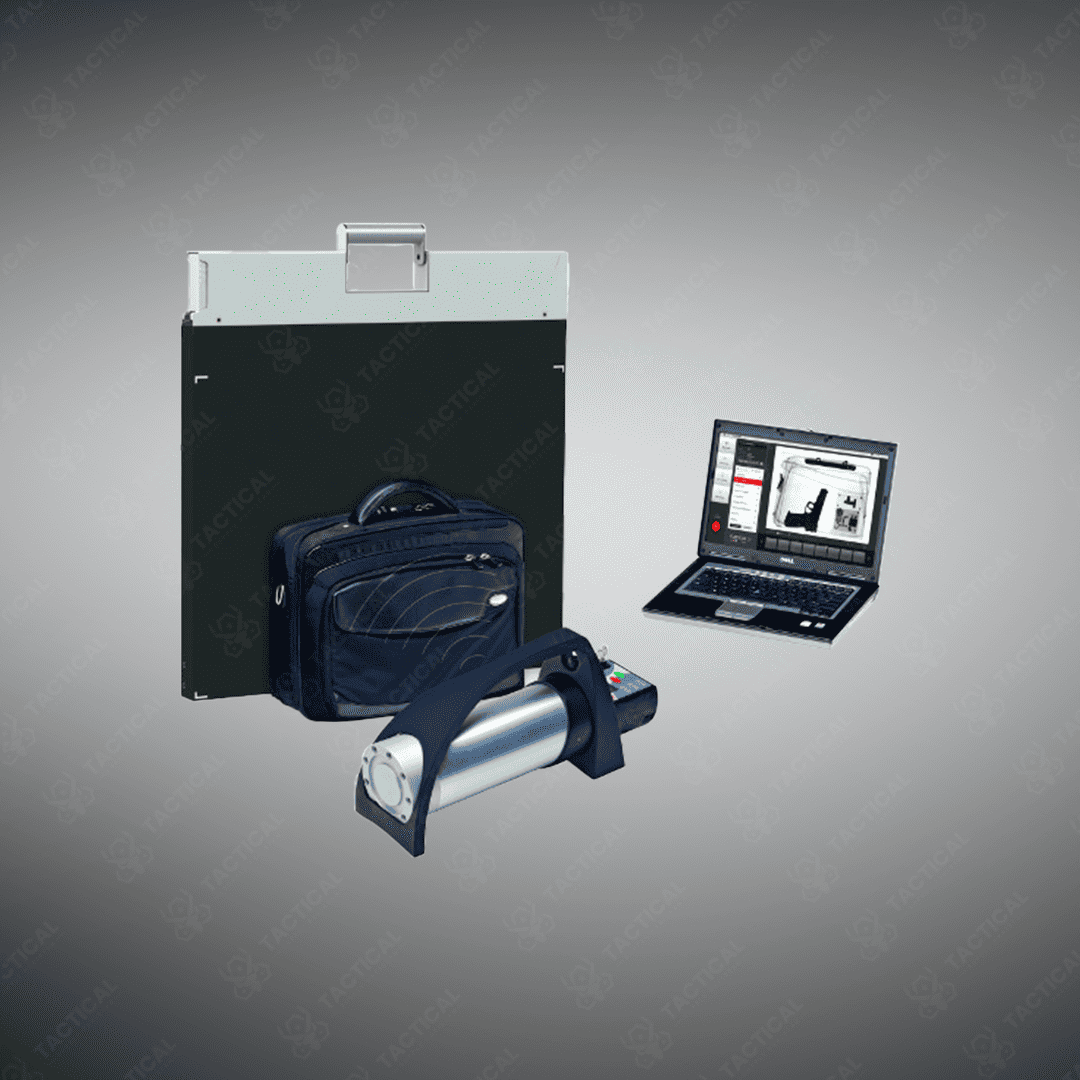

Photodiode Scanner
Photodiode Scanner is a portable, flat scanning system with an expanded 30-inch active area and advanced FPGA technology for rapid, high-resolution imaging of threats.
Key Features:
✔️ Large 30-inch diagonal scanning area with 50% more photodiodes
✔️ Ultrafast FPGA micro-controller for faster, clearer image acquisition
✔️ Innovative “3-Edge” scanning system for thorough scans of object extremities
✔️ Linear diode array sensor with 14-bit dynamic range and 40 AWG resolution
✔️ Compact, rugged design suitable for harsh RF environments
✔️ Multi-protocol communication: Bluetooth, WiFi, and cable options
✔️ Long battery life supporting hundreds of images per charge
✔️ Material discrimination technology distinguishes organic from inorganic in 5 seconds
✔️ Ideal for EOD, security inspections, and counter-terrorism operations
✔️ Enhances threat detection at checkpoints, airports, and sensitive sites

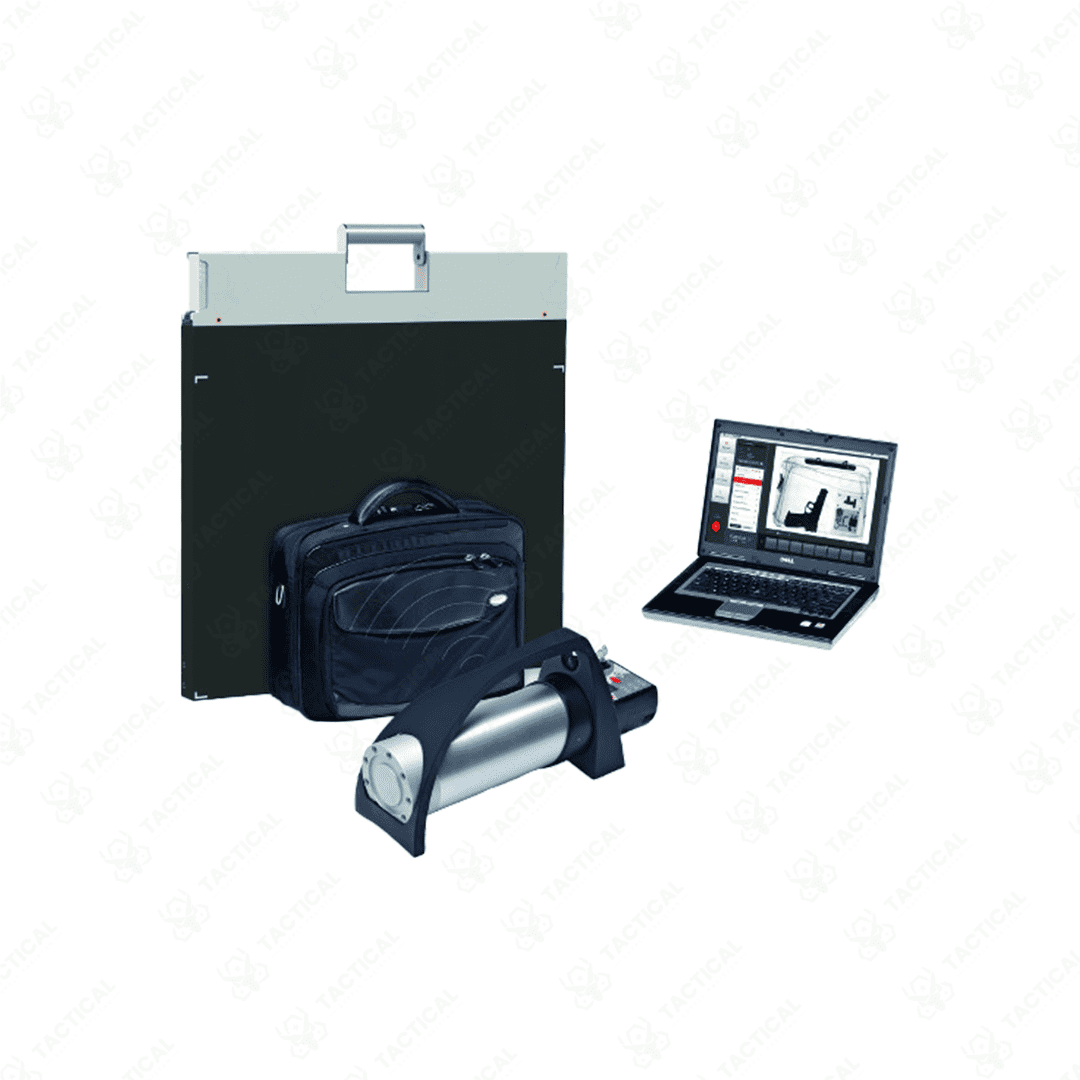

Photodiode Scanner
The Photodiode Scanner is the second generation of ICM’s innovative flat and portable photodiode scanning system. It features a 30-inch diagonal active scanning area with 50% more photodiodes and ultrafast FPGA micro-controller technology for faster, clearer image acquisition. The device is smaller in overall size yet provides a larger active area, enabling full object inspections in a single scan and reducing operator exposure to threats. It uniquely offers a “3-Edge” scanning system, allowing thorough scans up to three edges of an object’s extremity.
The scanner employs a linear diode array sensor with pixel sizes of 800 microns (optionally 400 microns) and a dynamic range of 14-bit grey levels, providing detailed resolution of 40 AWG / 1.8 line pairs per mm. Its robust design withstands harsh RF environments while remaining user-friendly with a quick boot time and multi-protocol communication including Bluetooth, WiFi, and cable options. Battery life supports capturing hundreds of images per charge, and software features enable material discrimination between organic and inorganic substances in as fast as five seconds.
The Photodiode Scanner is widely used in explosive ordnance disposal (EOD), security inspections, and counter-terrorism operations where rapid and secure threat detection is critical. Its large active scanning zone and high image quality assist military, law enforcement, and security personnel in conducting thorough yet swift inspections at checkpoints, airports, and sensitive sites, significantly reducing operational risk.
Tactical Supply Pakistan endorses this scanner as a reliable and advanced scanning tool that greatly enhances threat detection capabilities in high-risk environments through superior imaging and ergonomic design.
How does this scanner distinguish between organic and non-organic materials during scanning?
It uses hardware and software-enabled material discrimination technology to differentiate substances within five seconds, facilitating targeted threat identification.
