Portable X-Ray Systems
Portable X-Ray Systems is a compact non-destructive testing solutions combining constant-potential X-ray generators, wireless digital detectors, and advanced imaging software for on-site inspection.
Key Features:
✔️ Constant-potential X-ray generators delivering stable output from 40–160 kV
✔️ Battery-powered operation for fully mobile, off-grid inspections
✔️ High-resolution digital detectors with real-time radiographic imaging
✔️ Fine focal spot design for sharp detail in weld and defect detection
✔️ Wireless data transmission to tablets running Sherlock NDT software
✔️ Wide inspection coverage for welds, corrosion, cracks, and fatigue defects
✔️ Lightweight, cylindrical generator design for easy handling and transport
✔️ IP54-rated weather protection for field and industrial environments
✔️ Reliable performance in extreme temperatures from -25°C to +50°C
Portable X-Ray Systems

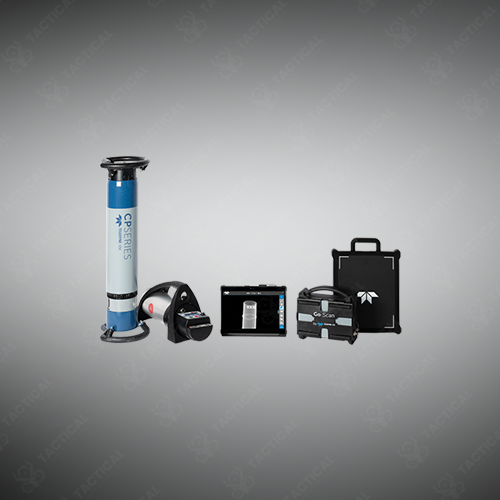

The Portable X-Ray Systems combine constant potential generators with digital detectors and Sherlock NDT inspection software for non-destructive testing applications. The CP120B generator operates at output voltages from 40 to 120 kV with tube current ranging 0.1 to 1.0 mA, weighing 7.5 kilograms in a φ124mm x 476mm cylindrical housing. The CP160B extends voltage capacity to 160 kV for penetrating thicker materials. Both battery-operated units feature 0.8mm x 0.5mm optical focal spots and IP54 weatherproofing, functioning across -25°C to +50°C operating temperatures.
GO-SCAN digital detectors capture radiographic images in real-time video acquisition mode. The GO-SCAN 3025 provides 3840×2560 pixel resolution across a 300mm x 250mm active area, while the GO-SCAN 4335 delivers 4096×3584 pixels over 430mm x 350mm imaging surfaces. These flat-panel detectors connect wirelessly to tablet computers running Sherlock NDT software that displays high-contrast images revealing cracks, corrosion, and weld defects.
Pipeline inspection crews use the Portable X-Ray Systems for examining weld joints at remote construction sites without electrical infrastructure. Aerospace maintenance facilities deploy these units to scan aircraft fuselage sections and turbine blade assemblies for fatigue cracks. Petrochemical refineries inspect pressure vessel welds and piping connections during scheduled maintenance shutdowns.
Tactical Supply Pakistan stocks portable radiography equipment that brings laboratory imaging capability to field locations. The company provides radiation safety training and assists with regulatory compliance documentation for industrial X-ray operations.
What advantage does constant potential technology provide over conventional X-ray generators in NDT applications?
Constant potential generators maintain stable voltage throughout exposure cycles, producing consistent X-ray beam intensity that reduces image noise and shortens exposure times, resulting in sharper defect detection and faster inspection throughput.
