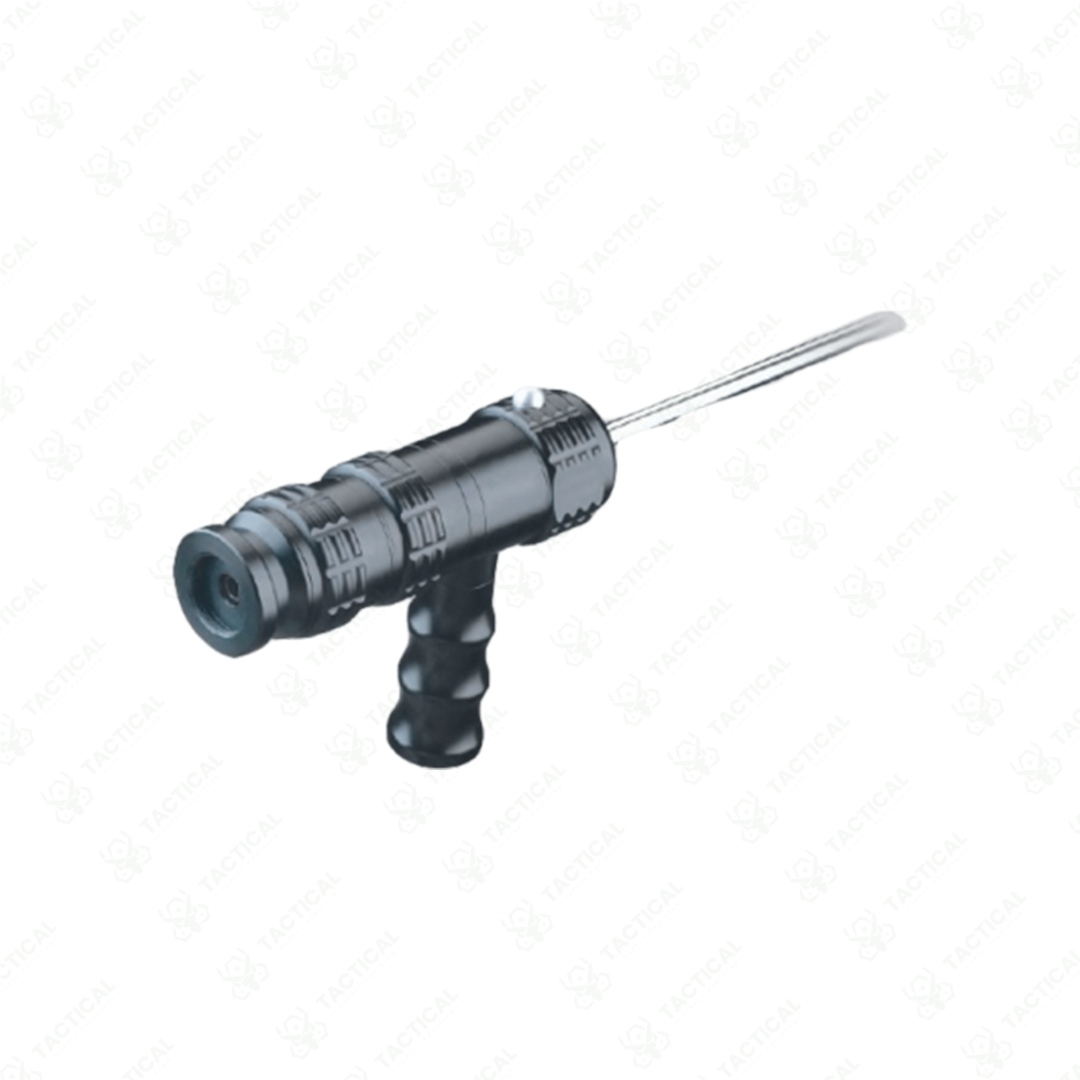

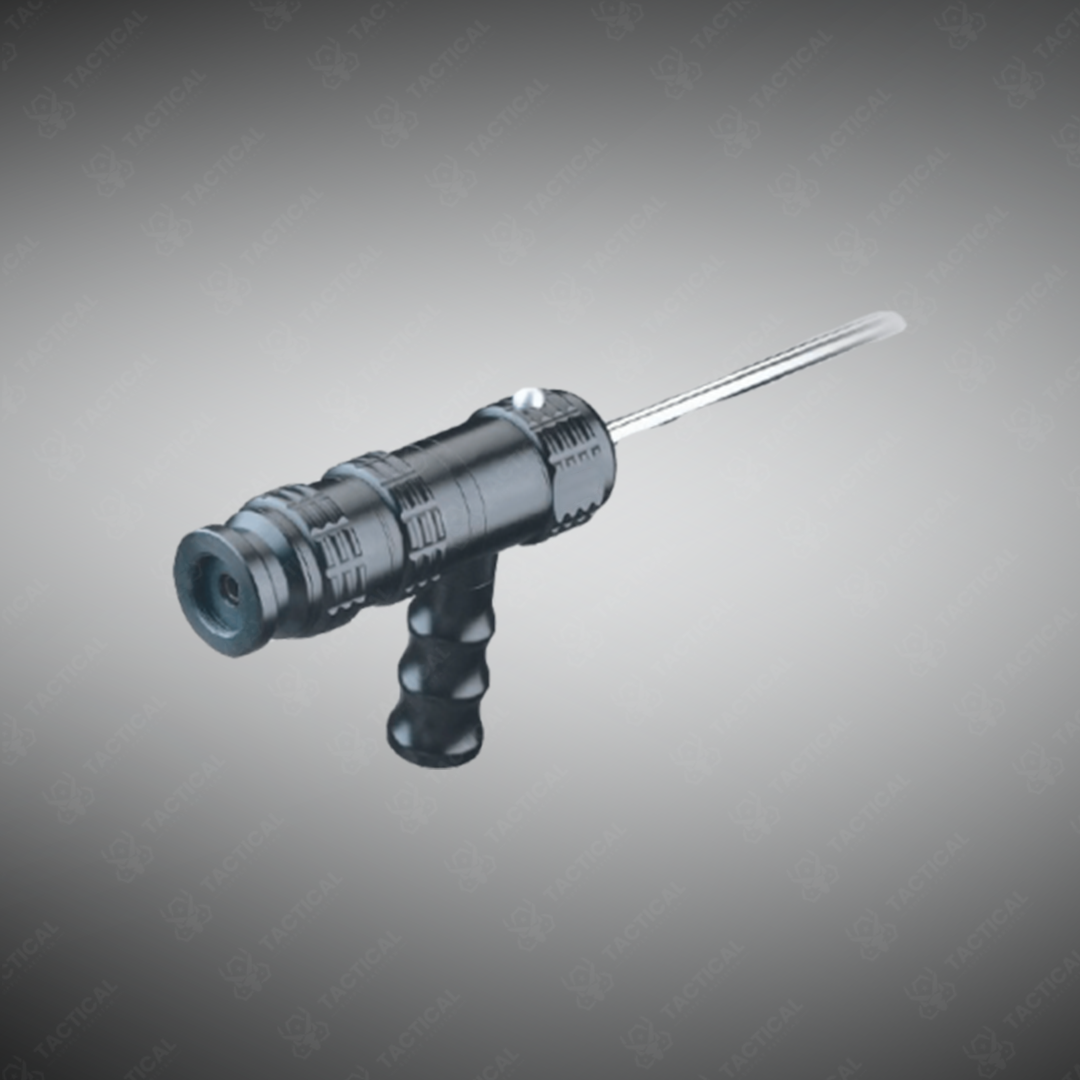

Variable Endoscope with Tilting Prism
The Variable Endoscope with Tilting Prism provides wide-range adjustable viewing angles, high-clarity optics, and full rotational control for advanced multi-angle inspection in industrial, automotive, and turbine applications.
Key Features:
✔️ Available in 6 mm and 8 mm diameters for access to tight inspection zones
✔️ Tilting prism adjusts viewing angle continuously from 45° forward to 115° backward
✔️ Control dial enables angle changes without repositioning the insertion tube
✔️ Full 370° rotational axis for complete circumferential surface examination
✔️ Manual focus system for sharp imaging at varying working distances
✔️ Multilayer-coated optics for improved light transmission and clarity
✔️ Rugged all-metal handle resistant to corrosion and field-use impacts
✔️ Ideal for pipeline weld and interior wall inspection
✔️ Suitable for automotive combustion chamber and valve-seat analysis
✔️ Effective for QC of drilled holes, cavities, turbine blades, and cooling passages
Variable Endoscope with Tilting Prism
The Variable Endoscope with Tilting Prism comes in 6 and 8 millimeter barrel diameters for accessing restricted inspection areas. A rotating prism mechanism allows operators to shift viewing angles via a control dial without moving the insertion tube. The dial ranges continuously from 45 degrees prograde to 115 degrees retrograde, providing wide angular coverage. An all-metal control handle resists corrosion and impacts during extended fieldwork.
The aiming axis rotates a full 370 degrees, enabling complete circumferential examination of cavity walls and internal components. Adjustable focus mechanics let inspectors sharpen images across varying working distances inside confined spaces. Multilayer optical coatings minimize reflection losses and improve light transmission through the complex prism path, resulting in clearer visualization of surface details and subsurface irregularities.
Pipeline maintenance crews employ the Variable Endoscope with Tilting Prism to inspect interior wall conditions and weld seams at multiple angles from a single insertion point. Automotive technicians use it to examine combustion chamber deposits and valve seat conditions. Manufacturing quality control specialists inspect precision-drilled holes and internal cavities for tooling marks or contamination. Turbine manufacturers examine blade-root attachments and cooling passages without requiring multiple device repositioning.
Tactical Supply Pakistan provides this advanced inspection solution to teams requiring versatile angular viewing capabilities in demanding industrial environments and critical infrastructure assessments.
How does the tilting prism mechanism improve inspection efficiency compared to fixed-angle endoscopes?
The tilting prism eliminates repeated insertion and withdrawal cycles, reducing inspection time and equipment stress. Operators examine surfaces at 45°, 90°, and 115° angles from a single access point, enabling comprehensive defect detection in fewer passes.
