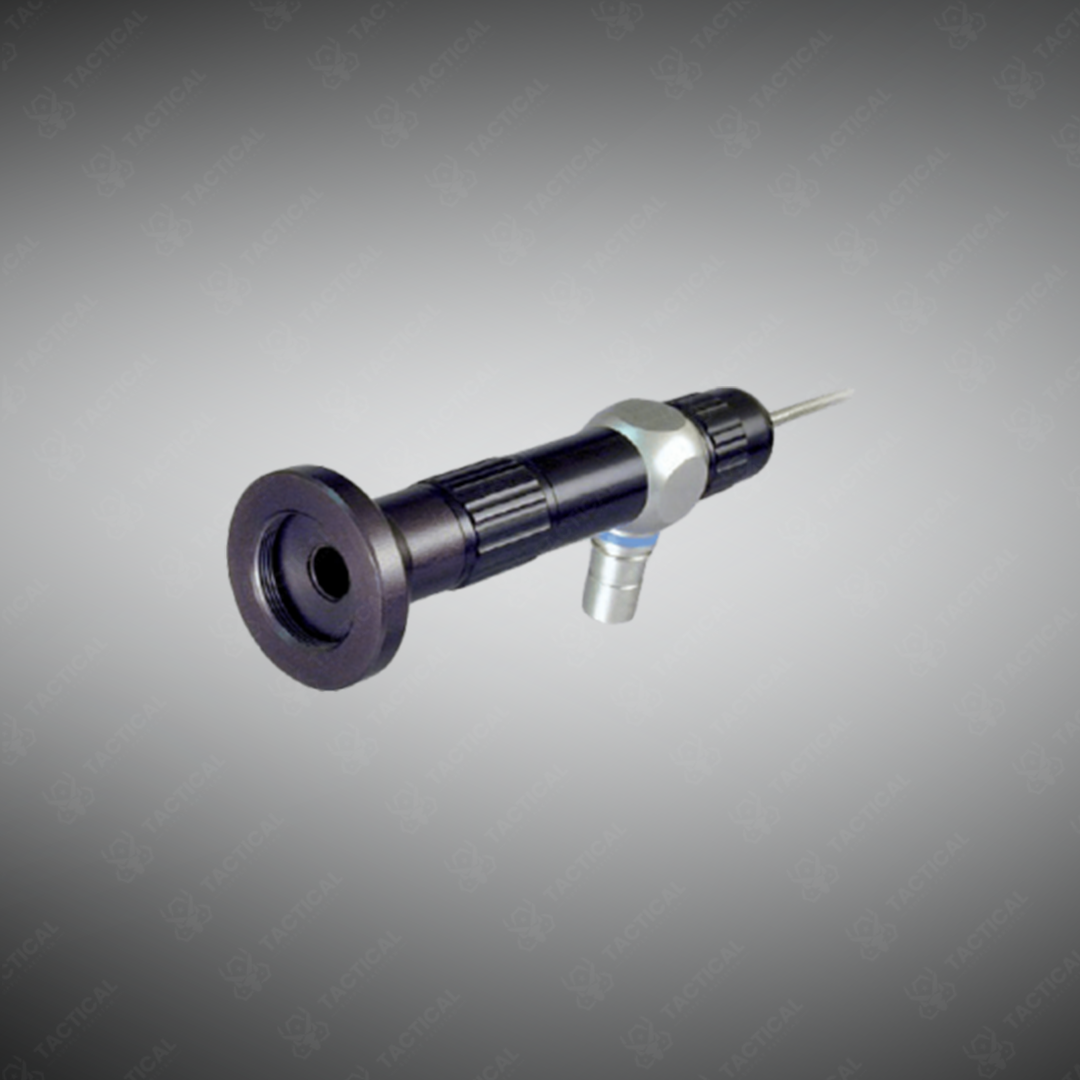

Microendoscope
The Microendoscope is an ultra-thin industrial inspection tool designed for micro-scale cavities, offering high-resolution imaging through Selfoc lenses or fiber bundles for detailed analysis of precision components.
Key Features:
✔️ Ultra-compact diameters of 1.2 mm, 1.7 mm, and 2.7 mm for micro-cavity access
✔️ Choice of Selfoc lens or high-resolution fiber-bundle optics for specific inspection
✔️ Axial and lateral viewing for forward or perpendicular surface inspection
✔️ Adjustable focus for clear imaging from contact distance to several centimeters
✔️ Multilayer optical coatings enhance light transmission and minimize reflections
✔️ All-metal handle ensures durability, structural integrity, and thermal stability
✔️ Ideal for inspecting solder joints, connectors, and fine electronic assemblies
✔️ Suitable for medical device channel inspection and micro-fluidic systems
✔️ Effective for mold gate wear detection and cooling gallery verification
✔️ Used in aerospace manufacturing for micro-drilled hole inspection
Microendoscope
The Microendoscope operates in ultra-compact barrel diameters of 1.2, 1.7, and 2.7 millimeters for inspecting micro-scale cavities and precision component interiors. Two optical technologies serve different inspection demands: Selfoc single-lens systems deliver bright, wide-field imaging through minimal space, while high-resolution fiber bundles pack thousands of individual fibers into tight packages for maximum detail capture. An all-metal control handle maintains structural integrity and thermal stability during extended use in laboratory and production environments.
Aiming options include axial forward-viewing and lateral side-viewing configurations, allowing operators to examine surfaces directly ahead or perpendicular to the insertion axis. Adjustable focus mechanics accommodate working distances from contact to several centimeters, compensating for optical aberrations at extreme magnification levels. Multilayer coatings on optical components suppress internal reflections and enhance light transmission through the intricate fiber or lens assemblies, preserving image sharpness and contrast even in dimly lit inspection zones.
Electronic component manufacturers deploy the Microendoscope to verify solder joint integrity in circuit board assemblies and inspect hairline fractures in fine-pitch connectors. Medical device producers examine internal channel cleanliness in hypodermic needles and micro-fluidic devices. Precision injection mold shops use it to detect wear patterns in gate areas and cooling gallery blockages. Aerospace suppliers inspect micro-drilled cooling holes and tight-tolerance bearing races for manufacturing defects.
Tactical Supply Pakistan delivers this specialized imaging system to quality teams requiring unprecedented access to miniature component geometries in high-stakes manufacturing sectors.
What is the practical difference between Selfoc single-lens and fiber-bundle technologies in microendoscope applications?
Selfoc lenses provide brighter, wider viewing fields suitable for cavity inspection. Fiber bundles offer superior resolution for detecting fine cracks and surface finish irregularities in precision components.
