Spotlights Searchlights for Drone
Compact drone-mounted searchlight delivering high-intensity illumination and precise beam control for night operations and emergency response.
Key Features:
✔️ Dual optical lens assemblies producing 8,000 lumens output
✔️ 16° uniform beam geometry with 150 m effective illumination range
✔️ 60 W power envelope supporting brightness modulation and strobe control
✔️ Gimbal articulation 0–85° with synchronized camera tracking
✔️ Payload SDK integration via DJI Pilot 2 for remote lighting commands
✔️ Brightness modes: continuous intensity, rapid strobing, signaling sequences
✔️ High-speed thermal management with temperature-compensated cooling fan
✔️ Quick-release bracket for easy installation/removal without tools
✔️ IP4X weatherproof rating for dust and light precipitation protection
✔️ Emergency and operational applications: search & rescue, surveillance, perimeter lighting, port inspection, wildfire guidance

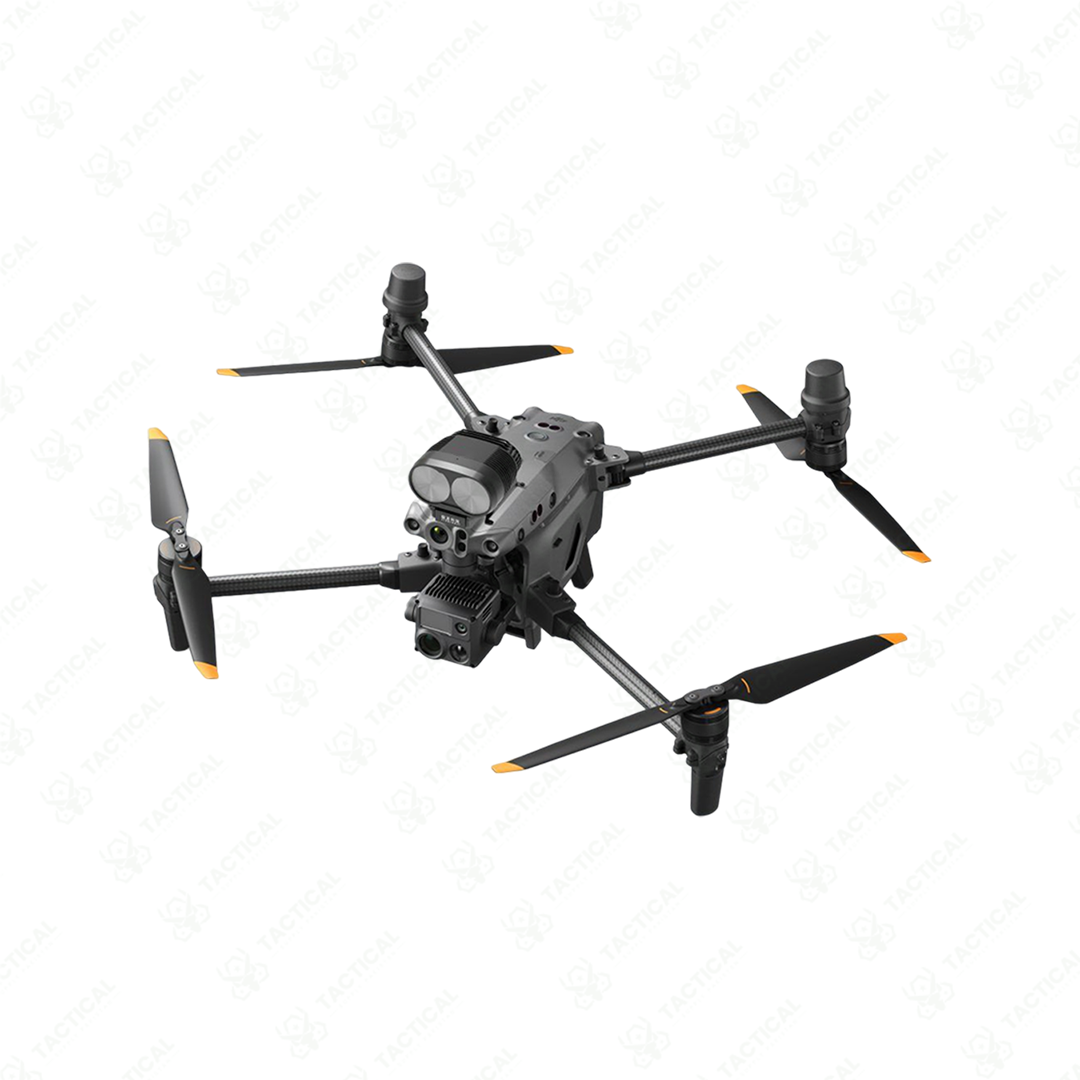

Spotlights Searchlights for Drone
The Spotlights Searchlights for Drone measures 91.4 by 88.5 by 62.2 millimeters and weighs 190 grams with IP4X weatherproof rating. Dual optical lens assemblies generate 8000-lumen output across 16-degree uniform beam geometry, delivering 150-meter effective illumination distance. A 60-watt power envelope supplies brightness modulation and strobe frequency control via Pilot 2 remote interface. Controllable gimbal articulation spans 0 to 85 degrees with synchronized camera tracking, enabling coordinated visual-lighting presentations. High-speed temperature-compensated heat dissipation fan maintains thermal stability across operating range extremes.
Payload Software Development Kit integration routes lighting commands through DJI Pilot 2 without requiring secondary wireless systems. Brightness adjustment modes support continuous intensity modulation and rapid strobing sequences for signaling and search applications. At 50-meter altitude, the searchlight illuminates 150 square meters with 46-lux central brightness. Extended range operation at 150 meters covers 1400 square meters with 7-lux minimum visibility. Quick-release bracket enables installation and removal without tools or airframe modification. Operating temperature spans minus 10 to plus 50 degrees Celsius for year-round deployment.
Emergency response teams deploy the Spotlights Searchlights for Drone to locate missing persons and guide rescue operations across nighttime terrain and disaster zones. Law enforcement conducts surveillance and perimeter security during darkness-limited tactical operations. Search and rescue coordinates ground team movements and equipment positioning using aerial illumination guidance. Port authorities inspect vessel hull conditions and cargo handling during night operations. Wildfire management teams locate fire perimeters and guide evacuation routes during nocturnal containment efforts.
Tactical Supply Pakistan supplies this integrated aerial lighting solution to public safety agencies and emergency operations requiring extended-range night illumination from enterprise drone platforms.
How does gimbal synchronization improve search operation efficiency during rescue missions?
Synchronized camera and light positioning maintains visual and illumination alignment during pan and tilt movements. Single operator controls both imaging and lighting simultaneously without managing separate pan-tilt sequences.
