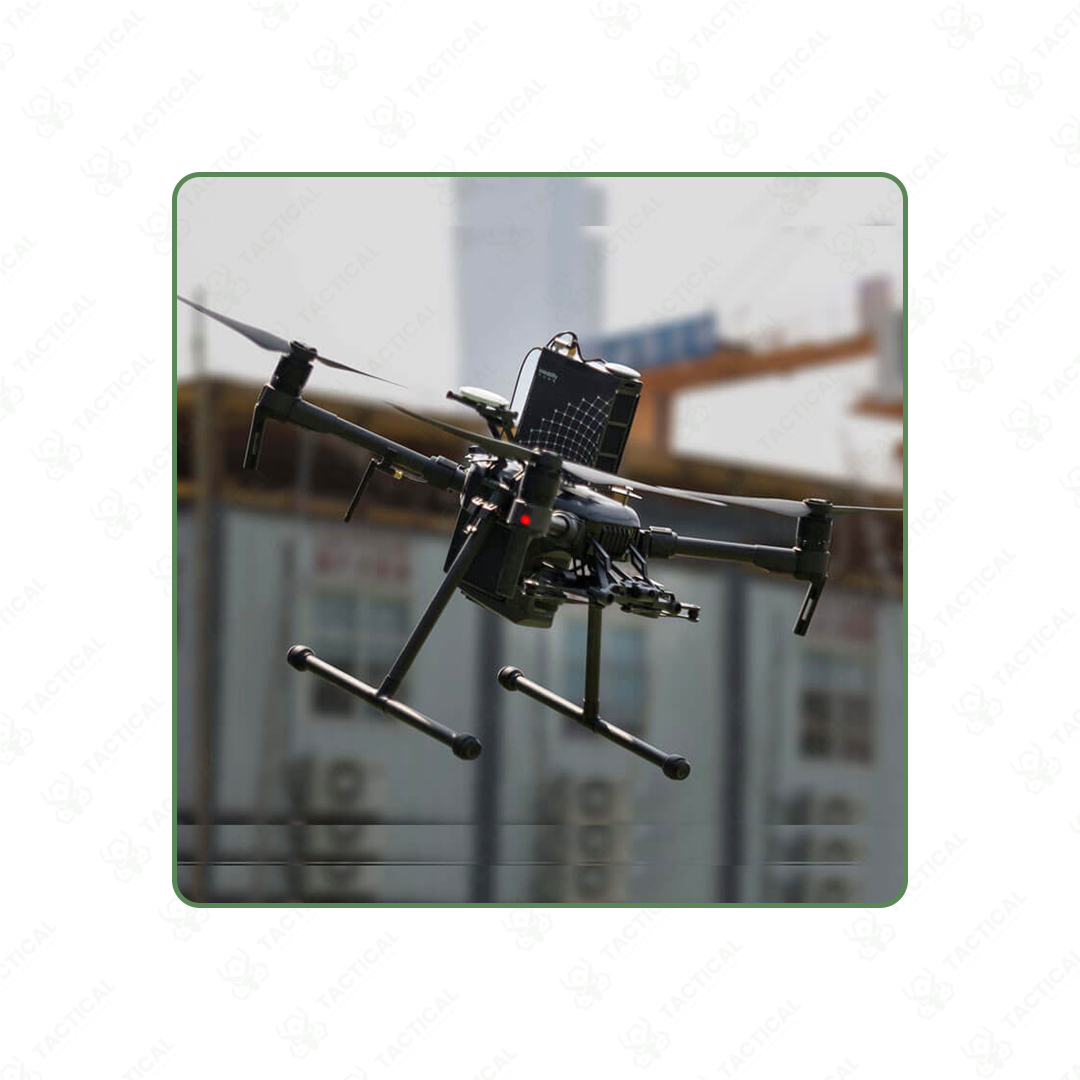

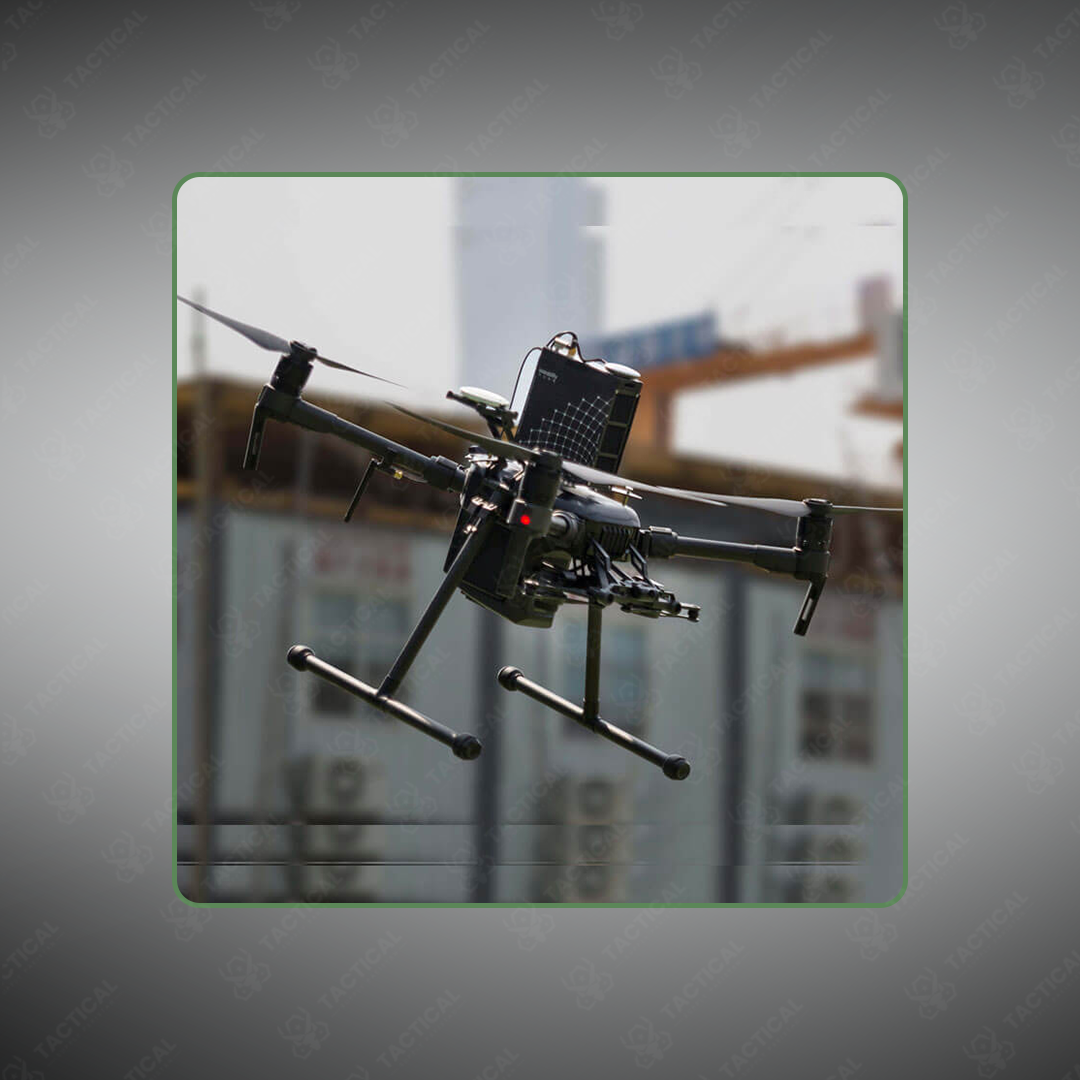

Air Environment Pollution Monitoring Sensor for Drone
High-precision aerial sensor system for real-time particulate, gas, and VOC pollution monitoring.
Key Features:
✔️ Laser-scattering PM1.0 / PM2.5 / PM10 detection down to 0.3 μm
✔️ Four-electrode electrochemical sensors for CO, NO₂, O₃, SO₂ (ppb-level)
✔️ PID VOC detection with 1 ppb sensitivity
✔️ Catalytic sensors for H₂, CH₄, LPG (0–100% LEL)
✔️ Built-in filters reduce alcohol and vapor interference
✔️ Contamination-resistant adsorbent design
✔️ Fast-response, linear-output measurement
✔️ DJI Payload SDK integration for Matrice 210
✔️ Rugged outdoor-ready construction
Air Environment Pollution Monitoring Sensor for Drone
The Air Environment Pollution Monitoring Sensor for Drone integrates laser scattering detection with electrochemical sensing arrays. Fine particle detection employs laser scattering technology with minimum resolution capability of 0.3 micrometers for PM1.0, PM2.5, and PM10 measurement. Four-electrode electrochemical sensors detect CO, NO2, O3, and SO2 at parts-per-billion resolution levels. The auxiliary electrode compensates zero-current drift, improving response timing and interference rejection compared to three-electrode systems. Photoionization detection identifies VOCs with 1 ppb sensitivity for isobutylene baseline.
Catalytic combustion sensors monitor flammable and explosive gases across 0 to 100 percent LEL ranges. The system detects hydrogen, methane, and LP gas with integrated alcohol filtering for environmental specificity. Adsorbent components minimize cross-sensitivity to organic vapors and resist silicon compound contamination. The sensor package operates stably in harsh outdoor conditions with fast response times and linear output characteristics. Built on DJI payload SDK architecture for DJI Matrice 210 compatibility.
Environmental agencies deploy the Air Environment Pollution Monitoring Sensor for Drone across industrial zones and urban areas for real-time pollution mapping. Port authorities monitor air quality near shipping lanes and cargo terminals. Municipalities assess air quality after fire incidents or chemical facility emergencies. Research institutions conduct atmospheric studies over geographically diverse regions. Factory compliance teams track emissions from processing facilities.
Tactical Supply Pakistan provides this system with full integration into the DJI enterprise platform and control infrastructure. The brand ensures seamless operation through DJI Pilot software and datalink transmission.
What sampling resolution does this sensor provide for volatile organic compounds?
The VOC detection module achieves 1 ppb minimum detection for isobutylene using photoionization principles. Real-time data streams to the control center while the drone logs GPS coordinates and timestamps for each measurement point.
