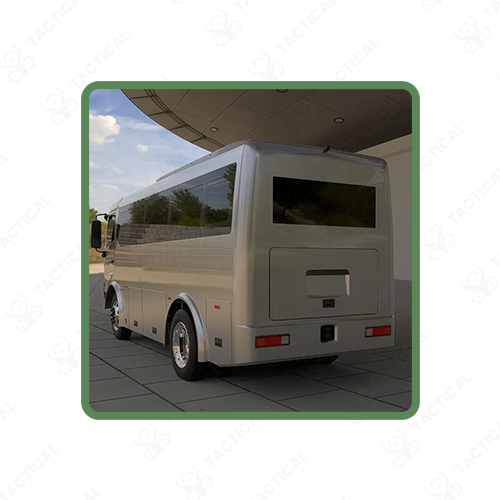

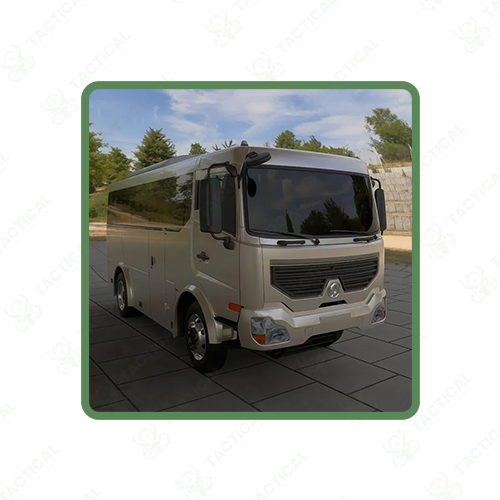

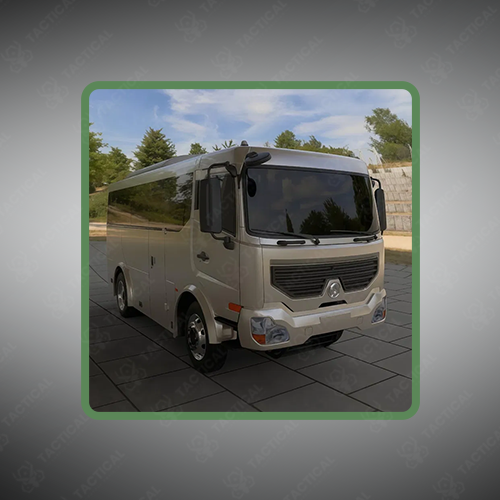

Protected Off-Road Bus
Heavy-duty 4×4 armored bus engineered for secure personnel transport in high-risk and off-road environments.
Key Features:
✔️ Full 6-sided ballistic protection with body rated to EN1522 Level B6
✔️ Roof and floor armored to EN Level B4 for multi-directional threat mitigation
✔️ Bulletproof glass compliant with EN1063 Level B6 across all windows
✔️Seats up to 23 occupants with reinforced interior safety layout
✔️ Run-flat tires and protected fuel and battery systems for survivability
✔️ Powerful turbocharged diesel engine paired with a 6-speed manual transmission
✔️ 4×4 drivetrain with high ground clearance and strong off-road capability
✔️ Long operational range and wide temperature tolerance for harsh deployments
Protected Off-Road Bus
The Protected Off-Road Bus measures 6,880 by 2,400 by 3,250 millimeters including roof-mounted air conditioning with a 3,800-millimeter wheelbase. The JJ6682 model features a Dongfeng Cummins ISDe28530 turbocharged diesel engine paired with a six-speed manual transmission delivering 110 kilometers per hour maximum speed. The 4×4 drivetrain supports a curb weight of 11,000 kilograms and gross vehicle weight of 13,000 kilograms with 2,000 kilograms maximum payload capacity including 23 occupants. The 260-liter fuel tank provides 800 kilometers driving range across operating temperatures from negative 30 to positive 46 degrees Celsius.
The vehicle provides six-sided ballistic protection with surrounding body armor meeting EN1522 Level B6 standard while floor and roof achieve EN1552 Level B4 rating. Multi-layer polycarbonate bulletproof glass windows comply with EN1063 Level B6 specifications matching body protection levels. Ground clearance reaches 300 millimeters with approach, departure, and breakover angles of 35, 18, and 17 degrees. The chassis fords 700-millimeter water depths and maintains 35-degree static rollover angle with 18.5-meter minimum turning diameter.
Military transport units deploy the Protected Off-Road Bus for troop movement in hostile territories where ambush threats require armored protection during personnel transfers between forward operating bases. Peacekeeping forces use armored buses to transport civilian populations through conflict zones during humanitarian evacuation operations. Navy shore security detachments employ protected transport for moving personnel across exposed port facilities vulnerable to sniper fire.
Tactical Supply Pakistan supplies certified ballistic protection vehicles engineered for high-risk transport missions where occupant survival depends on proven armor systems and reliable mechanical performance under combat stress.
Does the B6 armor stop rifle-caliber rounds?
Yes, EN1522 Level B6 protection withstands multiple hits from 7.62×51mm NATO full metal jacket rounds fired from rifles, providing crew protection against common military small arms threats.
