Portable Pushrod Inspection System
Portable Pushrod Inspection System – Combined Cable Avoidance Tools and signal generator for reliable detection and tracing of buried utilities before excavation.
Key Features:
✔️ Detects buried power, radio and transmitter (Genny) signals for comprehensive utility locating.
✔️ Simultaneous dual‑frequency locating finds small‑diameter cables and services with greater confidence.
✔️ Dynamic Overload Protection filters electrical interference for accurate locating in noisy environments.
✔️ Avoidance Mode scans power, radio and Genny signals in a single pass for faster survey workflows.
✔️ Depth measurement (on C.A.T4+ models) provides accurate signal depth readouts for planning and reporting.
✔️ GPS and Bluetooth connectivity (gC.A.T4+) enable usage logging, location data capture, and cloud‑based analysis.
✔️ Genny4 Signal Generator boosts output and penetration, enhancing trace signal strength over distance.
✔️ Compatible software and accessories support professional reporting, fleet management and compliance tracking.
Portable Pushrod Inspection System

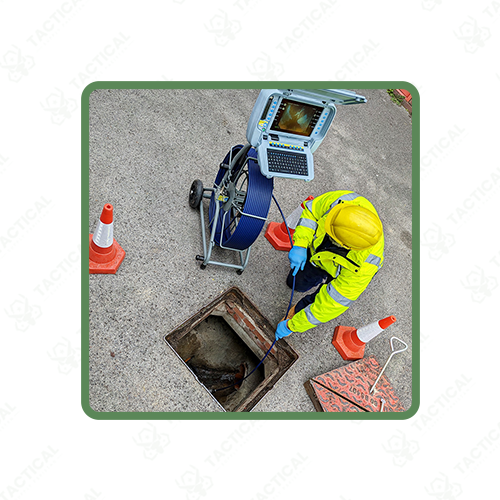

The Portable Pushrod Inspection System operates with a flexible fiberglass pushrod that extends up to 100 meters, housed in a compact rotating drum assembly. The unit features a self-leveling camera head with LED illumination rated at 512 Hz for signal detection and compatibility with sonde trackers. Its control panel integrates a 7-inch LCD monitor displaying real-time footage with distance counters that measure insertion depth in metric or imperial units. The system weighs approximately 18 kilograms and runs on rechargeable lithium-ion battery packs providing six hours of continuous operation.
The camera module delivers 640×480 resolution video output through a waterproof housing rated IP68 for submerged inspections. Pushrod diameter measures 4.8 millimeters, allowing navigation through pipelines as narrow as 50 millimeters. The rotating drum mechanism permits smooth cable deployment with adjustable tension settings to prevent kinking in curved sections. Operators control playback functions including freeze-frame capture and video recording directly to SD card storage with timestamps and location metadata.
Field engineers deploy the Portable Pushrod Inspection System for drain line assessments in municipal water departments and commercial plumbing diagnostics. Military base maintenance teams utilize this equipment to inspect ventilation ducts and underground conduit systems without excavation. Navy vessel crews examine ballast tank access ports and cooling system pipes during routine inspections. Airport facility managers assess runway drainage infrastructure and inspect cable trays within terminal buildings.
Tactical Supply Pakistan delivers this inspection system with comprehensive operator training materials and technical support for government agencies and industrial clients. The company maintains certified service centers across major cities to ensure equipment reliability for critical infrastructure projects.
Can the camera head operate in flowing wastewater environments?
Yes, the IP68-rated camera functions fully submerged in sewage lines with flow rates up to 2 meters per second, and the LED array maintains visibility through turbid conditions.
