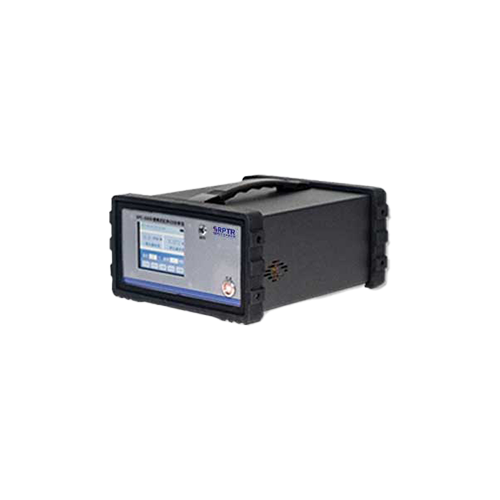

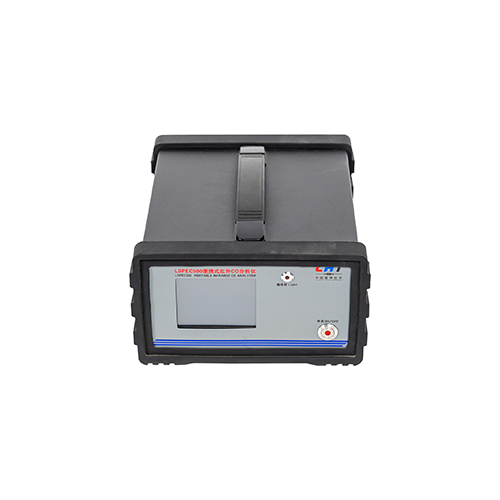

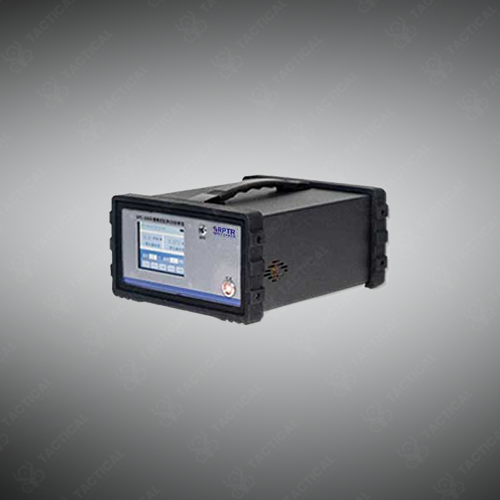

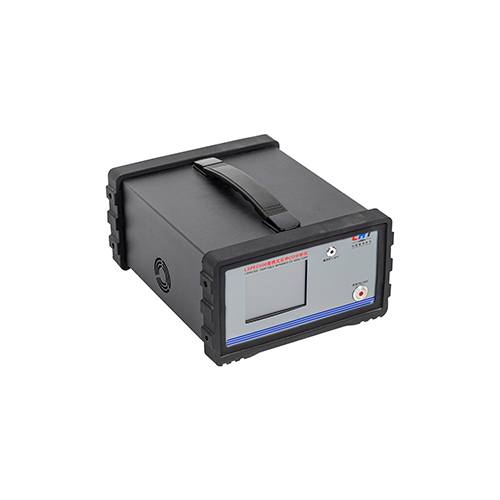

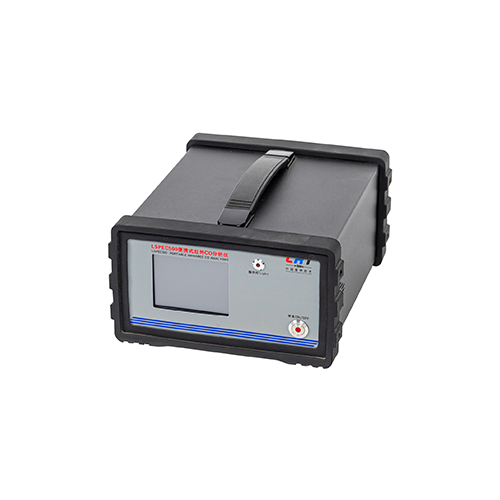

Portable Infrared CO/CO2 Analyzer
Portable infrared analyzer for precise, real-time detection of CO and CO₂ in air across industrial, environmental, and research applications.
Key Features:
✔️Non-dispersive infrared (NDIR) technology for high-precision CO/CO₂ detection
✔️Long-path absorption cell (up to 3.5 m) for enhanced sensitivity
✔️Gas filtering design resists interference from water vapor and other gases
✔️Long-life infrared light source (up to 5 years)
✔️Built-in temperature calibration for accurate measurements across a wide range
✔️Automatic calibration with user-friendly 320×240 color LCD touchscreen
✔️Real-time data display, storage, and historical data download via host software
✔️Fast response time: ≤90 seconds with 0.5–2.0 L/min gas flow
✔️High stability and repeatability: repeatability ≤1%, zero & range drift ≤±2% FS/8h
✔️Modular design for future upgrades and expansion to other gases (NH₃, CH₄)
✔️Lightweight & portable: 247 × 211 × 118 mm, ≤3.4 kg
✔️Audible & visual alarm for immediate warning
Portable Infrared CO/CO2 Analyzer
Portable Infrared CO/CO2 Analyzer operates through non-dispersive infrared spectroscopy technology with gas filtering capability for quantitative atmospheric carbon monoxide and carbon dioxide measurement. This unit features a 3.5-meter long-path absorption cell that amplifies detection sensitivity. The device measures 247x211x118mm and weighs 3.4 kilograms maximum. It detects CO from 0-50.0ppm and CO2 from 0-5000ppm with 0.1ppm resolution for carbon monoxide readings.
The analyzer maintains indication error at ±2% full scale with repeatability under 1.0%. Zero drift and range drift both remain within ±2% FS over 8-hour periods. Its infrared light source operates continuously for five years minimum, supporting over 10,000 hours of monitoring service. The system requires 30-minute preheating and delivers response within 90 seconds at 0.5-2.0L/min gas flow rates. A 320×240 color LCD touchscreen manages operations with RS485 communication interface for real-time data logging and historical record downloads.
Naval submarine crews employ the Portable Infrared CO/CO2 Analyzer to monitor atmospheric conditions in enclosed compartments where combustion byproducts accumulate during extended underwater operations. Military chemical defense specialists utilize these analyzers at testing ranges to verify ventilation system performance following live-fire exercises. Air force maintenance teams deploy the device in aircraft hangars and fuel storage facilities to detect carbon monoxide leaks from ground support equipment and heating systems. Hazmat response units carry this analyzer during industrial incident investigations requiring immediate atmospheric hazard assessment.
Tactical Supply Pakistan delivers gas detection instrumentation that withstands demanding field conditions while maintaining laboratory-grade measurement accuracy. Their technical specialists provide calibration services using certified gas standards to ensure compliance with occupational safety regulations.
Does temperature variation affect measurement accuracy during outdoor field operations?
No, the built-in temperature calibration function automatically compensates for ambient temperature fluctuations across wide ranges, maintaining high-precision measurements without manual adjustments regardless of environmental conditions.
