Acoustic Thermal Imaging System
Portable LSPEC‑S30 Acoustic Thermal Imaging System for precise detection of partial discharge, temperature anomalies, and leakage in electrical equipment.
Key Features:
✔️Dual acoustic & infrared imaging for comprehensive fault detection
✔️Partial discharge analysis with PRPD visualization
✔️162-channel noise-canceling microphone array
✔️Detection range: 0.3–150 m, frequency: 2–100 kHz
✔️High-resolution infrared: 640×512, accurate temperature measurement ±2%
✔️Split-screen 5″ HD display for simultaneous visualization
✔️Lightweight & portable: 0.98 kg with replaceable batteries
✔️Built-in 64GB storage, Wi-Fi/Bluetooth, and 4G/5G connectivity
Acoustic Thermal Imaging System

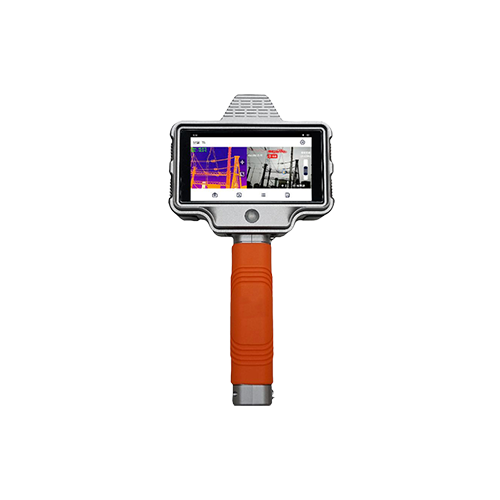

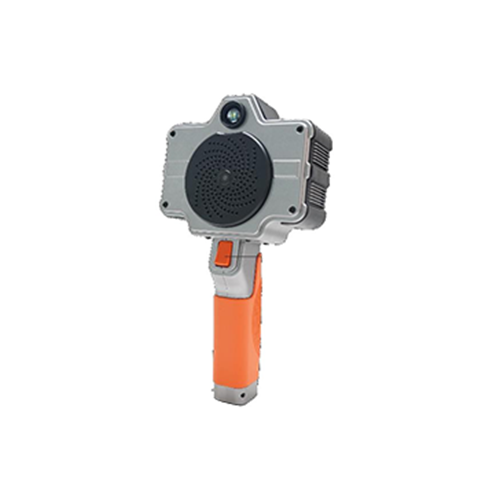

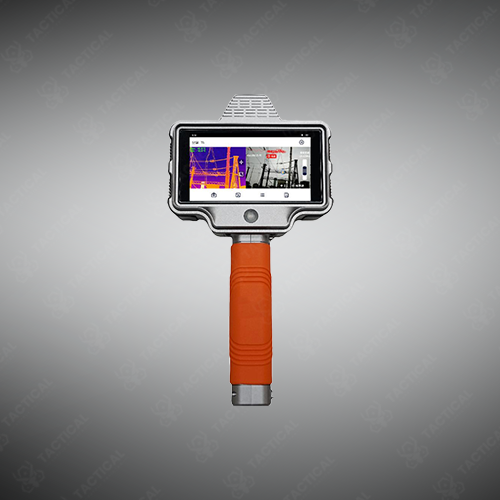

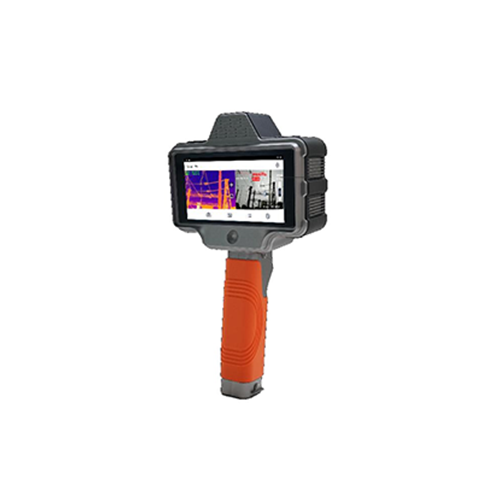

Acoustic Thermal Imaging System combines 162 digital microphones with 640×512 infrared resolution for simultaneous partial discharge analysis and temperature measurement. This handheld unit measures 286x154x83mm and weighs 0.98 kilograms. The microphone array spans 70mm diameter with -26 dBFS sensitivity at 1 kHz 94dB. It operates across 2 kHz to 100 kHz frequency range with 200 kHz sampling rate and 25 FPS image capture.
The device features a 5-inch display with 720×1280 resolution and split-screen capability. Temperature measurement spans -20°C to +150°C and 100°C to 550°C ranges with ±2°C or ±2% accuracy. Detection distance extends from 0.3 meters to 150 meters with positioning error below 0.05 meters at 1 meter distance. The removable 4900mAh battery provides 3.5 hours continuous operation. Built-in 64GB storage expands via SD card, supporting Wi-Fi, Bluetooth, and 4G/5G connectivity through dedicated SIM slot.
Military electrical engineering units deploy the Acoustic Thermal Imaging System to inspect power distribution networks at forward operating bases, identifying equipment failures before mission-critical blackouts occur. Naval maintenance crews utilize this analyzer aboard vessels to locate electrical discharge anomalies in switchgear and generator systems during sea trials. Air force ground support teams conduct transmission line surveys at radar installations where undetected corona discharge compromises communication security. Installation security personnel perform preventive inspections on substation equipment protecting classified facility operations.
Tactical Supply Pakistan offers professional diagnostic equipment enabling predictive maintenance programs that reduce operational downtime and equipment replacement costs. Their technical support includes training programs covering acoustic signature interpretation and thermal anomaly assessment methodologies.
Can this system differentiate between various partial discharge types during field inspections?
Yes, the analyzer identifies specific discharge patterns including floating potential, corona, and surface discharge types while simultaneously displaying PRPD diagrams that characterize each phenomenon’s electrical signature for accurate fault classification.
