Multi-Purpose Fire Fighting Robot
Heavy-duty modular UGV for fire suppression, casualty support, CBRN and recon tasks in high-risk environments.
Key Features:
✔️ 3,800 L/min water/foam output from high-capacity monitor
✔️ Hot-swappable pack of 6 lithium-ion batteries for up to 12 h endurance
✔️ Rugged aluminum‐alloy chassis rated IP67 for dust and water protection
✔️ Can operate under extreme heat (rated for up to 600 °C)
✔️ Interchangeable mission modules (10+ types) in < 30 s — no tools needed
✔️ Tracks capable of climbing 45° slope, navigating debris and rubble
✔️ Remotely controlled via dual-frequency link with real-time HD + thermal camera feed
✔️ Payload capacity of 500 kg for tools, stretcher, or equipment
✔️ Pulling capacity of 650 kg for towing or clearing obstacles
✔️ Motorized bull-bar for obstacle removal and path clearing

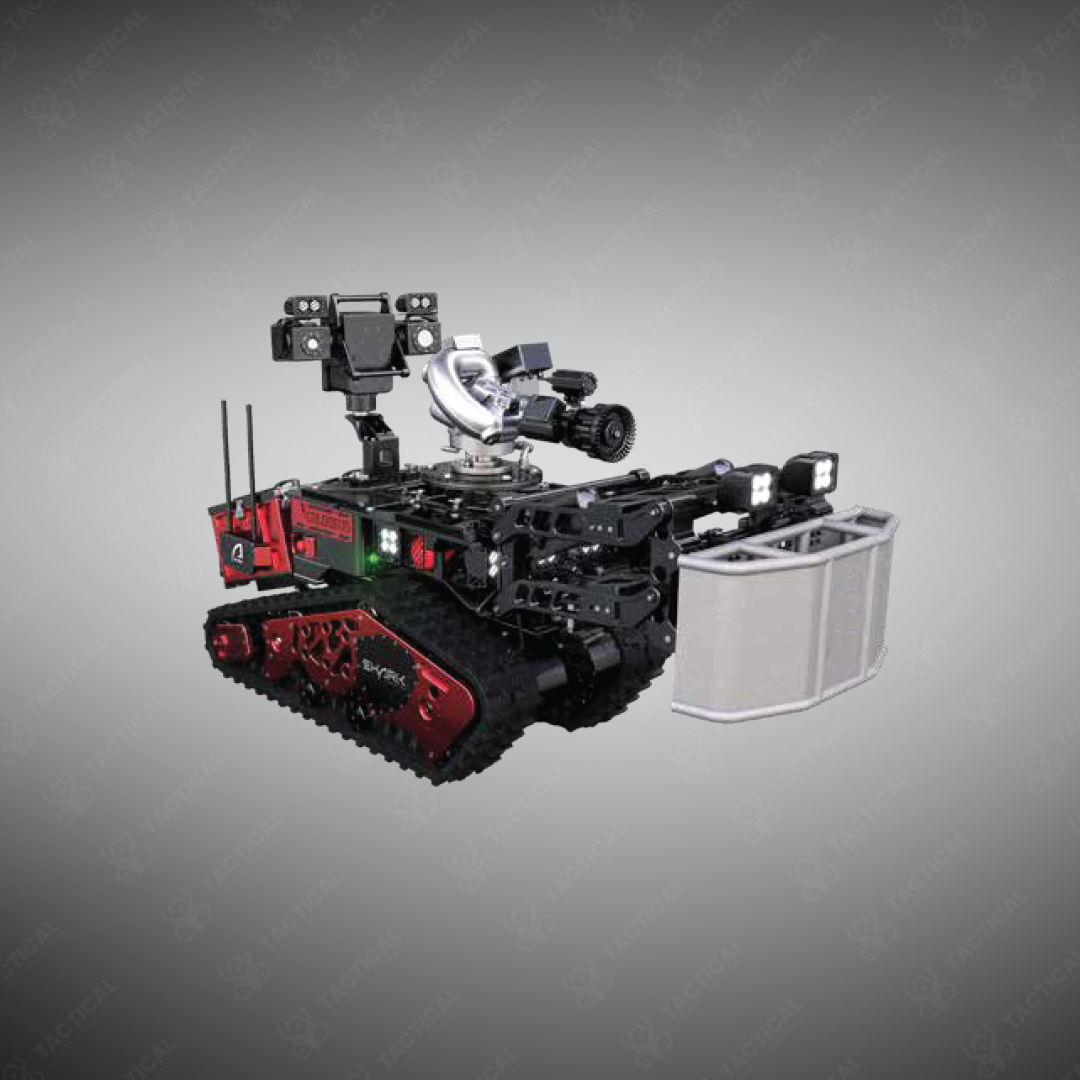

Multi-Purpose Fire Fighting Robot
The Multi-Purpose Fire Fighting Robot measures 160 centimeters in length, 78 centimeters in width, and 76 centimeters in height with an operational weight of 525 kilograms. The aerospace-grade aluminum chassis withstands thermal radiation up to 900 degrees Celsius. Two electric motors deliver 4,000 watts each, achieving speeds of 3.5 kilometers per hour. Six interchangeable lithium-ion Shark Energy UN38 batteries provide 12-hour continuous operation. The vehicle clears obstacles up to 30 centimeters high with slope capability reaching 40 degrees on primary terrain. Waterproof construction meets IP67 standards. The motorized water inlet valve system delivers 3,800 liters per minute.
Platform payload capacity reaches 500 kilograms while towing extends to 650 kilograms. The integrated 5-axis arm lifts 70 kilograms for casualty evacuation and equipment handling. Thermal and high-definition zoom cameras provide real-time feedback with integrated GPS navigation. The 180-degree video turret enables comprehensive surveillance. Eight interchangeable mission modules include water/foam monitor, breathing air system, stretcher attachment, smoke extraction fan, and equipment transport basket.
The Multi-Purpose Fire Fighting Robot deploys across industrial fires, collapsed structures, and urban hazard zones. Fire brigades employ this system for extinguishing flames, evacuating casualties, and conducting CBRN decontamination operations. Remote operation from 1,000 meters maintains firefighter safety during extreme temperature events. The robot operated during the Notre-Dame Cathedral fire in Paris, protecting critical infrastructure under extreme conditions.

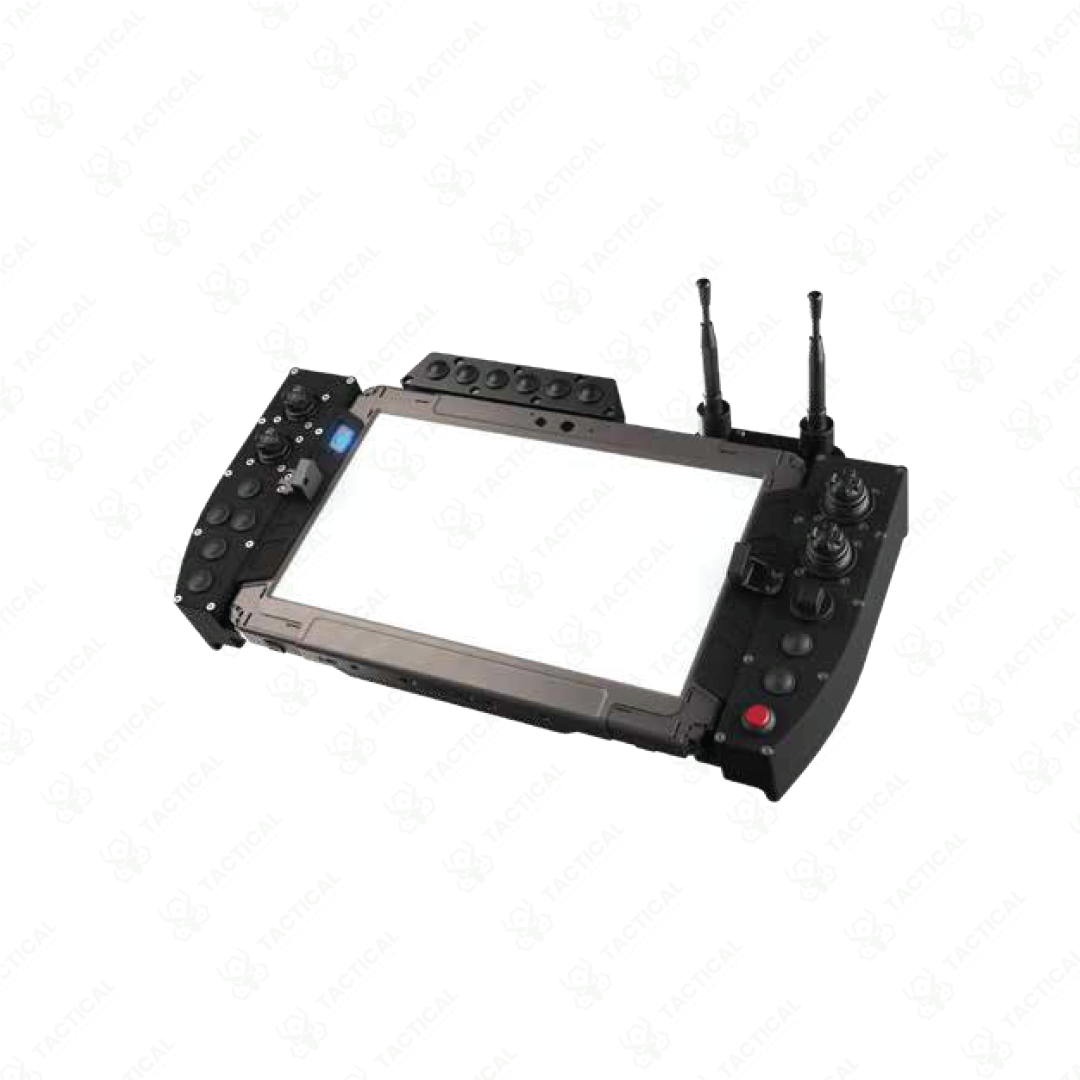

Tactical Supply Pakistan supplies this tool-free modular design, enabling rapid mission reconfiguration without mechanical assembly. Optional mesh relay systems extend transmission distance during large-scale deployment. The dual-frequency 2.4 GHz remote control ensures reliable command authority in high-pressure emergency scenarios.
How does this robot withstand extreme heat exposure during active fire suppression?
The aerospace-grade aluminum chassis incorporates insulation protecting internal motors and battery systems while withstanding thermal radiation up to 900 degrees Celsius.
