Jet Fuel Tester
Portable, rugged NDIR spectrometer for ultra-fast, lab-grade detection of FAME (fatty acid methyl esters) in jet fuel—field-ready and standards-compliant.
Key Features:
✔️ Fast 5 min fully automated measurement, including sample prep
✔️ Detects FAME 10–250 mg/kg (ppm) with detection limit at 10 mg/kg
✔️ Repeatability r ≤ 4 mg/kg and reproducibility R ≤ 6 mg/kg—lab accuracy on-site
✔️ Patent‑pending FIC™ dual-cartridge interference check distinguishes FAME from others
✔️ Rugged, 10 kg metal housing with 8.4″ touchscreen and built-in industrial PC
✔️ Connectivity: LAN, 5 × USB, RS‑232; LIMS integration; export CSV/PDF
✔️ Optional DENS4052 EXT module enables simultaneous ASTM D4052 density measurement
✔️ Compact and lightweight—ideal for airports, terminals, military & remote sites
erajet FAME – Field‑Grade Jet Fuel FAME Analyzer
Jet Fuel Tester

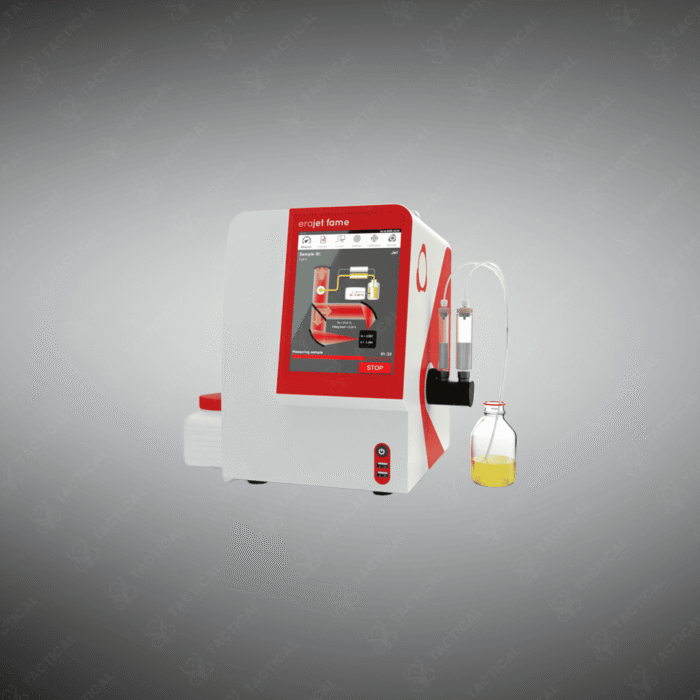

The Jet Fuel Tester is a compact, portable unit housed in a rugged metal enclosure measuring roughly 32 × 33 × 35 cm. It operates using a dual-cartridge system: one captures polar contaminants, while the other filters out non-polar components. The system features an NDIR spectrometer with no moving parts and an 8.4″ high-contrast color touchscreen mounted on an industrial PC.
Requiring only 35 mL of sample, the device runs on 85–264 V AC or a 12 V DC vehicle adapter. It weighs approximately 10 kg. Internally, the unit uses two solid-phase extraction cartridges and infrared detectors with separate optical filters. It automatically draws and analyzes the fuel, eliminating the need for manual intervention. IR spectral subtraction and dual-wavelength detection help prevent false positives. Each measurement completes in under five minutes. For communication, the device includes LAN, RS232, five USB ports, and optional Wi–Fi via USB dongle. Results can be exported as CSV or PDF files.
In the field, the Jet Fuel Tester ensures on-site jet fuel purity across airports, military bases, naval ports, and fuel depots. Its durability and lightweight design also allow transport to remote airstrips and frontline posts. Importantly, it detects FAME levels from 10 to 250 mg/kg to ensure compliance with ASTM D1655 limits. It also flags ester contamination, helping to protect jet engine performance.
Technicians rely on this tool for accurate results. It supports global standards such as ASTM D7797, IP583, IP585, IP590, and IP599. With repeatability ≤ 4 mg/kg and reproducibility ≤ 6 mg/kg, the system delivers lab-quality accuracy in the field. Tactical Supply Pakistan provides this trusted tool to aviation and defense sectors across Pakistan.
Can the instrument distinguish between FAME and other esters in jet fuel?
Yes. Its dual-cartridge system and FAME Interference Check™ use two IR detectors and spectral subtraction to accurately identify FAME while filtering out other testers.
