Jammer Tester
A rugged, field-ready diagnostic device engineered to verify RF jammer performance up to 6 GHz with fast, automated pass/fail validation.
Key Features:
✔️ Tests Jammers up to 6 GHz in reactive, active, and hybrid modes
✔️ Fully Automated Test Cycle delivering results within seconds
✔️ Clear Pass/Fail Indicator (Green = OK | Red = NO)

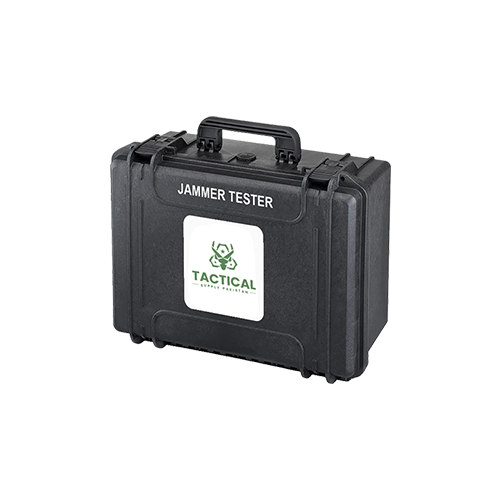

✔️ Heavy-Duty Rugged Enclosure for operational environments
✔️ Self-Powered Operation with internal rechargeable battery
✔️ Integrated Web Server Interface for configuration and updates
✔️ Stores Up to 4 Test Profiles for different jammer setups
✔️ Test Result Logging & Review via built-in web dashboard
✔️ Built-In Test (BIT) with internal self-diagnostics
✔️ Calibration Verification Function to ensure measurement integrity
Jammer Tester

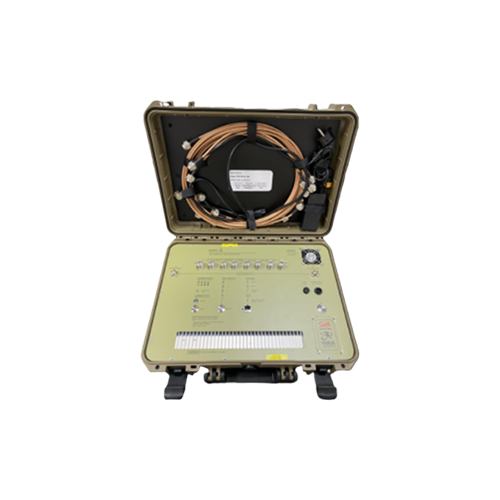

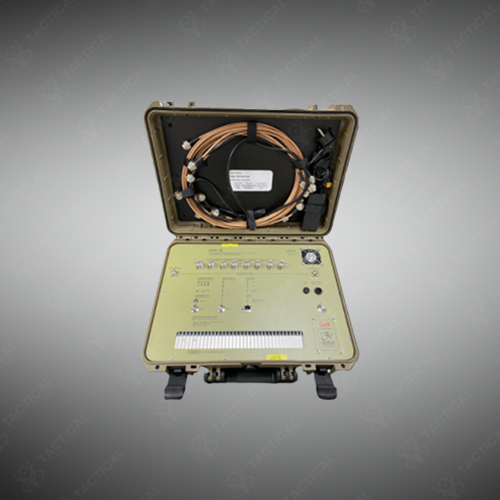

The Jammer Tester operates across a frequency range of 70-6000 MHz with 1 kHz resolution capability. The device features eight N-type female connectors rated at 120W RF power per connection with 50Ω impedance. The unit measures 464 x 366 x 176mm housed in a military-grade sturdy case weighing under 10kg including battery and cables. An internal rechargeable 70Wh battery provides self-powered operation while accepting 9-24 VDC external input with power consumption under 35W.
The automated test procedure completes in seconds with results displayed through color-coded LED indicators: green confirms operational status while red signals failure. The integrated web server enables profile programming, software updates, and result storage access through Ethernet LAN connection with five password-protected security levels. The system stores up to four test profiles accommodating different jammer configurations with 32 programmable frequencies per profile. Operating temperature range spans -5°C to +45°C for field deployment conditions.
Military bomb disposal units deploy the Jammer Tester for pre-mission verification of radio frequency countermeasure equipment protecting convoy movements. Security forces utilize the device to confirm operational readiness of communication disruption systems before high-risk operations. The unit tests reactive, active, and hybrid mode jammers ensuring equipment functionality without requiring specialized technical personnel. Law enforcement teams verify counter-surveillance jammer performance during dignitary protection assignments.
Tactical Supply Pakistan provides diagnostic equipment for electronic countermeasure verification across defense and security operations. The company supplies testing instruments meeting field deployment requirements for communication disruption system validation and pre-mission equipment checks.
Can the device verify jammer reaction time accuracy below 500 microseconds?
The system measures reaction time from 100µs to 2000µs with 10µs resolution, allowing operators to set maximum acceptable reaction time thresholds and confirming sub-millisecond response performance for rapid threat neutralization.
