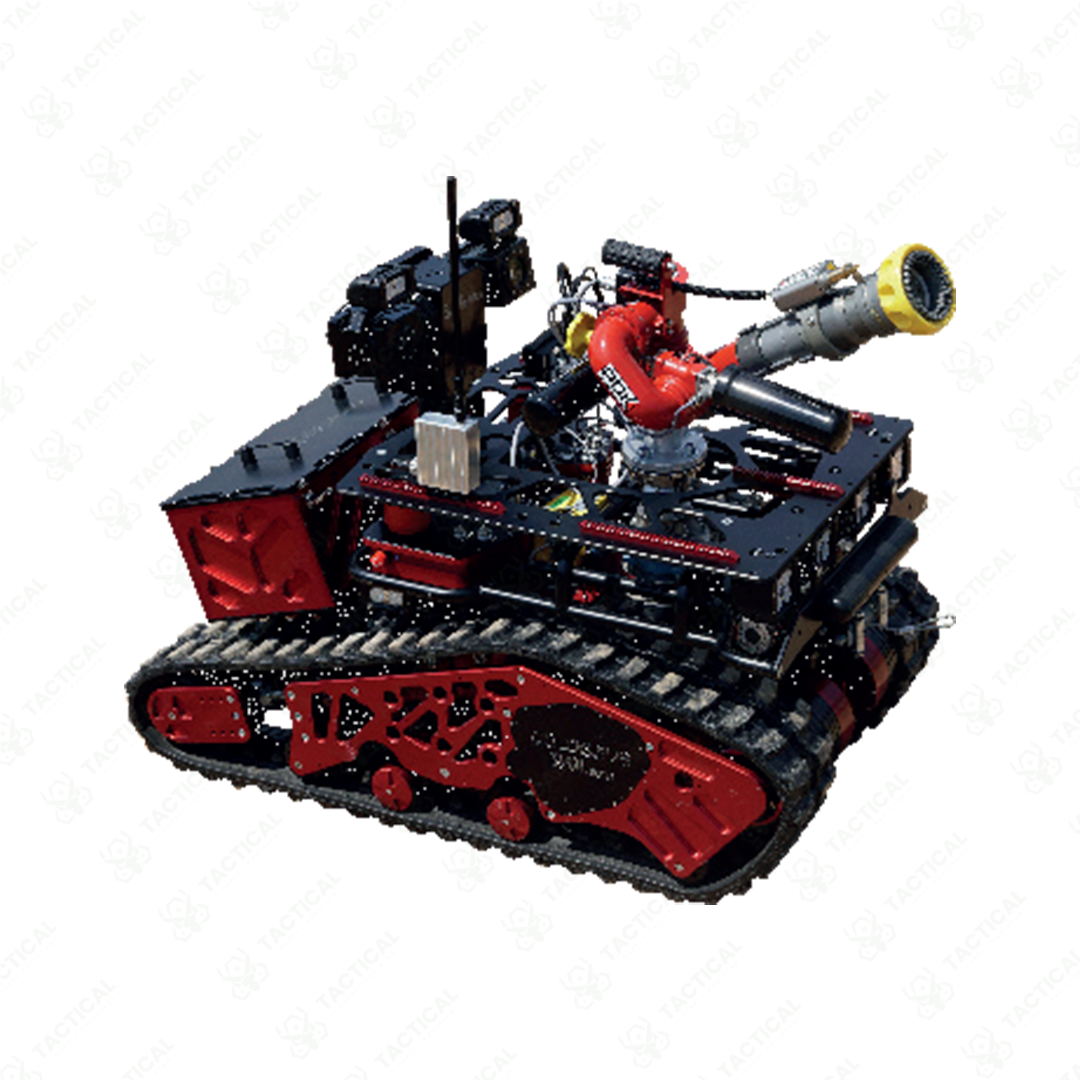

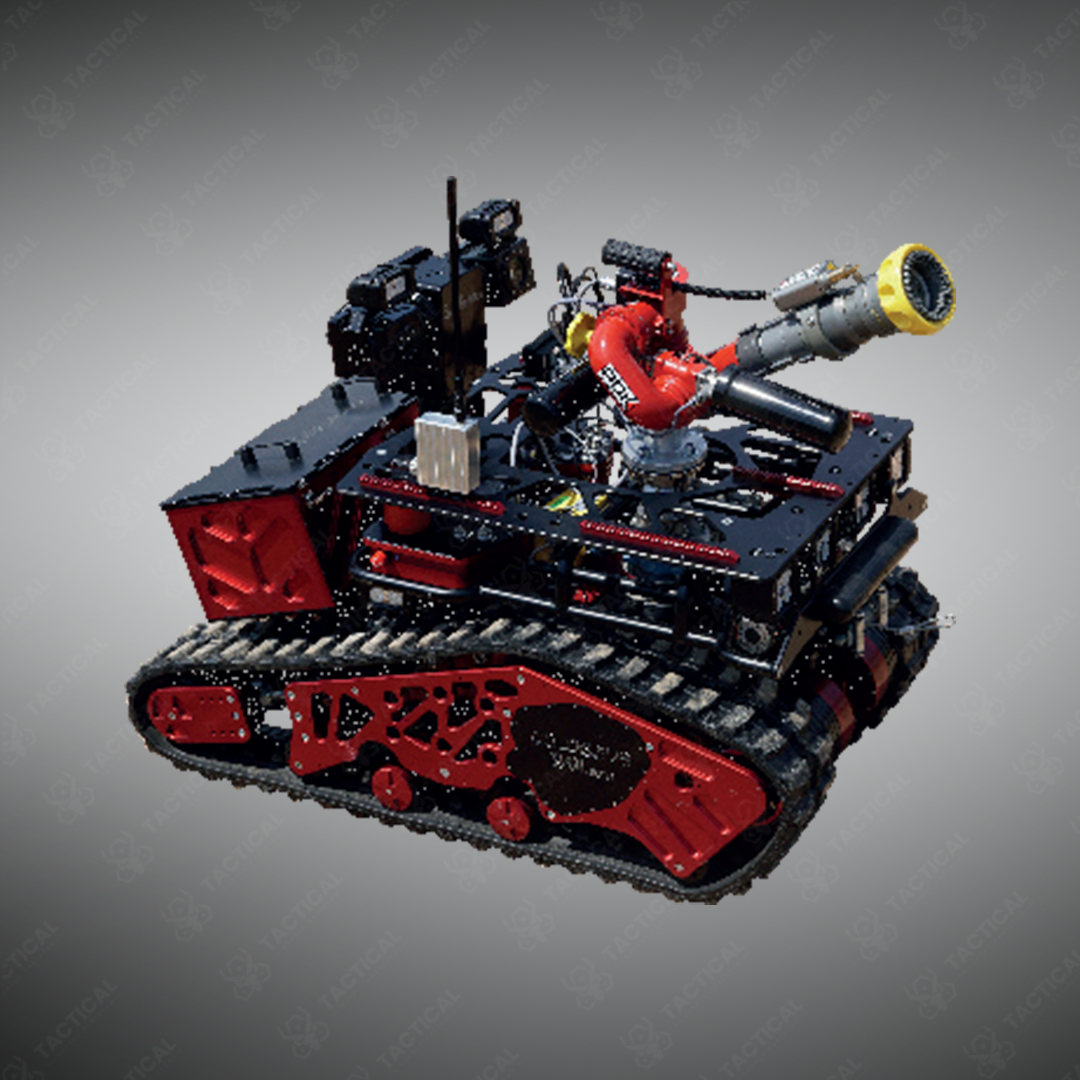

Fire Fighting Robot
Electric, IP67 firefighting robot with water‑cannon interface, 200 kg+ payload and long endurance for hazardous fire & rescue tasks.
Key Features:
✔️ Weight & size: 160 kg | 140 × 74 × 80 cm (L × W × H)
✔️ Drive: 2 × 500 W electric motors; aluminium welded chassis
✔️ Speed & runtime: 3.5 km/h | ~4 hours operation (standard batteries)
✔️ Capacity: Payload 200 kg+; traction capacity 500 kg+
✔️ 30 cm obstacle clearance; 50° slope capability; rapid cross‑country deployment
✔️ Power: 2 × 29.8 V, 46 Ah batteries (swappable)
✔️ Water‑cannon interface (cartridge), LED lighting, electromagnetic brakes
✔️ Protection & maintenance: IP67 waterproof, low‑maintenance design
✔️ Control & comms: Dual‑freq controller (433 / 870 MHz); radio ~600 m LOS / ~200 m indoor; rugged tablet UI + 3‑axis joystick
Fire Fighting Robot
The Fire Fighting Robot weighs 160 kilograms with dimensions of 140 x 74 x 80 centimeters. Dual electrical motors deliver 2 x 500 watts power enabling 3.5 kilometers per hour speed. The aluminum welded chassis carries 200-kilogram payload with 500-kilogram traction force. Two 29.8-volt 46-ampere-hour batteries power continuous 4-hour operations. IP67 waterproof rating ensures functionality in wet firefighting environments. The robot negotiates 30-centimeter obstacles and climbs 50-degree slopes. Electromagnetic brakes provide emergency stopping capability.
This robot operates via dual-frequency transmitter control at 433 and 870 MHz. Radio transmission reaches 600 meters line-of-sight and 200 meters inside buildings. Ultra-ruggedized tablet (FZ-M1) with 3-axis joystick provides ergonomic remote operation. Android and iOS applications enable smartphone control with real-time video display. Picatinny rails accommodate modular attachments. Mounted water cannon systems deliver firefighting agent to high-temperature zones without operator exposure. LED lighting illuminates target areas during low-visibility operations.
The Fire Fighting Robot deploys in urban structural fires where personnel cannot safely access burning buildings. Industrial facilities use it for hazardous material fires involving toxic chemical storage. Airport operations employ it for aircraft fire suppression. Petrochemical plants utilize remote firefighting near explosive vapor zones. Military installations deploy it for fuel depot fire suppression. Rapid implementation enables emergency response within minutes.
Tactical Supply Pakistan supplies this factory-assembled firefighting solution with minimal field maintenance requirements. Their delivery of remote autonomous systems ensures emergency services receive reliable firefighting capabilities.
Does the Fire Fighting Robot support extended operations beyond 4 hours?
Standard 4-hour operations address typical structural fire scenarios. Extended missions use spare battery packs (2 x 29.8V 46Ah) swapped at operating stations, allowing continuous firefighting coverage across multiple deployment locations.
