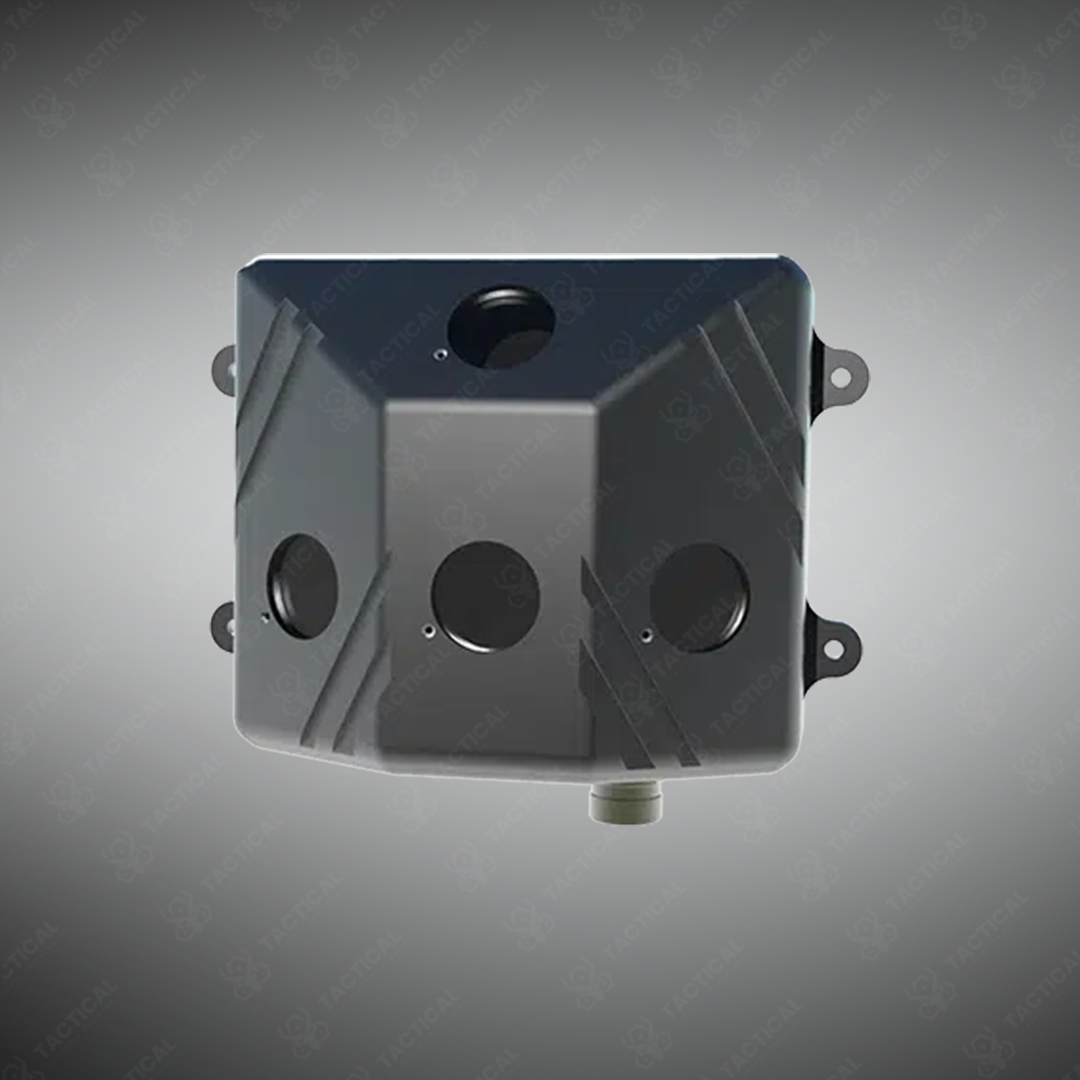

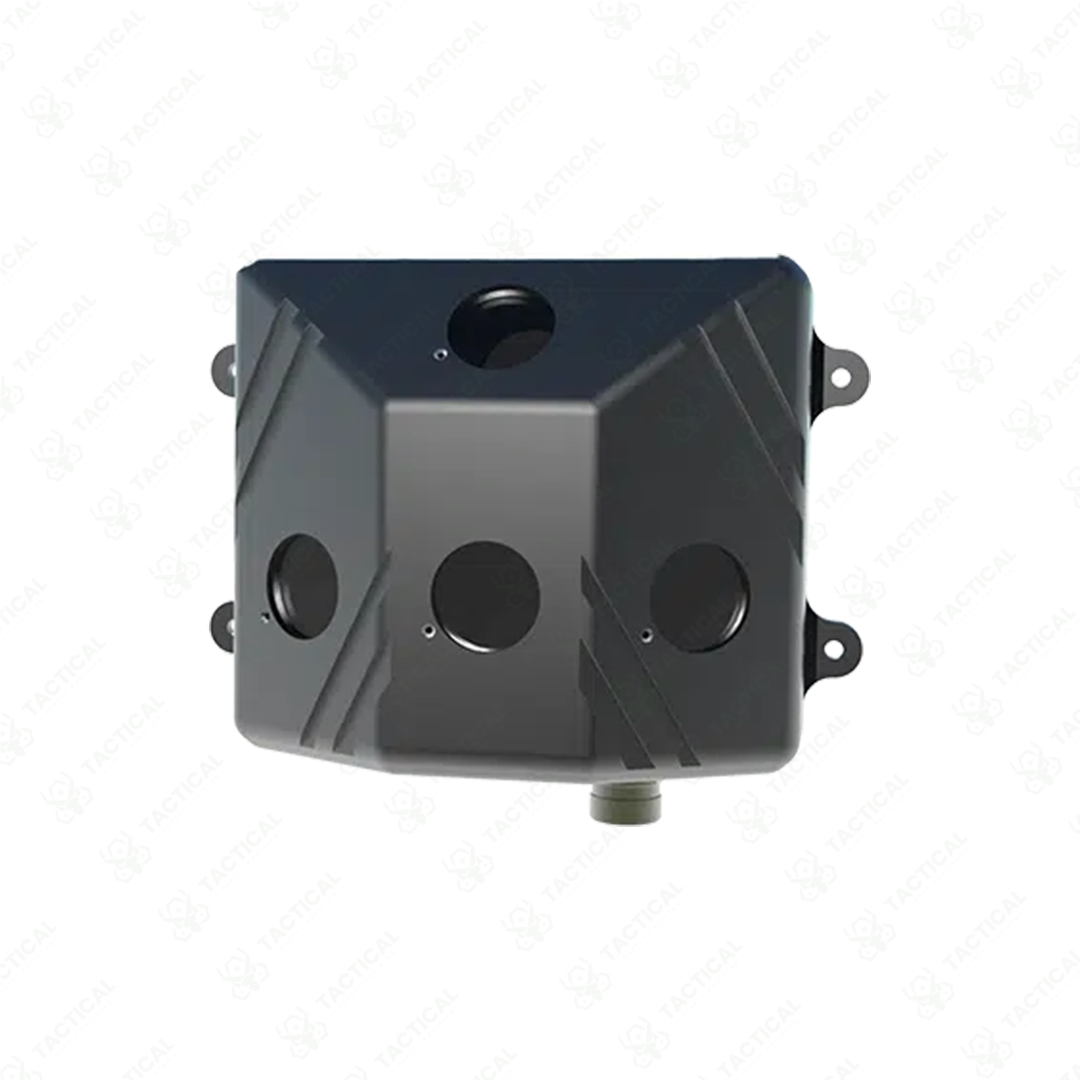

Military Laser Warning System – LW4000
Advanced vehicle laser-warning unit detecting, classifying, and locating laser threats (LDM/LTD/LGB) with ultra-fast response and rugged MIL-grade design.
Key Features:
✔️ Detection range: Up to 12 km | Response time <100 ms
✔️ Wavelength band: 700–1700 nm | Sensitivity >0.1 W/m²
✔️ Coverage: 360° azimuth (110° × 110° per sensor) | Direction accuracy ≈ 15°
✔️ Interfaces: CANbus / Ethernet for C2 and vehicle systems
✔️ Environmental: IP69K, –40 °C to +60 °C, MIL-STD-810 / 461 / 1275 compliant
✔️ Power: 24 VDC, ~120 mA, weight ~ 1.8 kg
✔️ Features: Built-In Test, anti-false-alarm logic, dirty-glass warning
✔️ Threat type (LDM/LTD/LGB) & direction instantly displayed
Military Laser Warning System – LW4000
The Military Laser Warning System – LW4000 measures 194 x 75 millimeters and weighs 1.8 kilograms. The sensor detects laser wavelengths between 700–1700 nanometers with sensitivity exceeding 0.1 watts per square meter. Vertical and horizontal fields of view each span 110 degrees, providing 360-degree coverage through multiple units. Response time remains below 100 milliseconds. Detection range extends to 12 kilometers against laser-guided weapons. IP69K protection ensures severe environment operation. Operating temperature spans -40 to +60 degrees Celsius. Power consumption measures 120 milliamperes at 24 volts DC. The system conforms to MIL-STD 810, 461, and 1275 military standards with 800-hour salt fog resistance.
This Warning System classifies incoming threats including Laser Distance Meters, Target Designators, and Guidance Beams. Wavelength measurement distinguishes genuine laser sources from deceptive light. Multi-sensor architecture verifies reflection origins from identical laser sources. Built-in Test capability performs live detector verification and automatic calibration. Dirty glass warning alerts operators to optical contamination. Directional detection accuracy reaches 15-degree sensitivity. False alarm prevention through full-spectrum analysis eliminates unreliable alerts. Automatic magnetic cover operation simplifies user interface. CANBUS and Ethernet communication enables platform integration.
The Military Laser Warning System – LW4000 protects armoured vehicles against anti-tank laser-guided missiles. Naval vessels deploy it for air defense warning. Forward operating bases utilize detection against sniper rangefinders. Air defense platforms integrate the system for threat detection. Helicopter crews employ it against shoulder-fired laser weapons. Border security forces detect laser reconnaissance during surveillance operations.
Tactical Supply Pakistan delivers this Turkish-manufactured laser detection solution with proven military reliability. Their commitment to advanced sensor technology ensures personnel and platform protection.
Can this Warning System distinguish weapons from civilian lasers?
Yes, wavelength measurement identifies threat signatures while filtering civilian emissions. Full-spectrum analysis prevents false alarms, maintaining operational alert integrity during deployment.
