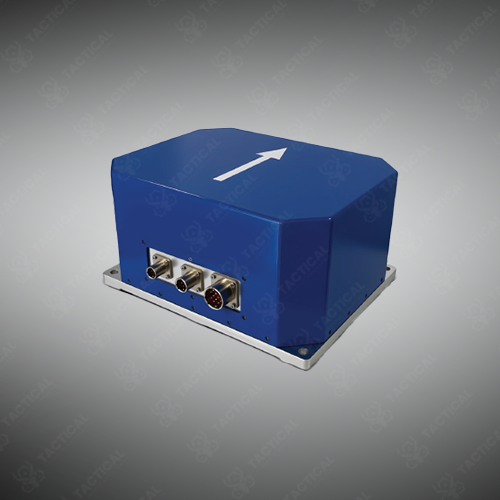

Fiber Optic Gyro Compass
A high-accuracy fiber optic gyro compass providing reliable heading and attitude measurements for maritime, aerospace, and industrial navigation with solid-state durability and minimal maintenance.
Key Features:
✔️ Solid-state fiber optic design with no moving gyroscope elements
✔️ High-accuracy heading and attitude measurements (≤0.1° to ≤0.75° depending on model)
✔️ Fast start-up and alignment for rapid deployment in operational scenarios
✔️ Compact aluminum housing with reserved wiring ports for easy installation
✔️ Wide operational temperature range (-40°C to +65°C) and storage to -50°C to +80°C
✔️ Low power consumption (≤20W) with reliable DC 18–36V operation
✔️ Multiple configurations including standard and integrated versions with built-in units
✔️ Comprehensive output data compatible with GPS, BDS, and external navigation systems
Fiber Optic Gyro Compass
The Fiber Optic Gyro Compass utilizes solid-state fiber optic technology to determine true heading without mechanical gyroscope components. The Poseidon Compass-A model achieves 0.1° heading accuracy and 0.01° attitude accuracy in a standard configuration weighing 7.2 kg. The Compass-B variant delivers 0.5° heading precision with 0.02° attitude performance, while the Compass-C reaches 0.75° heading accuracy with 0.03° attitude tolerance. All models operate on 18-36V DC power supply, consuming 20 watts maximum during continuous operation.
Standard versions integrate four separate units: main gyro compass, junction box, power supply module, and display-control interface. The integrated C500 series combines junction and power modules directly into the main unit, reducing total weight to 5.4 kg. Aluminum alloy construction withstands operating temperatures from -40°C to +65°C, with storage tolerance extending to -50°C through +80°C. Startup time reaches completion within 55 seconds, while alignment procedures finish in 15 minutes when GPS and BDS satellite signals assist initial orientation. Reserved front wiring ports simplify installation in confined equipment bays.
Commercial vessels mount the Fiber Optic Gyro Compass on bridge navigation consoles to maintain accurate heading reference during magnetic storm interference that degrades traditional magnetic compasses. Naval patrol craft rely on these systems for precise course holding during high-speed maneuvering in littoral waters. Offshore supply vessels use fiber optic compasses for dynamic positioning operations requiring continuous heading feedback to thruster control systems. Survey ships integrate these units with multibeam sonar arrays where heading errors directly corrupt bathymetric data quality.
Tactical Supply Pakistan provides Fiber Optic Gyro Compass systems for maritime operators transitioning from mechanical gyroscopes to maintenance-free solid-state navigation equipment. Our marine division supports installation planning and interfacing with existing autopilot and chart plotter systems onboard vessels.
Does the Poseidon Compass require gyroscope ball replacement like mechanical systems?
No. Solid-state fiber optic design eliminates all moving parts, removing ball replacement maintenance entirely throughout operational lifespan.
