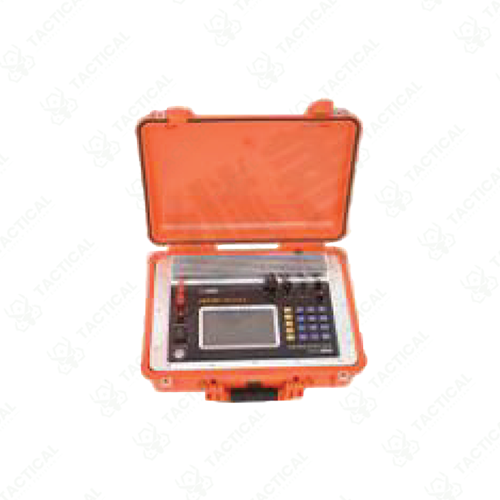

Transient Electromagnetic Instrument
Transient Electromagnetic Instrument is an advanced TEM system for deep subsurface exploration and non-contact geophysical surveys.
Key Features:
✔️ Surface transmitter loop for pulsed non-contact electromagnetic surveys
✔️ Adjustable transmitter current: 1–20 A for variable depth penetration
✔️ Operates across 7 precise frequencies from 0.25 Hz to 225 Hz
✔️ 40 independent receiver channels for detailed data acquisition
✔️ Compact integrated transmitter-receiver design for field portability
✔️ High signal-to-noise ratio via segmented programmable amplification
✔️ Real-time and historical decay curve display for immediate analysis
✔️ Detects conductive targets including sulfide ores, graphite, and cavities
✔️ Non-grounded operation suitable for frozen ground, pavement, and rocky terrain
✔️ Durable, field-ready cases for rapid deployment and transport

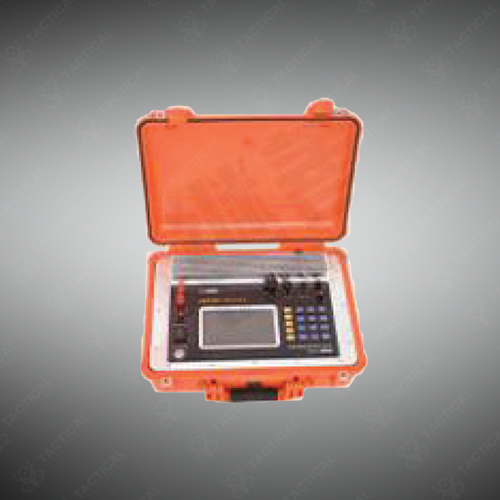

Transient Electromagnetic Instrument
The Transient Electromagnetic Instrument uses a surface transmitter loop. This loop sends a pulsed primary magnetic field into the ground without direct electrical contact. The system’s transmitter adjusts its current from 1 to 20 amperes. It operates across seven precise frequencies, from 0.25Hz to 225Hz. The integrated receiver has 40 independent observation channels for detailed data collection. Its design combines the transmitter and receiver into a single, compact unit. This configuration reduces system weight and overall power consumption during surveys.
Its construction focuses on logistical efficiency for rapid deployment. The main unit and loop wire are packaged in durable, field-transportable cases. The instrument employs segmented programmable amplification within its receiver circuits. This technology maintains a high signal-to-noise ratio across varied geological settings. Operators monitor results via an interface that displays both real-time and historical decay curves of the secondary magnetic field. This allows for immediate on-site data quality assessment.
The Transient Electromagnetic Instrument is a versatile tool for conductive target detection. Mineral explorers use it to locate massive sulfide deposits and graphite zones at depth. In environmental and engineering fields, it maps contaminant plumes and detects cavities beneath infrastructure. Its non-grounded method allows operation on frozen ground, pavement, or bedrock where electrodes fail. The system provides clear data for defining geological structures like faults or bedrock topography across challenging terrains.
Tactical Supply Pakistan provides this efficient electromagnetic system for diverse subsurface imaging needs. Our technical support ensures clients can deploy its 40-channel capability for high-resolution surveys.
Why is the non-contact, loop-based method advantageous over electrode-based systems?
It eliminates the need for grounding, which is impossible on pavement, frozen soil, or dry bedrock. This allows surveys in previously inaccessible areas. The method also provides faster setup for each measurement station, increasing daily survey productivity significantly.
