Top Side Unit
A rugged interface unit enabling direct connection and power conversion for submersible MX3D UW data acquisition systems in offshore and field environments.
Key Features:
✔️ Direct connection for MX3D UW submersible data acquisition units
✔️ Reads out survey data to PC for immediate analysis
✔️ IP65-rated housing with waterproof connectors for harsh environments
✔️ Converts 230 VAC to 24 V required by MX3D UW sensors
✔️ Suitable for deck, field, and offshore placement
✔️ Compatible with ROV MUX systems for seamless integration
✔️ Ensures reliable data transfer in marine and geophysical surveys
✔️ Compact and durable design for rugged operational conditions
Top Side Unit

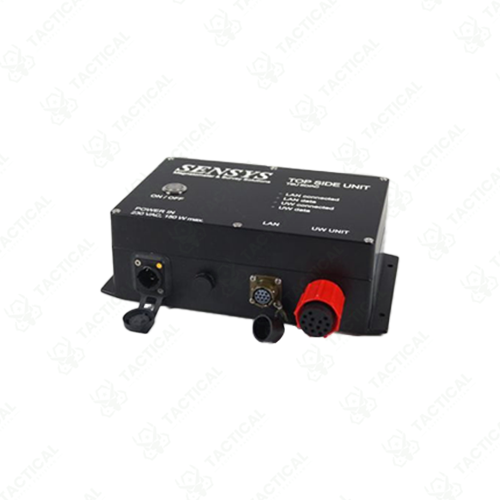

The Top Side Unit establishes direct communication between submersible MX3D UW data acquisition modules and surface computers without requiring ROV multiplexer intermediaries. This TSU device features an IP65-rated enclosure that protects internal electronics from water ingress and dust contamination during deck-mounted or field-deployed operations. Waterproof connectors seal all cable entry points against marine environment exposure.
The unit converts standard 230VAC shore or generator power into regulated 24VDC output that energizes MX3D UW systems through dedicated power lines integrated within the communication cable assembly. Internal circuitry handles voltage regulation and current limiting to prevent damage to submerged equipment during power fluctuations. The TSU housing mounts securely on vessel decks, dock surfaces, or portable field stands using integrated mounting brackets that resist vibration and movement.
Offshore survey vessels deploy the Top Side Unit during magnetometer mapping operations to stream real-time data from ROV-mounted sensors directly to shipboard processing computers. Underwater construction companies use the TSU to monitor magnetic field measurements around pipeline installations and subsea infrastructure without complex ROV control system integration. Port authority inspection teams place the unit on pier structures during harbor floor surveys to detect buried cables and abandoned metal debris. Hydrographic research institutions connect the TSU to laboratory networks when testing submerged sensor arrays in controlled tank environments before ocean deployment.

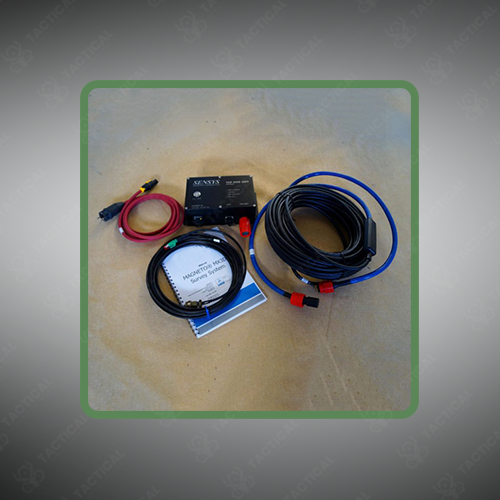

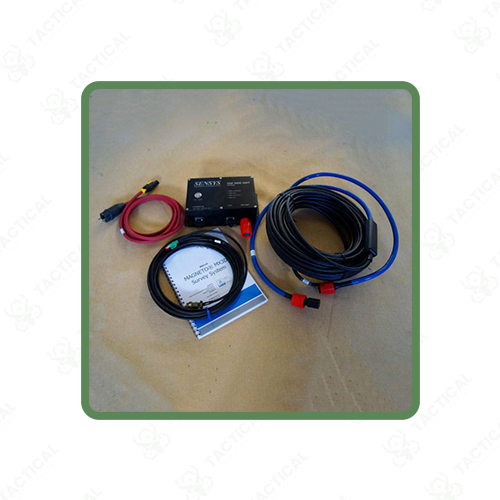

Tactical Supply Pakistan stocks the complete SENSYS Top Side Unit with waterproof cable assemblies and mounting hardware for immediate offshore magnetometer integration. The supplier provides compatible power adapters for various regional electrical standards and vessel power configurations.
Can the Top Side Unit operate continuously in saltwater spray conditions during extended offshore surveys?
Yes, the IP65 rating protects against water jets and continuous spray exposure from all directions. The waterproof connectors and sealed housing design allow uninterrupted operation in harsh marine environments throughout multi-day survey missions.
