SWISS FLEX AI
A standalone, battery-powered vehicle sensor that installs in the lane centre and provides vehicle-by-vehicle data without roadside infrastructure.
Key Features:
✔️ Completely wireless — no roadside equipment needed
✔️ Built-in modem (GSM/UMTS/LTE) with daily cloud uploads
✔️ 10-year battery life for long-term deployment
✔️ Millisecond-accurate timestamps with 99% time precision
✔️ Measures speed from –200 to +200 km/h with 0.1 km/h resolution
✔️ Classifies vehicles into up to 5 custom classes with ≥ 95% accuracy
✔️ Determines vehicle length (bumper-to-bumper) with 0.1 m resolution
✔️ Rugged IP68 casing rated for –35 °C to +70 °C
✔️ Fast 15-minute installation with single-hole drill (170 mm × 180 mm)
✔️ Open API / protocol support for integration with ITS platforms like Trafficweb

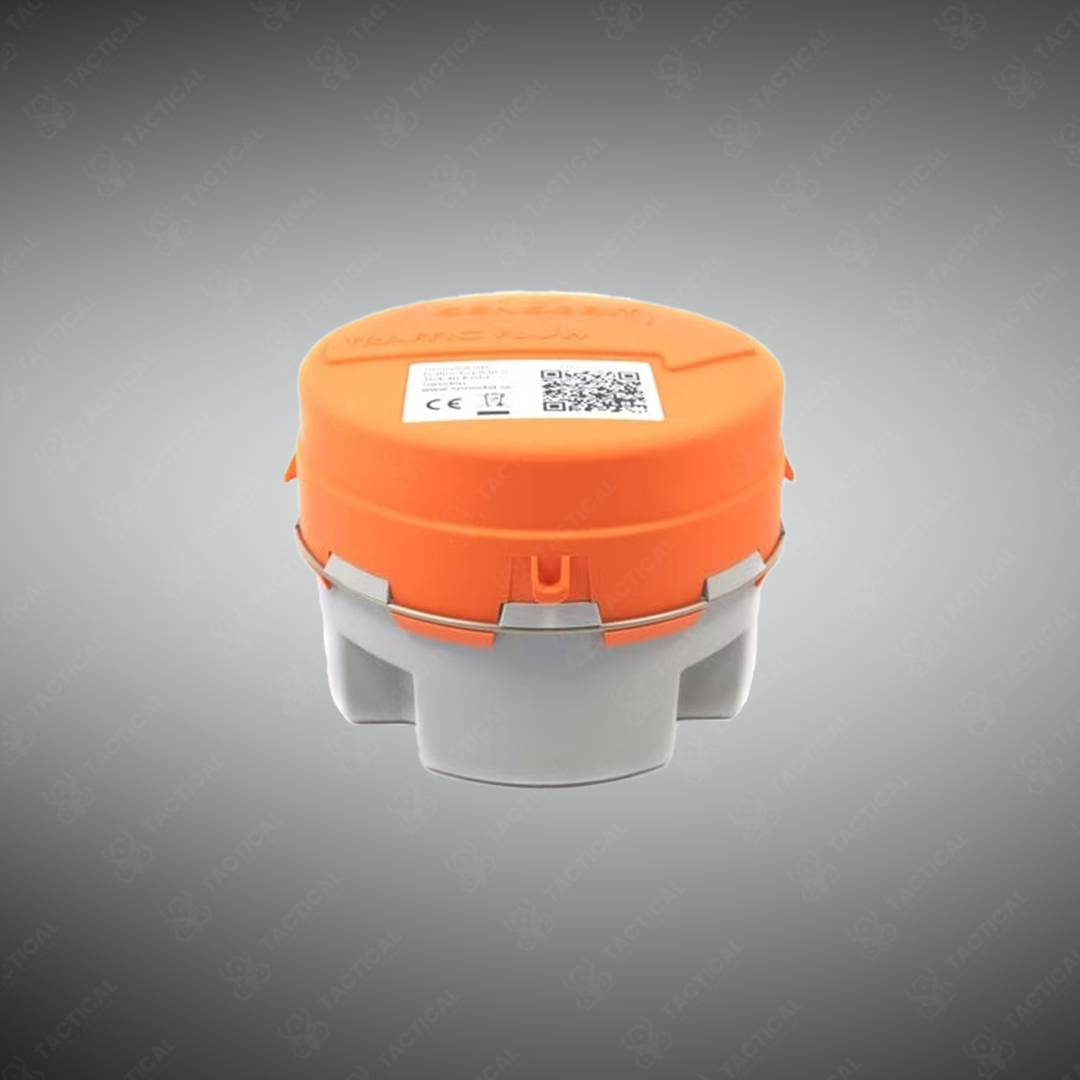

SWISS FLEX AI
The SWISS FLEX AI is a standalone wireless sensor requiring no roadside equipment. Physical specifications measure 115mm height by 155mm diameter. IP68 protection withstands extreme environments. Operating temperature ranges minus 35 to plus 70 degrees Celsius. Drill requirements specify 170mm diameter holes at 180mm depth. Installation completes in 15 minutes. The integrated battery delivers 10 years continuous operation with daily uploads. GSM/UMTS/LTE multi-band connectivity ensures global compatibility. The sensor installs in lane centers connecting to cloud infrastructure. No maintenance required post-installation.
The sensor generates vehicle-by-vehicle data with millisecond timestamps achieving 99% accuracy. Velocity spans -200 to +200 km/h with 0.1 km/h resolution. Classification algorithms offer 5 customizable classes with 95% accuracy. Bumper-to-bumper length delivers 0.1-meter resolution. Deep learning architecture powers classification intelligence. Independent Nordic authority testing validates accuracy: 5% classification error, 1% velocity error, 1% length error. Open protocols enable integration with existing platforms including Trafficweb. API connectivity supports statistics and ITS applications. Cost advantages eliminate expensive infrastructure compared to loops and radars.
Traffic authorities deploy SWISS FLEX AI across diverse road types. Urban planners implement sensors on city streets. Highway operators monitor corridors with permanent capability. Rural communities install devices on gravel roads. Transportation researchers conduct long-term studies. Environmental agencies track emission patterns. Municipality maintenance departments require zero post-installation work. Toll operators collect verification data. Regional planners assess network patterns.
Tactical Supply Pakistan manufactures standalone wireless vehicle sensors combining deep-learning intelligence with extended battery autonomy for comprehensive traffic monitoring applications.
Can the SWISS FLEX AI be relocated after installation?
Yes, the sensor requires only a drilled hole installation. Removal and reinstallation at new locations completes within 15 minutes. The battery operates independently across relocations without recalibration or setup procedures.
