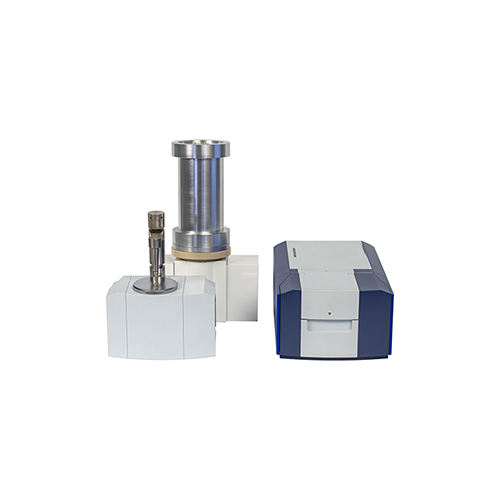

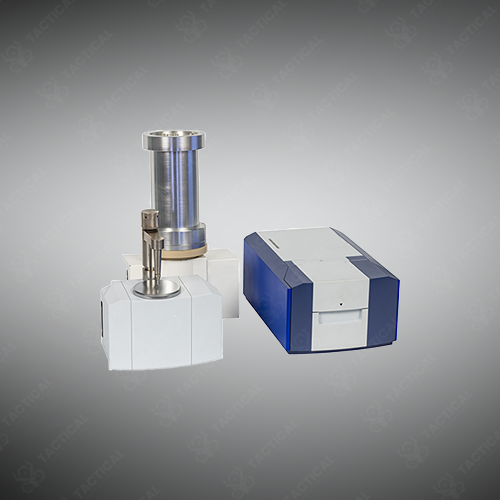

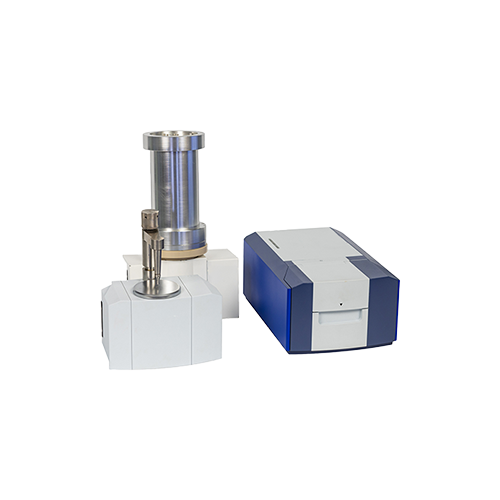

Research-Oriented Fourier Transform Infrared Gas Analyzer LSPEC 5010 incorporates compact bicornuate torsion pendulum Michelson interferometer architecture in portable configuration measuring 310mm x 220mm x 130mm. The unit operates across 600-5000 cm⁻¹ spectral range with selectable resolution from 1-8 cm⁻¹, standard at 2 cm⁻¹. High-sensitivity DLATGS detector achieves signal-to-noise ratio ≥20000:1 at 4 cm⁻¹ resolution with one-minute sampling time. Wavenumber accuracy maintains ≤0.0005 cm⁻¹ at 2000 cm⁻¹ with transmittance accuracy better than 0.1%T.

Fully gold-plated optical system with ZnSe beam splitter provides corrosion resistance and infrared transmission characteristics. Detection sensitivity reaches parts-per-million levels for trace compound identification. Modular accessories include transmission cell, ATR attachment with ZnSe total internal reflection prism, and 4.8-meter optical path high-temperature absorption cell. Plug-and-play accessory integration enables rapid configuration changes. Power consumption remains ≤30W excluding absorption cell heating elements. RS422 communication interface supports data transfer with optional network, 5G, and WiFi connectivity modules. Integrated spectral library identifies thousands of chemical substances with user-expandable reference databases. Self-calibration algorithms, path interference diagnostics, and water vapor compensation optimize measurement accuracy in field conditions.

Explosive ordnance disposal teams utilize the Research-Oriented Fourier Transform Infrared Gas Analyzer for unknown substance identification during threat response operations. Navy chemical defense units analyze suspected chemical warfare agent residues on contaminated surfaces and equipment. Airforce hazardous materials response teams conduct rapid field screening of fuel contamination and industrial chemical releases. Military forensic laboratories employ portable infrared spectroscopy for drug identification and trace evidence analysis.

Tactical Supply Pakistan provides portable analytical instrumentation supporting field operations and laboratory analysis requirements, delivering Fourier transform infrared technology with vibration-resistant interferometer design and multi-mode detection capabilities for defense applications.

Can the ATR accessory analyze viscous liquids without sample preparation?
Yes, the ZnSe ATR prism accepts direct application of viscous samples including oils and pastes, though cleaning between measurements requires appropriate solvents to prevent cross-contamination in subsequent analyses.
