Remote Retrieval Tool
A remote-controlled retrieval system that enables safe manipulation and removal of suspect devices from a distance, reducing operator exposure to hazards.
Key Features:
✔️ Extends operator reach with telescopic pole from 0.91 m to 3.2 m (3–10.6 ft)
✔️ Remote-controlled claw operation from up to 91 m (300 ft) for safe standoff
✔️ High-strength claw with 34 kg (75 lbs) clamping force for secure grip
✔️ Capable of dragging packages up to 27 kg (60 lbs) depending on surface
✔️ Compact pole and shield assembly weighing 2.3 kg (5 lbs)
✔️ Large 27 cm (11 in) claw width for versatile engagement
✔️ Rechargeable system offering over 4 hours of operational battery life
✔️ Operator maintains full control from safe distance in hazardous environments
Remote Retrieval Tool

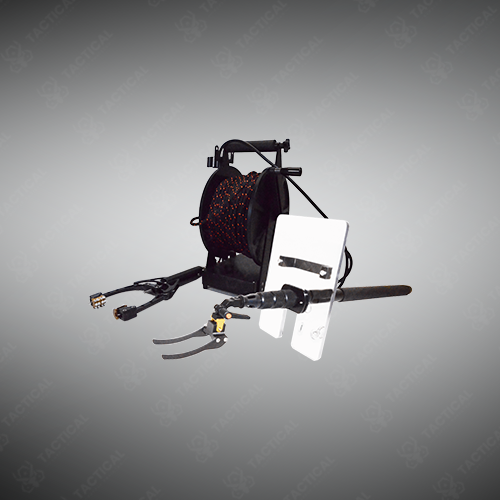

The Remote Retrieval Tool Features: an extendable pole system ranging from 0.91 meters minimum to 3.2 meters maximum reach. The integrated claw measures 27 cm wide and generates 34 kg clamping force to secure suspect packages. A motorized reel contains 91 meters of control cable, allowing operators to manipulate the claw from up to 300 feet distance. The reel assembly weighs 11 kg, while the pole and protective shield combine for 2.3 kg total weight.
Surface-dependent dragging capacity reaches 27 kg when pulling packages across smooth floors or pavement. The rechargeable battery provides over four hours of continuous operation before requiring recharge. Operators extend the telescoping pole to position the claw around a target, then retreat to a safe distance while maintaining full open-close control via the cable reel. The shield attachment protects the operator during initial approach and placement. This system eliminates direct contact with suspicious devices during extraction from confined locations.
EOD teams use the Remote Retrieval Tool to pull unattended bags from beneath stadium seating, subway benches, and parking structures. Bomb squads extract packages from vehicle interiors, building alcoves, and narrow corridors without entering blast radius. The extended pole length allows retrieval from overhead luggage racks, ventilation openings, and elevated platforms. Military units deploy this tool to drag roadside objects into open areas for remote examination, keeping personnel beyond fragment dispersion zones during initial assessment.
Tactical Supply Pakistan stocks the complete Remote Retrieval Tool system with replacement batteries and spare claw assemblies for uninterrupted field operations. Our inventory supports EOD units requiring standoff manipulation capability in urban counter-IED missions. We maintain technical expertise to advise on deployment methods for various terrain conditions.
What surface types affect the 27 kg dragging capacity rating?
Smooth concrete and asphalt support full capacity, while gravel, carpet, and rough terrain reduce effective dragging weight by approximately 30-40%.
