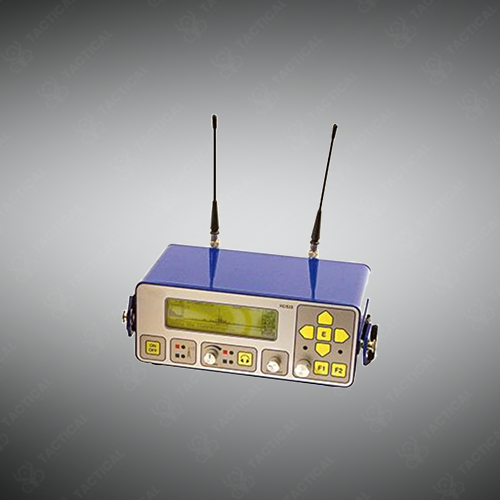

RD533 Correlator
High-precision correlator that locates and pinpoints underground water leaks while mapping the network for proactive maintenance.
Key Features:
✔️ Accurate leak detection on underground water pipes using sensitive ground microphones
✔️ Multi-function system for both leak location and pipe route tracing
✔️ Automatic frequency search with manual and digital filtering for rapid leak identification
✔️ Data logging capability to track network condition over time
✔️ Simple one-button operation with adaptive display brightness for field visibility
✔️ Works with transmitters to trace pipe topography and confirm leak positions
✔️ Compact, portable design for field-ready use
✔️ Ideal for municipal, industrial, and commercial water network maintenance
RD533 Correlator
The RD533 Correlator employs correlation analysis between two acoustic sensors attached to infrastructure access points. The central processing unit features automatic frequency search algorithms scanning across the audible spectrum to identify leak-generated noise signatures. Digital filtering functions operate in both automatic and manual modes allowing operators to isolate leak sounds from ambient interference. A highly sensitive ground microphone detects minute pressure losses generating minimal acoustic energy.
The display incorporates automatic brightness adjustment maintaining visibility across varying light conditions during field operations. Single-button operation simplifies correlation initiation reducing training requirements for new personnel. Internal memory stores multiple measurement sets enabling temporal comparison to track network degradation patterns. When paired with compatible transmitters, the unit traces underground pipe routing using electromagnetic detection methods supplementing acoustic leak location capabilities. The system calculates leak position along pipe segments between sensor placement points using time-domain correlation mathematics.
Water utility leak detection crews deploy the RD533 Correlator for non-excavation leak surveys on cast iron and ductile iron distribution mains. Military base utilities sections utilize correlation technology locating leaks on underground supply lines serving remote training facilities where visual indicators prove absent. Naval shipyard infrastructure teams employ acoustic correlation identifying leaks in dockside freshwater distribution networks beneath paved surfaces. Airforce installation civil engineering squadrons conduct systematic leak surveys across potable water systems supporting hangars and residential areas using stored measurement data for annual loss audits.
Tactical Supply Pakistan supplies this correlation system with replacement ground microphones and sensor cables for utilities maintaining legacy leak detection equipment inventories.
What factors affect correlation accuracy in leak location?
Sensor spacing distance, pipe material composition, and background noise levels directly influence correlation precision.
