Outdoor Waterproof Panel Antenna
Directional outdoor panel antenna covering 400 MHz–6 GHz with up to 16 dBi gain, ideal for drone detection, RF surveillance, and harsh environments.
🔹 Bullet Points (Key Features):
✔️ Frequency range: 400 MHz to 6 GHz
✔️ Selectable gain: 5 dBi to 16 dBi
✔️ Directional radiation pattern for focused signal capture
✔️ Dual polarization (horizontal & vertical) for enhanced stability
✔️ VSWR < 2.0 (≤1.8 in optimized bands)
✔️ Max input power: up to 100W
✔️ IP-rated waterproof and weather-resistant casing
✔️ Compatible with MIMO systems
✔️ Easy mounting on walls, poles, or towers
✔️ Ideal for fixed drone detection and RF perimeter setups
Outdoor Waterproof Panel Antenna

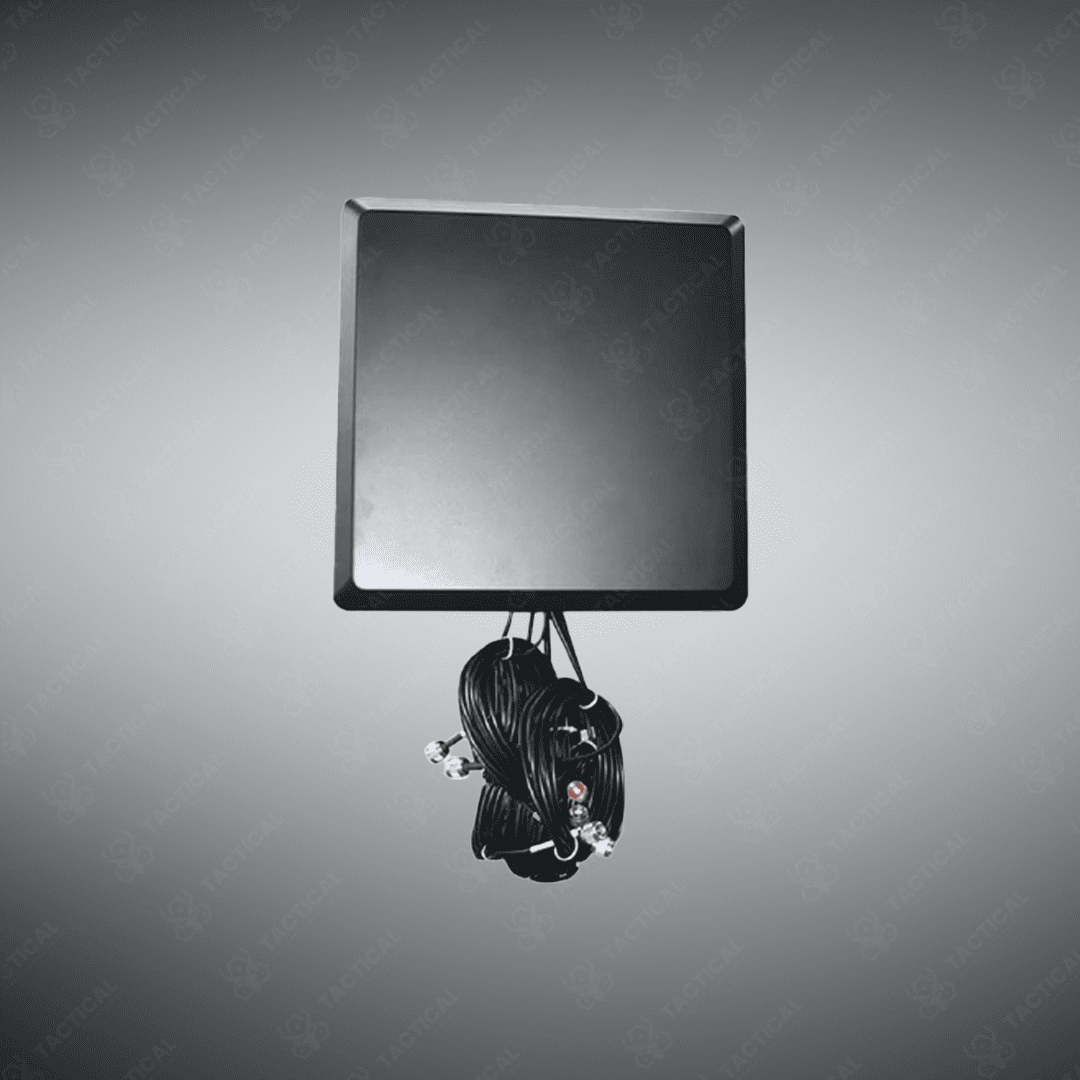

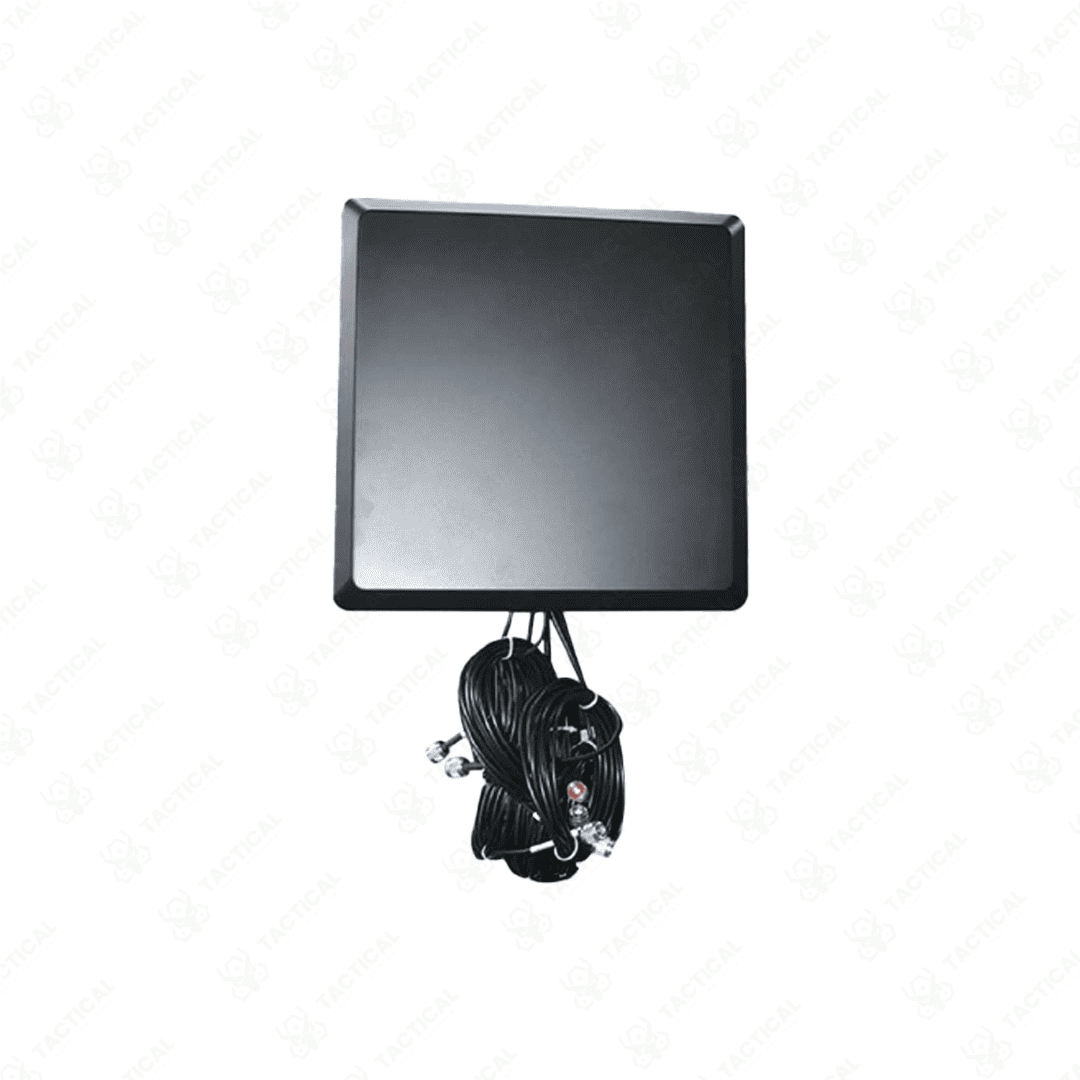

The Outdoor Waterproof Panel Antenna is a high-gain directional unit designed to operate across an ultra-wide frequency range of 400 MHz to 6 GHz. With selectable gain options from 5 dBi to 16 dBi, it adapts to long-range and localized RF signal environments with precision. This antenna is enclosed in a weather-resistant housing, offering stable outdoor performance in varying climates. The rugged panel structure ensures signal directionality while maintaining integrity during long deployments.
With a dual-polarization system supporting both horizontal and vertical signal paths, this antenna enhances link reliability and reduces signal fade in multipath environments. The VSWR remains under 2.0 (and even under 1.8 in optimal bands), ensuring minimal signal reflection. Depending on the configuration, the antenna can handle up to 100W of input power, making it compatible with both passive detection and active transmission systems.
The Outdoor Waterproof Panel Antenna is primarily used in fixed-position drone detection systems, remote surveillance stations, and RF perimeter setups. Its directional radiation pattern focuses energy toward defined sectors, improving detection range and accuracy. MIMO (Multiple Input, Multiple Output) compatibility also allows use in systems where data throughput and redundancy are critical.
All units are distributed and field-tested by Tactical Supply Pakistan, ensuring operational quality and hardware resilience under mission-driven conditions. The housing is IP-rated for outdoor use, and installation is straightforward across poles, walls, or tactical towers.
Can this panel antenna be used for both drone detection and general RF monitoring?
Yes, its wide frequency range and polarization support make it effective for both applications, including real-time drone signal interception.
