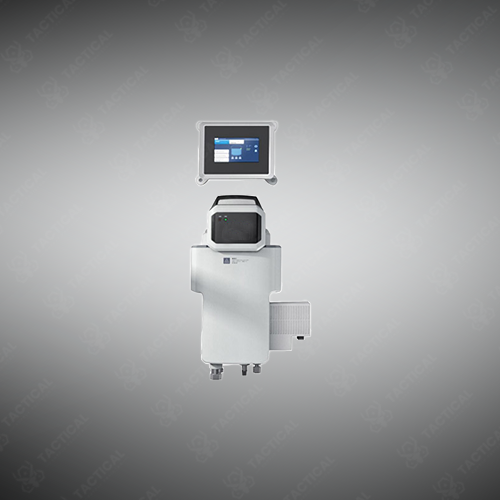

Online Turbidity Analyzer
An online turbidity analyzer designed for high-sensitivity, low-turbidity water monitoring using the 90-degree light scattering measurement principle.
Key Features:
✔️90-degree light scattering measurement method delivers high sensitivity and strong linearity for low turbidity detection
✔️Stable tungsten lamp light source provides higher scattering sensitivity compared to infrared-based systems
✔️Built-in continuous-flow bubble elimination structure minimizes interference from air bubbles and flow fluctuations
✔️Optical receiver positioned at 90° reduces stray light and particle size interference for improved accuracy
✔️Supports pressure-driven sampling or optional peristaltic pump operation for flexible installation
✔️Simple, guided calibration with two-point or user-defined turbidity range settings
✔️Adjustable sampling intervals help extend sensor lifespan and reduce maintenance frequency
✔️Integrated alarm function allows user-defined turbidity thresholds for real-time monitoring and alerts
Online Turbidity Analyzer
Online Turbidity Analyzer employs 90-degree light scattering methodology with tungsten lamp light source for suspended particle detection. The collimated parallel light beam travels vertically downward through the immersed sensor, measuring scattered light intensity at perpendicular angle. Visible light wavelength delivers approximately nine times greater sensitivity than infrared detection systems. The unit integrates ALPHAPEC700 display and control terminal for operational management and data visualization.
Built-in continuous flow bubble elimination structure removes air interference and stabilizes fluid velocity through the detection chamber. Two-point calibration at 0 and 20 NTU utilizes formalin solution with visual programming guidance, though custom calibration extends to 40 NTU range. Sample injection accepts water pressure input or optional peristaltic pump configuration. Programmable sampling period intervals extend component lifespan during intermittent monitoring operations. Concentration alarm functionality allows user-defined threshold settings for exceedance notifications. The 90-degree receiver position minimizes stray light interference and secondary scattering effects while maintaining linearity across low turbidity ranges.
Water treatment plants install the Online Turbidity Analyzer at pre-filtration, post-filtration, and sedimentation stages for process control verification. Navy desalination facilities monitor membrane system performance and backwash cycle optimization using continuous turbidity data. Airforce base potable water distribution networks deploy multiple analyzers at secondary supply points ensuring drinking water clarity standards. Municipal monitoring stations integrate these units for compliance reporting at reservoir outlets and distribution entry points.
Tactical Supply Pakistan provides water quality instrumentation supporting treatment plant operations and distribution system monitoring, offering analytical equipment with simplified calibration procedures and programmable alarm functions for proactive maintenance scheduling.
Why does the 90-degree scattering method outperform transmission turbidity measurement at low ranges?
Scattered light intensity changes significantly with minor turbidity variations at perpendicular angles, whereas transmission methods show minimal detector response at low concentrations, making 90-degree detection substantially more sensitive below 40 NTU measurement ranges.
