Multispectral Binoculars
Compact multispectral binoculars combining thermal and full-HD digital night vision for all-condition detection and identification.
Key Features:
✔️ Dual imaging: thermal sensor and full-HD digital night vision
✔️ Thermal sensor resolution 640×480 with NETD < 25 mK
✔️ Digital night vision 1920×1200 for sharp low-light detail
✔️Picture-in-Picture mode for simultaneous thermal and digital viewing
✔️ Thermal detection range up to 1800 m with 3–24× magnification
✔️ Digital night vision 2–16× with attachable 940 nm IR illuminator
✔️ Rugged, waterproof magnesium-alloy body, IPX7 rated
✔️ AMOLED display with ergonomic design for comfortable extended use

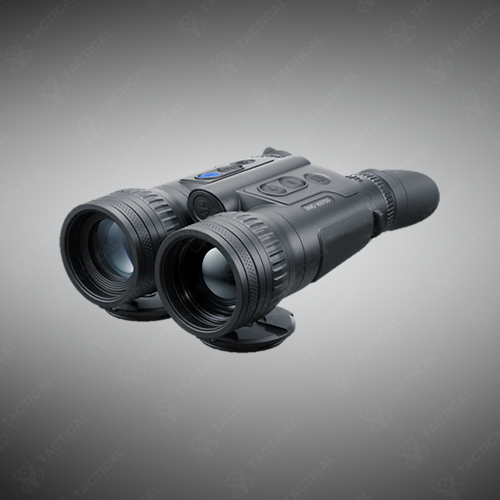

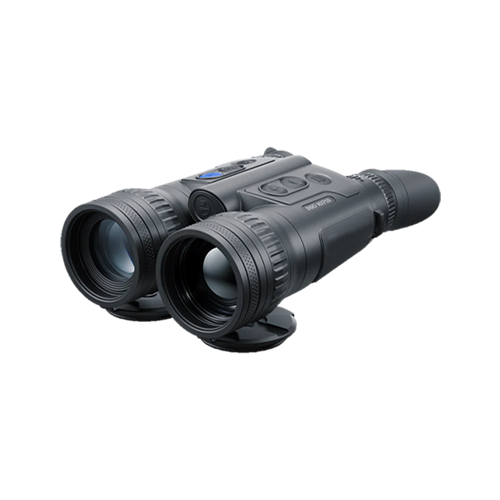

Multispectral Binoculars
The Merger Duo NXP50 Multispectral Binoculars integrate a 640×480 pixel thermal sensor with 17μm pitch and NETD below 25 mK alongside a CMOS 1920×1200 digital sensor within a single binocular housing. Thermal magnification ranges from 3x to 24x with a 50mm F1.0 lens providing 12.4-degree horizontal field of view, while the digital channel offers 2x to 16x magnification through a 50mm F1.4 lens with 17.5-degree field coverage. Both channels display on 1280×960 AMOLED screens with 12mm eye relief. The thermal sensor detects targets at distances up to 1800 meters with 50 Hz refresh rate.
The system operates in three modes: thermal-only, digital-only, or multispectral Picture-in-Picture overlay. An attachable 905nm infrared LED illuminator enhances digital channel detail without visible signatures. Smooth digital zoom extends to 8x magnification beyond optical magnification. Eight-color thermal palettes optimize contrast for different environmental conditions. Three calibration modes—manual, semi-automatic, and automatic—maintain thermal image accuracy. Sensitivity enhancement settings include Normal, High, and Ultra levels for both thermal and PiP modes. Internal 64GB memory records video and audio. IPX7 environmental rating ensures waterproof protection. APS3 lithium-ion battery pack delivers 7.5 hours operation at 22°C. Weight measures 1.2 kg without illuminator. Operating temperature spans -25°C to +50°C.
Border patrol units deploy the Merger Duo NXP50 Multispectral Binoculars for long-range surveillance combining thermal detection with visual identification capabilities. Special forces reconnaissance teams use Picture-in-Picture mode during target assessment operations requiring simultaneous thermal signature and feature detail analysis. Naval security forces conduct harbor protection patrols using thermal imaging for small boat detection.
Tactical Supply Pakistan supplies these Dual-Spectrum Optics with complete accessory packages for professional observation requirements across defense and security sectors.
Does automatic calibration interrupt observation during critical surveillance moments?
Semi-automatic mode allows operator-controlled calibration timing, preventing interruptions during sensitive observations while maintaining thermal image accuracy throughout extended missions.
