Multi-channel Data Recording Hardware
A high-precision multi-channel data recorder capable of synchronously capturing data from up to five three-axis magnetometers and additional sensors for advanced measurement applications.
Key Features:
✔️ 15 input channels supporting 5 three-axis magnetometers
✔️ Additional RS232 input for third-party sensors (position, acceleration, pressure, temperature)
✔️ Fully synchronized sampling at 2000 Hz for precise simultaneous measurements
✔️ 24-bit digitization for high-resolution analog-to-digital conversion
✔️ LAN interface for PC connection, live streaming, and third-party integration
✔️ Temperature-calibrated for stable performance in demanding environments
✔️ Compatible with server tool or TDX app for configuration and control
✔️ Suitable for continuous, high-precision campaigns in aerospace, geophysics, and research
Multi-channel Data Recording Hardware

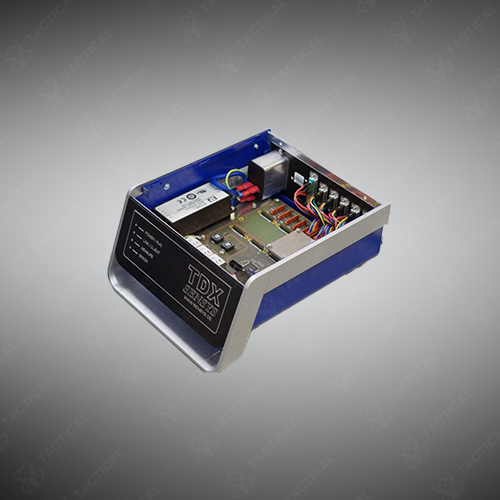

The TDX Multi-channel Data Recording Hardware features 15 dedicated inputs configured for connecting up to five FGM3D three-axis magnetometers simultaneously. Each channel supports 2000Hz sampling rate with full synchronization across all inputs to capture concurrent measurement values. The unit employs 24-bit analog-to-digital conversion technology for sensor signal digitization. An additional RS232 serial input accommodates third-party sensors including pressure, temperature, position, and acceleration devices.
The recorder connects to computers through a LAN Ethernet interface and operates via server control software or dedicated TDX application. Live data streaming transmits to configured network ports, enabling real-time access for external monitoring systems. The housing incorporates temperature calibration mechanisms to maintain measurement accuracy across varying environmental conditions. Physical dimensions accommodate rack mounting in standard measurement equipment configurations.
Aerospace manufacturers utilize the TDX Multi-channel Data Recording Hardware for satellite component magnetic interference assessment during rotation testing procedures. Geophysical survey teams deploy it with magnetometer arrays for detailed subsurface anomaly mapping in mineral exploration projects. Research institutions connect multiple sensor types simultaneously to study electromagnetic field interactions in laboratory environments. Defense contractors employ the system for naval vessel degaussing verification measurements where precise multi-point magnetic field documentation is required.
Tactical Supply Pakistan provides advanced scientific instrumentation for organizations conducting high-precision measurement campaigns requiring synchronized multi-sensor data acquisition capabilities.
How does the TDX maintain synchronization across all 15 channels at maximum 2000Hz sampling rate?
The TDX uses internal clock distribution architecture that triggers all analog-to-digital converters from a single timing reference source. This master clock signal reaches each input channel simultaneously through dedicated circuit pathways.
