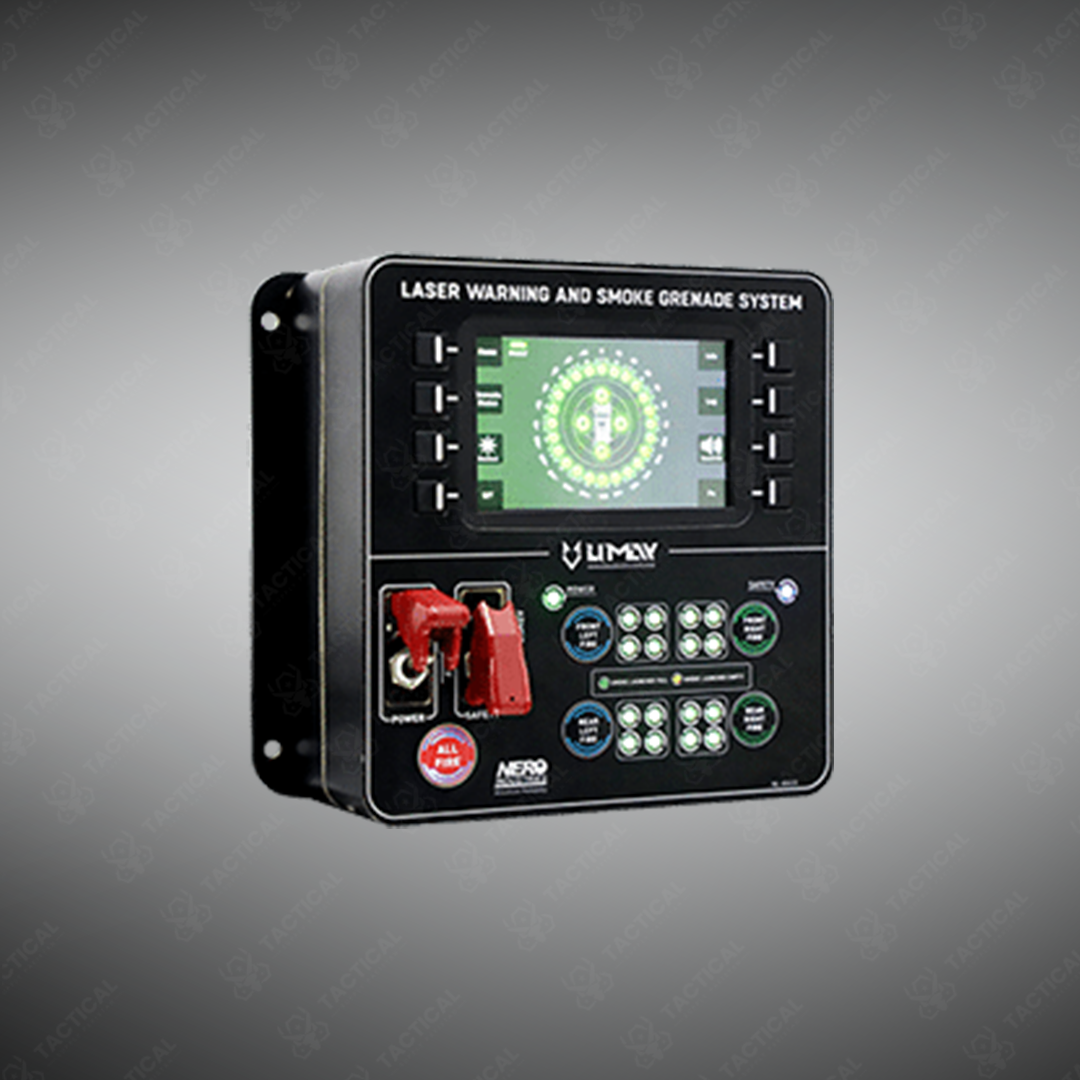

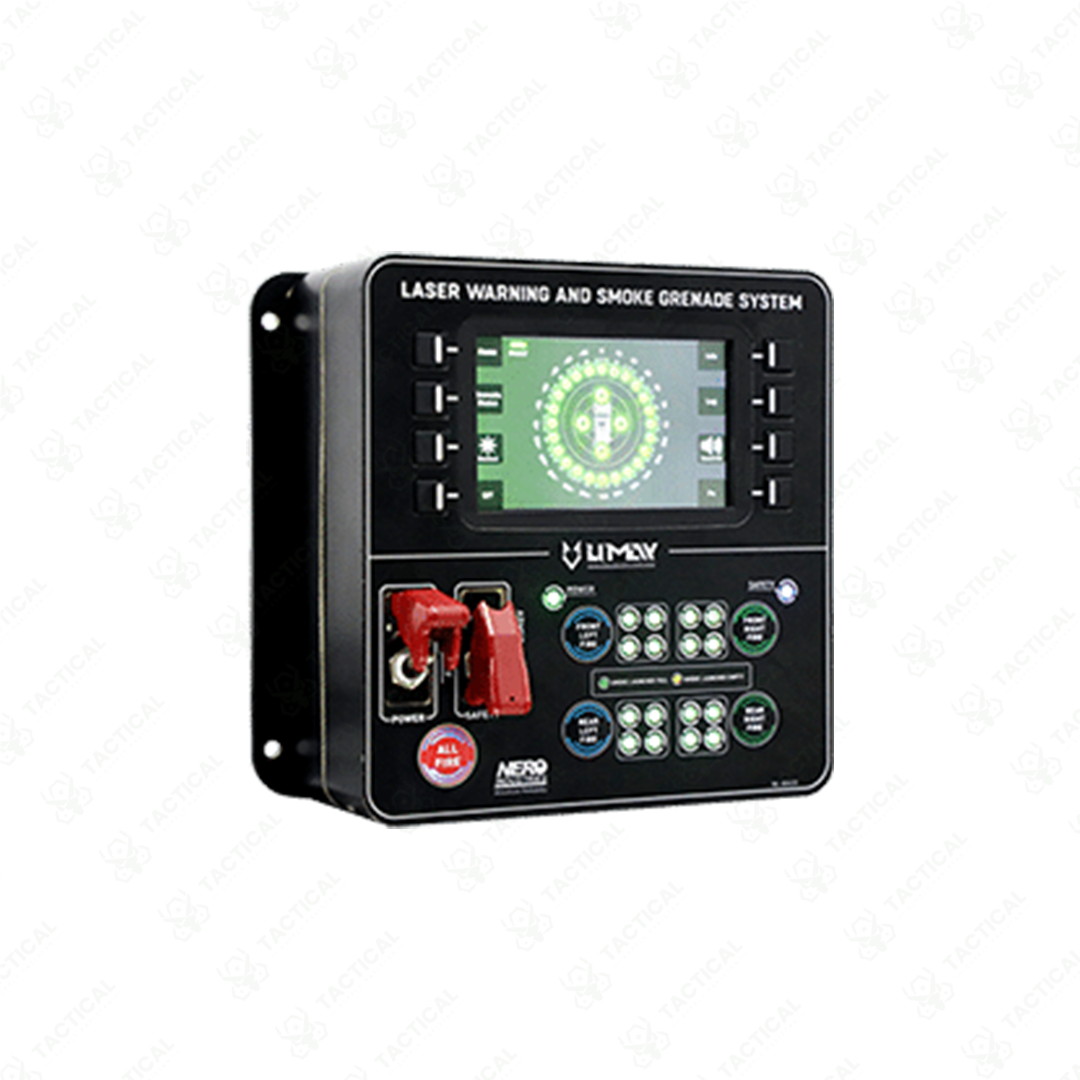

Laser & Smoke Launcher Control Unit – SGL-3
Compact control module for coordinated laser‑cueing and up‑to‑16 smoke‑grenade launcher activation; rugged, networked interface for vehicle/installation integration.
Key Features:
✔️ Power: 24 VDC nominal (operating 16–32 V)
✔️ Capacity: Controls up to 16 smoke grenades (sequenced or individual firing)
✔️ CANbus / RS422 / RS232 / Fast Ethernet for C2, sensor and launcher integration
✔️ Dimensions: 180 × 155 × 116 mm ±5 mm (compact housing)
✔️ Weight: 1.9 ±0.3 kg (lightweight for vehicle/installer mounting)
✔️ Environmental: IP67 rated enclosure for dust/water protection
✔️ Temperature: Operating −32 °C to +49 °C | Storage −55 °C to +85 °C
✔️ Interfaces cleanly with laser‑warning and countermeasure suites
✔️ DIN‑style compact footprint; designed for vehicle dash or rack mounting
✔️ Supports remote/local switching and sequenced firing logic
Laser & Smoke Launcher Control Unit – SGL-3
The Laser & Smoke Launcher Control Unit – SGL-3 measures 180 x 155 x 116 millimeters and weighs 1.9 kilograms. Power consumption operates at 24 volts DC nominal between 16–32 volts. The unit manages up to 16 smoke grenade launchers. Communication interfaces include CANBus, RS422, RS232, and Fast Ethernet. IP67 protection ensures field operation. Operating temperature spans -32 to +49 degrees Celsius. Storage temperature ranges -55 to +85 degrees Celsius. Compliance includes MIL-STD-810G, MIL-STD-461, and NATO STANAG-3733. Production adheres to IPC-A-610G Class 3 standards.
The control unit – SGL-3 automatically detects and classifies laser threats. Incidence angle data transmits to operators via digital interfaces. Event logging maintains NATO-standard records. Automatic smoke grenade deployment occurs based on operator-adjusted threat angles. Built-In Test function verifies system status. Dual smoke grenade type capability allows simultaneous control of different munitions. Communication flexibility enables vehicle fire control integration. Manual override switches provide operator control during tactical situations.
The Laser & Smoke Launcher Control Unit protects military vehicles from laser-guided missiles. Armored personnel carriers employ it for automatic countermeasures. Law enforcement vehicles utilize coordinated smoke deployment. Naval vessels integrate the unit for air defense. Mobile command posts deploy it for perimeter protection. Helicopter platforms mount arrays controlled by this interface.
Tactical Supply Pakistan provides this Turkish-engineered control solution for integrated laser and smoke defense systems. The SGL-3 enables coordinated platform protection through automated threat response.
Can this Control Unit – SGL-3 control multiple grenade types simultaneously?
Yes, the system manages 16 launchers supporting two different smoke grenade types for mixed munition employment.
