Handheld Raman Spectrometer
A portable, non-contact Raman spectrometer for rapid identification of chemicals, drugs, explosives, and hazardous substances with cloud-based intelligent management.
Key Features:
✔️Non-destructive 785 nm Raman spectroscopy for solids, liquids, and powders
✔️Quick one-button operation with test completion in approximately 3 seconds
✔️Large spectral library covering 8,000+ substances with deep learning mixture analysis
✔️Cloud-based data management with real-time database updates and multi-device synchronization
✔️Intelligent monitoring with centralized control, personnel tracking, and early warning alerts
✔️Integrated GPS/BeiDou, NFC, photography, and wireless communication for field operations
✔️High-definition 5-inch touchscreen display with 1920×1080 resolution and intuitive interface
✔️Rechargeable modular battery system offering 4–12 hours of continuous operation and rapid replacement
Handheld Raman Spectrometer

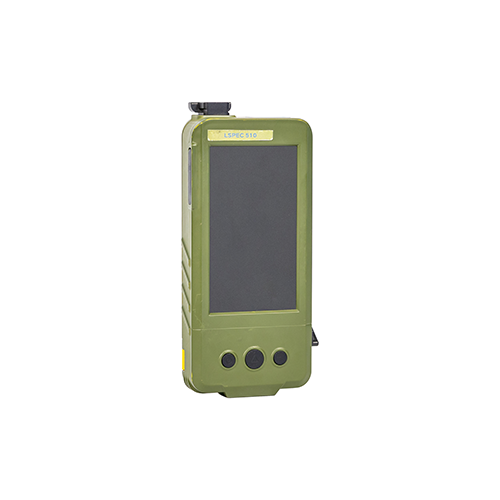

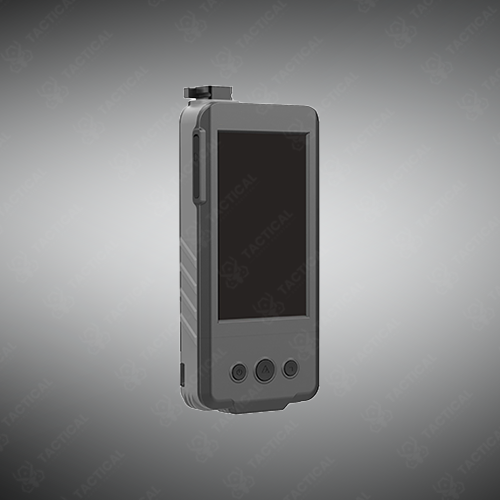

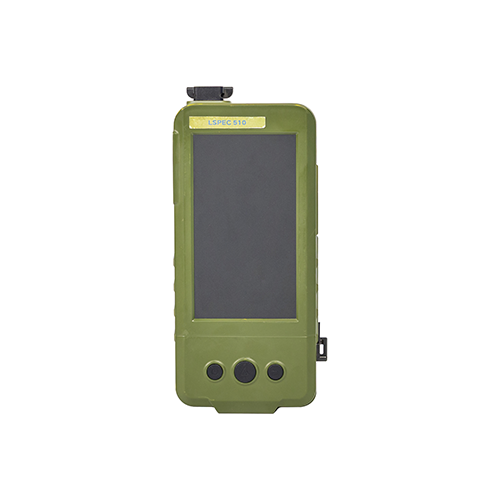

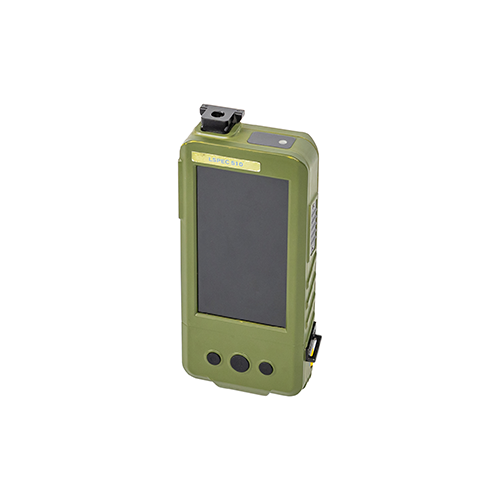

The Handheld Raman Spectrometer employs 785nm laser Raman spectroscopy for non-destructive material identification in a compact 182 mm × 88 mm × 30 mm form weighing 490 grams. The device features a 5-inch high-definition display with 1920×1080 resolution and capacitive touchscreen for multi-touch navigation. Spectral range spans 200 to 3200 cm⁻¹ with 8 to 10 cm⁻¹ resolution, accessing a cloud database containing over 8,000 substances. A pull-out damping probe with continuously adjustable working distance tests bottled or bagged samples without contact or accessory requirements.
Rechargeable polymer lithium batteries provide over four hours operation per unit, with quick-swap capability requiring no tools or device disassembly. Large capacity battery modules extend runtime to 12 hours minimum. The unit operates from -20°C to +40°C with storage tolerance to +50°C. Deep learning algorithms identify mixture proportions while generating reports containing spectral data, GPS/BeiDou positioning, timestamps, and 13-megapixel photographs. Wi-Fi and 3G/4G connectivity enable automatic cloud synchronization, SMS result notifications, and remote report access via QR codes. Test completion occurs within three seconds using one-button operation.
Customs officers deploy the Handheld Raman Spectrometer at border checkpoints for rapid pharmaceutical API verification and precursor chemical identification. Counter-terrorism units screen suspicious powders and liquids at security perimeters during high-risk events. Hazmat response teams analyze unknown substances at accident sites without sample handling or contamination risks. Law enforcement personnel identify drugs and explosives during field investigations requiring immediate results.
Tactical Supply Pakistan provides this intelligent detection system with centralized cloud management capabilities for organizations requiring networked material identification across multiple operational locations.
Does the spectrometer require physical contact with hazardous materials during testing?
No, the adjustable probe maintains safe standoff distances while testing through transparent packaging, eliminating personnel exposure and sample loss during analysis procedures.
