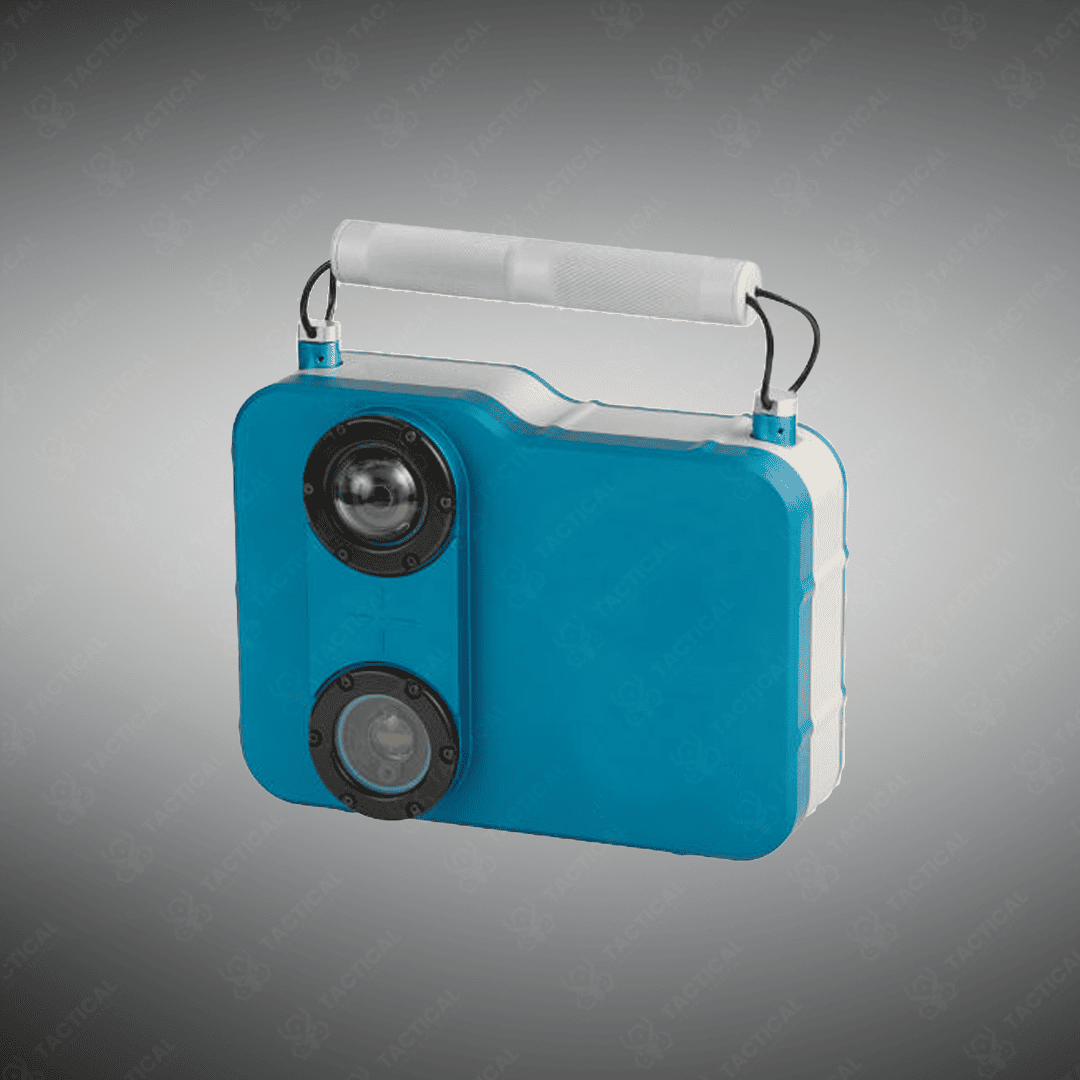

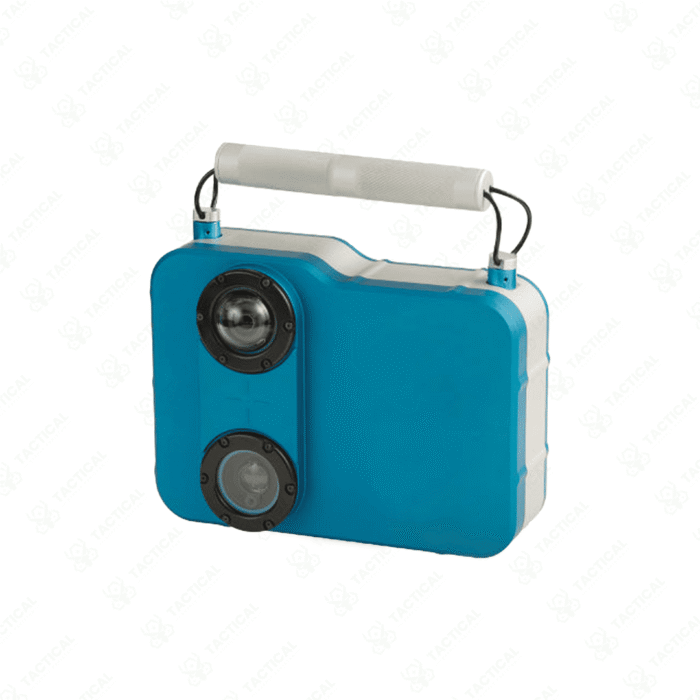

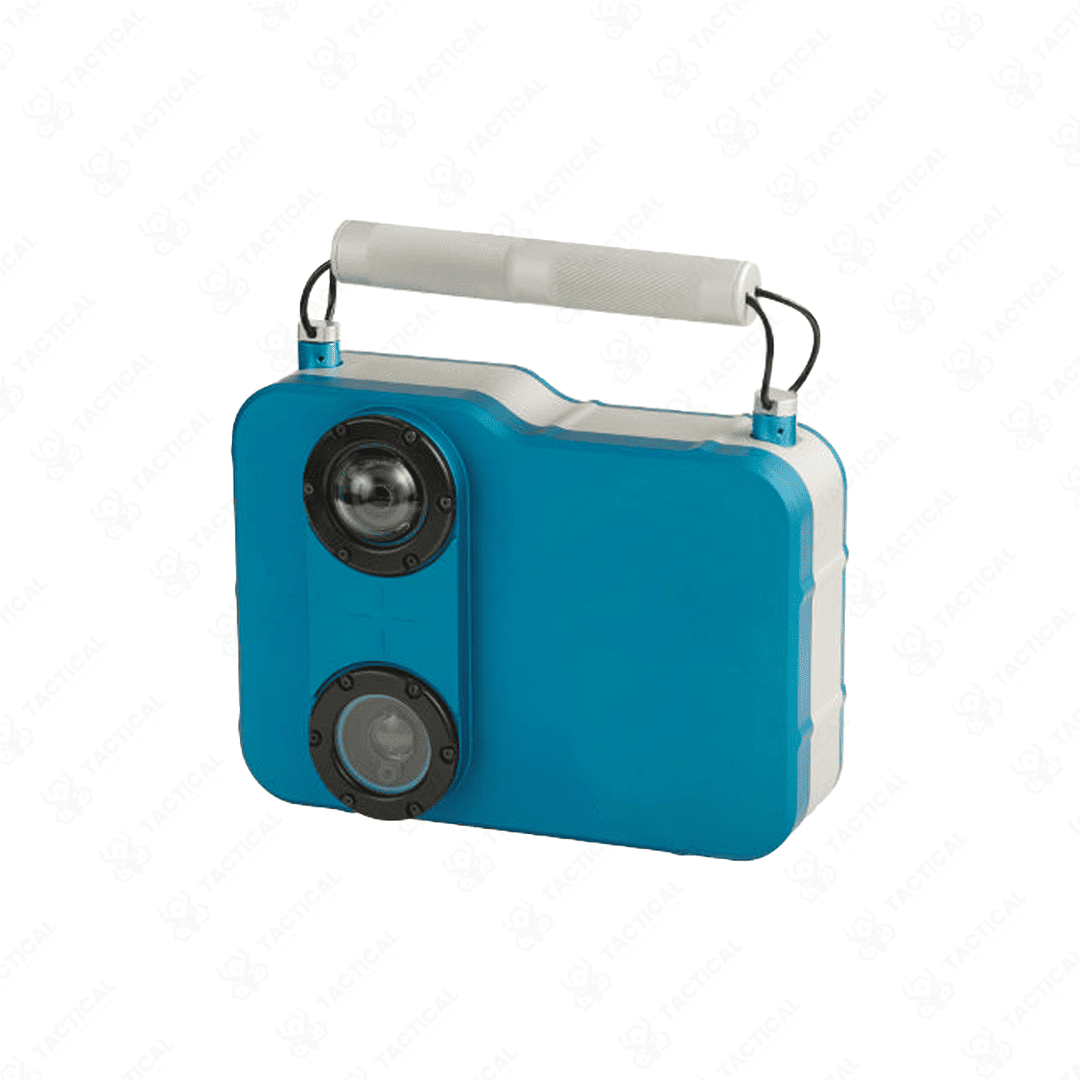

Industrial Imaging Spectrometer
Available in five models (H100, H400, H420, H400+, H420+), it supports applications from decommissioning to border security with unmatched spectral performance.
Key Features:
✔️ Five models with CZT volumes ranging from 6 cm³ to >19 cm³
✔️ Resolution:
• Standard models: ≤1.1% FWHM at 662 keV
• “+” models: ≤0.8% FWHM at 662 keV
✔️ Spectral range:
• H100, H400: 250 keV–3 MeV
• H420: Expanded to 50 keV–3 MeV
✔️ Under 90 seconds startup time
✔️ Battery lifeUp to 7 hours
✔️ Weight: ~7.3–7.8 lbs
✔️ IP67 waterproof/dustproof rating
✔️ Operating range: –4 °F to 122 °F (–20 °C to 50 °C)
✔️ Wireless tablet control with secure real-time data access
✔️ Built for CBRNE response, nuclear facility monitoring and field inspections
Industrial Imaging Spectrometer
The Industrial Imaging Spectrometer combines rapid field deployment with powerful gamma-ray imaging and isotope identification. Offered in five models: H100, H400, H420, H400+, and H420+, the system spans CZT detector volumes from 6 cm³ (H100) to over 19 cm³ (H400, H420 and “+” variants). The H100 offers over 7 hours battery life and <1.1% FWHM resolution at 662 keV, while the “+” models enhance resolution to <0.8% FWHM and maintain the same spectral range of 50–3000 keV.
All units provide seamless real-time spectroscopy, isotope ID, and omnidirectional imaging between 250–3000 keV (expanded to 50 keV for H420 variants). Weighing between 7.3 and 7.8 lbs and rated at IP67, these spectrometers start up in under 1.5 minutes and operate in rugged environments from –4 °F to 122 °F. The tablet-based interface enables quick operation and secure control in field conditions.
The Industrial Imaging Spectrometer is ideal for nuclear facilities, CBRNE response, environmental surveys, and waste management. The H400 delivers roughly three times the detection speed of H100, while the H420 adds low‑energy imaging down to 50 keV using a coded aperture mask. The “+” variants balance compact form and lab-grade resolution without sacrificing portability.
Tactical Supply Pakistan ensures that each model meets high operational standards, from isotope detection to rugged, field-ready construction. Whether rapid deployment, continuous site screening, or isotopic localization is needed, the H‑Series offers a dependable platform trusted by responders and nuclear operators worldwide.
Which model suits decommissioning versus border security?
For decommissioning and environmental use, choose H420/H420+—it adds low‑energy imaging critical for soil or radon mapping. For general portable scanning, H100 offers compact, all‑round performance, while H400/H400+ provide faster results and improved sensitivity without added weight.
| Model | H100 | H400 | H420 | H400+ | H420+ |
|---|---|---|---|---|---|
| Resolution (% FWHM @ 662keV) | <1.1 | <1.1 | <1.1 | <0.8 | <0.8 |
| Spectrometer Range (keV) | 50 to 3000 | 50 to 3000 | 50 to 3000 | 50 to 3000 | 50 to 3000 |
| Imaging Range (keV) | 250 to 3000 | 250 to 3000 | 50 to 3000 | 250 to 3000 | 50 to 3000 |
| Collimator (” Tungsten) | N/A | N/A | N/A | N/A | N/A |
| CZT Volume (cm³) | 6 | >19 | >19 | >19 | >19 |
| Weight (lbs.) | 7.3 | 7.8 | 7.8 | 7.8 | 7.8 |
| Battery Life (hrs.) | >7 | >6 | >6 | >6 | >6 |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Temperature Rating (°F) | -4 to 122 | -4 to 122 | -4 to 122 | -4 to 122 | -4 to 122 |
| Startup Time (minutes) | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 |
| User Interface | Tablet | Tablet | Tablet | Tablet | Tablet |
