Four-Point Measurement System
High-precision system using the four-point probe method to measure resistivity and sheet resistance of materials with minimal contact error.
Key Features:
✔️Uses four-point probe technique to separate current and voltage for accurate measurements
✔️Measures sheet resistance and bulk resistivity of conductive and semiconductive materials
✔️Eliminates contact and lead resistance errors for precise low-resistance readings
✔️Suitable for thin films, wafers, coatings, and bulk material characterization
✔️Supports automated or manual probe placement for flexible operation
✔️Integrated data acquisition and software control for real-time analysis
✔️Adjustable probe spacing accommodates various sample sizes and geometries
✔️Provides reproducible results for research, quality control, and industrial monitoring
Four-Point Measurement System

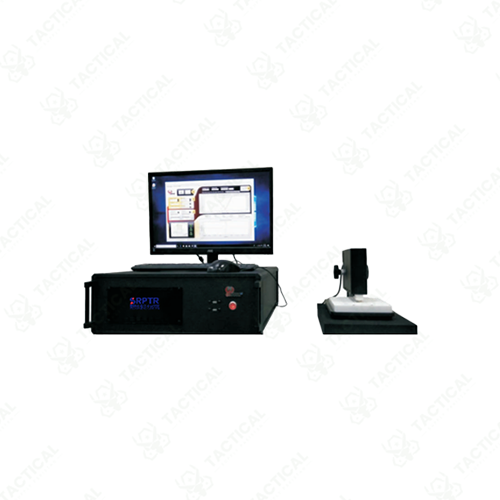

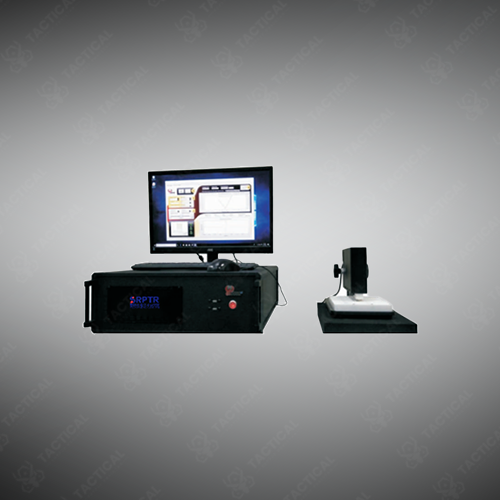

The Four-Point Measurement System is an advanced instrument designed for accurate electrical characterization of materials. It features four collinear probe tips mounted on a rigid stage, with two terminals dedicated to current injection and two for voltage sensing, minimizing the influence of contact and lead resistance. The probes are spring-loaded tungsten or beryllium copper, ensuring reliable contact without damaging delicate samples. The system includes a stable baseplate and an adjustable probe arm, allowing precise positioning on various sample sizes. A source-measure unit regulates current and reads differential voltage, while the probe spacing and contact force can be finely tuned to match sample geometry.
The system is equipped with a digital controller that interfaces with PC software for automated measurements and data logging. Users can set current levels and input sample parameters to obtain resistivity, conductivity, and sheet resistance directly. High-resolution voltage measurement circuits and programmable current sources enable the system to handle a wide range of materials, from high-conductivity metals to semiconducting thin films. Some models also allow temperature-dependent measurements or multiple probing points, expanding their utility in advanced material research.
In practical applications, the Four-Point Measurement System is widely used in semiconductor fabrication, thin-film development, and materials science research. It helps engineers and researchers assess doped silicon wafers, conductive coatings, and nanomaterials with precision. Semiconductor manufacturers rely on it to monitor sheet resistance across wafer lots, while university laboratories use it to study experimental materials and validate electrical properties under different conditions.
Research teams and industrial laboratories trust Tactical Supply Pakistan for delivering high-quality, calibrated metrology solutions that meet stringent standards and provide reliable performance in demanding environments.
Can the four-point system measure very small or delicate samples without damage?
Yes, the spring-loaded probe tips and adjustable contact force allow accurate measurements even on fragile or miniature samples.
