Drone Detection Equipment

Drone Detection Equipment

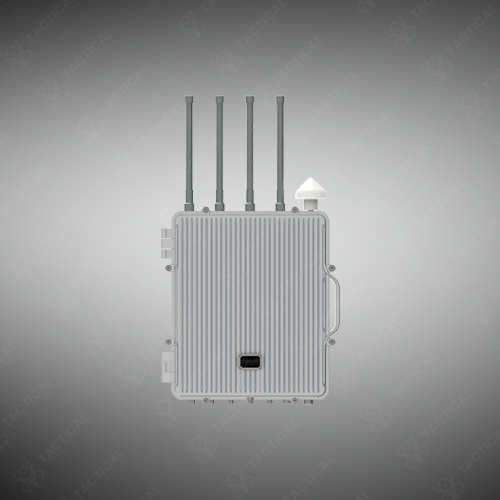

The Drone Detection Equipment FD1 is a stationary RF sensing device for drone detection and localization, operating across six discrete frequencies — 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, and 5.8GHz — targeting video transmission and remote-control links. It measures 513×462×187mm, weighs approximately 25kg, carries IP65 protection, and operates between -20°C and 65°C. Detection range extends from 1–10km with a location error of approximately 10 meters, simultaneously tracking up to 15 drones. The four-antenna array housing supports full-time, all-weather operation with no blind zones across its coverage footprint.

Through radio spectrum big data analytics, the FD1 identifies drone model, serial number, and pilot coordinates including longitude, latitude, and altitude in real time. It detects over 1,000 drone models including DJI, Autel, and self-assembled FPV platforms, with whitelist and blacklist classification distinguishing cooperative from non-cooperative targets. The unit operates independently offline or networked with multiple devices to extend area coverage. It directly interconnects with drone neutralization equipment including radio jammers and GNSS spoofers, creating an integrated detect-and-neutralize response chain without requiring separate command infrastructure.

Airport security teams deploy the Drone Detection Equipment for perimeter monitoring where unauthorized drone intrusions near flight paths require immediate pilot location identification and neutralization handoff. Critical infrastructure protection units install FD1 arrays at power stations and industrial facilities for continuous all-weather drone trajectory tracking. Major event venue security teams use networked FD1 units to maintain full-coverage airspace monitoring during high-profile public gatherings.

For airports, infrastructure operators, and event security teams requiring long-range stationary drone detection with neutralization integration capability, Tactical Supply Pakistan supplies the FD1 with deployment consultation covering antenna placement, network configuration, and neutralization equipment compatibility for specific airspace protection requirements.

Can the FD1 identify the drone operator’s location alongside the drone itself?
Yes, the FD1 extracts pilot coordinates including longitude, latitude, and altitude from the drone’s radio transmission data, allowing security teams to locate and respond to the operator simultaneously with tracking the drone.
