Doppler Signals Analysis Software
A Windows-based ballistic data analysis platform designed to process and interpret Doppler radar signals for precise projectile velocity and trajectory evaluation.
Key Features:
✔️ Real-Time Doppler Signal Processing for immediate velocity analysis
✔️ Live Data Visualization during acquisition – no need to wait for test completion
✔️ Multi-Tasking Architecture enabling simultaneous acquisition and analysis
✔️ Compatible with CW Doppler Radar Systems for seamless integration
✔️ Supports Wide Projectile Types: standard, base-bleed, tracers, sub-calibers, rockets
✔️ High-Accuracy Velocity Calculation Algorithms for ballistic validation
✔️ User-Friendly Windows Interface for efficient test management
✔️ Comprehensive Data Review & Export Tools for reporting and documentation
✔️ Optimized for Ballistic Test Centers and Proving Grounds
Doppler Signals Analysis Software

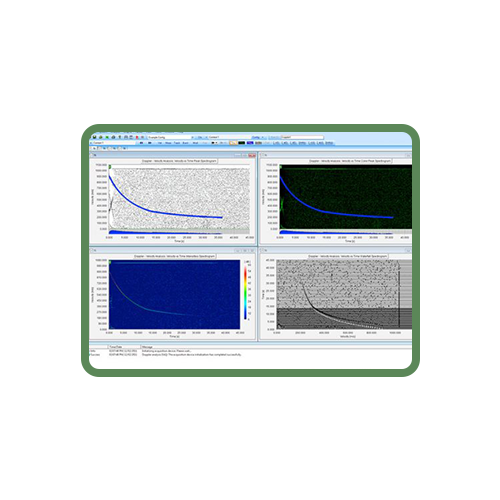

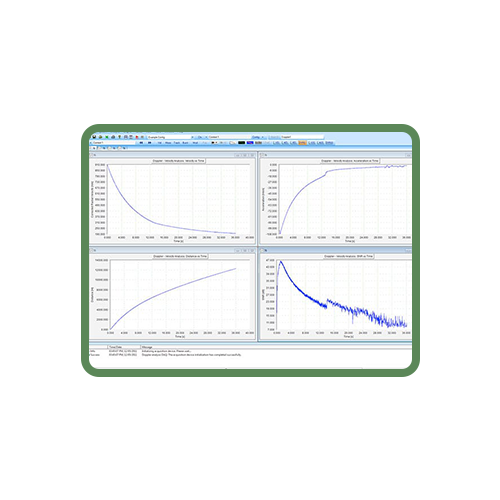

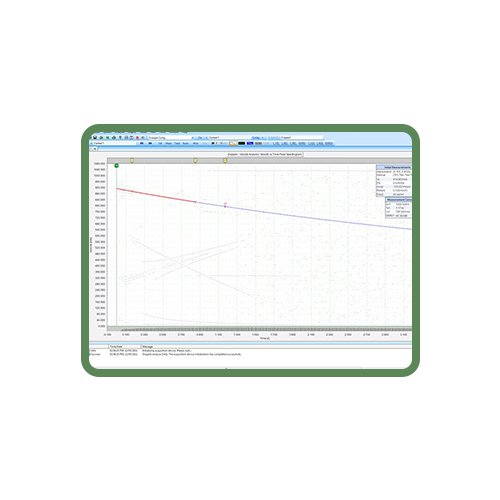

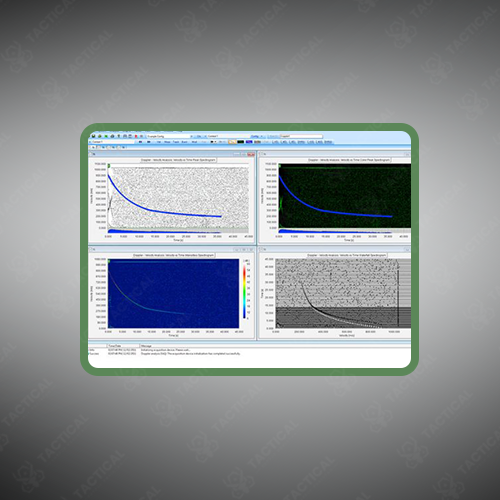

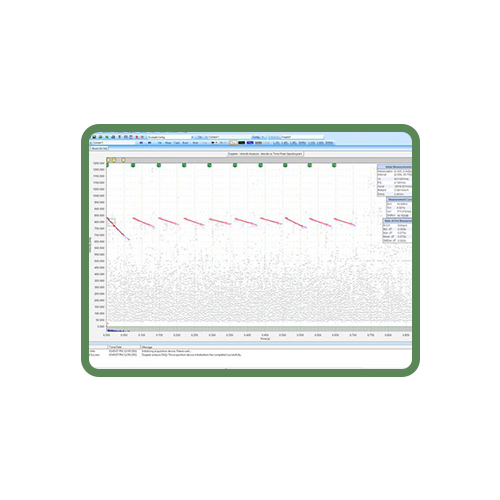

The Doppler Signals Analysis Software operates as a Windows-based multitasked application compatible with Microsoft Windows XP, 7, 8, and 10 platforms. The program provides concurrent data acquisition, processing, and results display through user-defined test configuration parameters. Raw data recording captures all channel information to disk storage with unlimited capacity for archival purposes. Multiple analysis contexts enable simultaneous operations including dual muzzle velocity measurements using separate radar units. The interface supports velocity analysis, spin modulation tracking, drag coefficient calculation, trajectory prediction, in-bore measurement, and rate of fire determination.
Advanced report generation integrates with Microsoft Excel for comprehensive ballistic documentation. The system accommodates standard projectiles, base-bleed rounds, tracers, sub-caliber munitions, and rockets through customizable acquisition parameters. Trajectory prediction algorithms utilize PM and MPM ballistic models for flight path forecasting. The software permits operators to initiate data analysis before acquisition completion through multitasking architecture.
Military ammunition testing ranges deploy the Doppler Signals Analysis Software in conjunction with continuous wave Doppler radar systems for projectile performance evaluation. Weapons development laboratories utilize the program for analyzing artillery shell trajectories and calculating ballistic coefficients during qualification trials. Proof ranges employ the software to verify ammunition compliance with NATO standardization agreements. Defense contractors measure muzzle velocity consistency across production lots using the integrated reporting functions.
Tactical Supply Pakistan provides ballistic instrumentation software for ammunition testing facilities requiring radar-based velocity measurement capabilities. The company supplies analysis platforms compatible with multiple radar frequency bands for projectile tracking applications across caliber ranges.
Can the software simultaneously process data from multiple radar units tracking different projectile types?
The multiple analysis context feature allows concurrent processing of separate radar feeds, enabling simultaneous measurement of different ammunition types during mixed-caliber testing sessions
