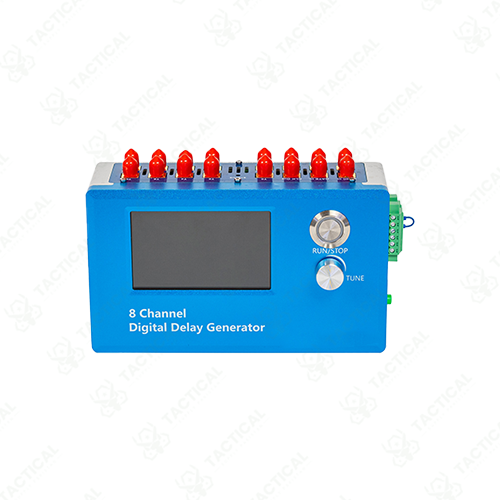

Digital Delay Signal Generator
A high-precision digital delay signal generator with 8 configurable channels, designed for ultrafast systems, precision pulse applications, and synchronized triggering in advanced instrumentation.
Key Features:✔️Eight independently configurable pulse output channels with adjustable width, delay, frequency, and drive voltage✔️Ultra-low time jitter (<30 ps) and inter-channel delay accuracy below 10 ps for precise timing control✔️Minimum pulse width of 10 ns with fast rise times (~1.5 ns) for high-speed signal applications✔️Supports internal/external triggers and clocks, as well as cascading multiple units for scalable systems✔️Programmable drive voltage (5 V/9 V) and flexible gating, single-shot, and multi-shot control✔️Open communication protocols (LAN, RS485, CAN) and APIs for integration with C++, C#, LabVIEW, and custom software✔️Local control via touchscreen and knobs with storage of parameters for repeatable operation✔️Digital interlock inputs/outputs ensure safe operation and synchronization in complex systems
Digital Delay Signal Generator
Digital Delay Signal Generator comprises three components: transmitter unit, receiver module, and sensor array for subsurface anomaly mapping. The system applies flow field method theory with pseudo-random current signal transmission across dam structures. The transmitter delivers five adjustable output voltages: 20V, 40V, 60V, 80V, and 100V with maximum 1A current output and 20-29V input voltage range. Output frequency drift remains below 7×10^-4 over seven-hour continuous operation periods.Receiver sensitivity exceeds 1.0×10^-4 A/m² with measurement range spanning 250μV to 60mV and ≤±2% measurement error. Input impedance maintains ≥150kΩ with >50dB power frequency interference immunity. The embedded industrial control computer integrates RTK and depth sounder connectivity for high-resolution positioning during water surface surveys. Digital signal acquisition processes current density field variations in real-time, generating immediate anomaly curves for on-site interpretation. Data storage functionality tags measurement locations with post-processing capability for comprehensive reporting.
Flood control agencies deploy the Digital Delay Signal Generator during high-water events requiring rapid structural integrity assessment before catastrophic failure propagation. Military engineering corps utilize these detectors for strategic reservoir inspection programs protecting water supply infrastructure. Airforce base earthen berms surrounding fuel storage facilities undergo periodic seepage monitoring preventing environmental contamination. Civil defense organizations maintain equipment stockpiles for emergency dam safety evaluations during natural disaster response operations.
Tactical Supply Pakistan supplies geophysical instrumentation supporting critical infrastructure monitoring and emergency response capabilities, delivering detection systems with field-proven performance in harsh environmental conditions and rapid deployment requirements.
How does the pseudo-random current method differentiate seepage zones from natural geological variations?Pseudo-random signals create distinctive current density patterns that respond differently to water-saturated pathways versus intact material, allowing algorithms to isolate seepage anomalies from background geological conductivity variations through comparative signal analysis.
