Detection and Jamming Integrated Device

Detection and Jamming Integrated Device

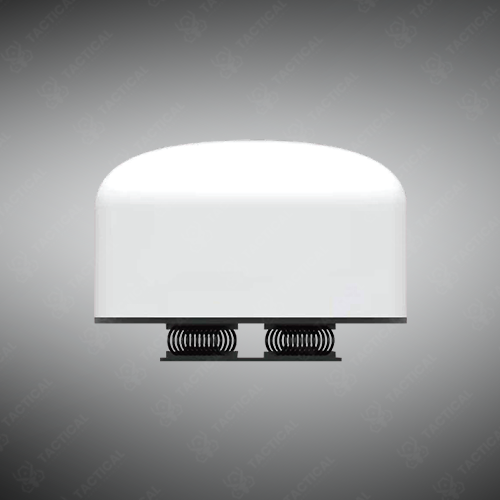

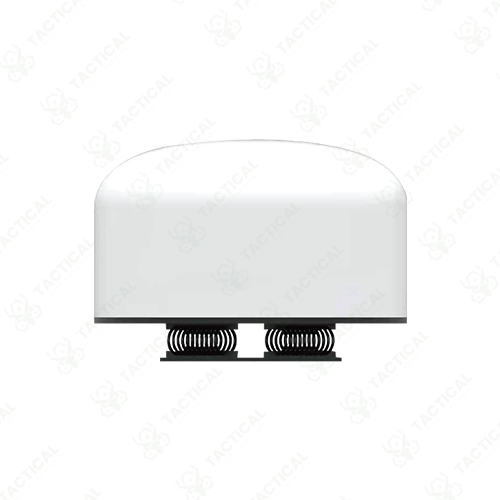

The Detection and Jamming Integrated Device VDC1 combines RF sensing and RF jamming into a single compact unit, targeting control links, GNSS links, and video transmission frequencies within one concealed housing. Detection specifications cover 100MHz–6GHz independently or combined, with an urban detection range of 1–5km, simultaneous swarm detection of 20 or more drones, directional or omni-directional mode selection, and a response time under 4 seconds. The jamming module operates across 900MHz, 1.5GHz, 2.4GHz, 4.8GHz, and 5.8GHz, covering both video transmission and control links with a 1–2km urban jamming range. The unit measures Φ*H(600×420mm), weighs approximately 30kg, and identifies DJI, DJI FPV, and racing drone models specifically.

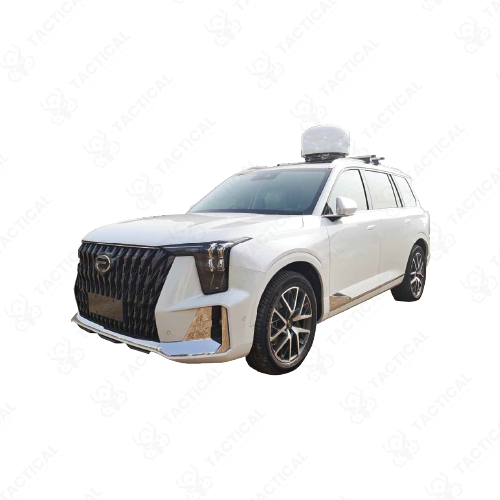

Detection and countermeasure modules integrate into a single compartment, eliminating the cabling and coordination delays of separate detect-then-jam system architectures. The VDC1 functions effectively in high-speed moving states, supporting vehicle-mounted deployment with minimal vehicle modification. It operates mounted or stationary with a neat concealed exterior that avoids the visible antenna arrays of conventional jamming installations, making it suitable for low-profile security deployments at sensitive locations.

Government protection units deploy the Detection and Jamming Integrated Device on vehicle convoys requiring continuous moving airspace protection against FPV and racing drone threats during transit operations. Stadium and major event security teams mount the VDC1 at perimeter positions for autonomous target acquisition and immediate jamming without operator intervention. Critical infrastructure sites use stationary installations where a single compact unit replaces separate detection and neutralization hardware across the protected zone.

For security agencies and protection units requiring a single-unit detect-and-neutralize drone solution, Tactical Supply Pakistan supplies the VDC1 with consultation on mounting configuration, frequency coverage selection, and directional versus omni-directional mode deployment for specific operational environments.

Can the VDC1 operate effectively while mounted on a moving vehicle?
Yes, the VDC1 is specifically designed to function in high-speed moving states with minimal vehicle modification, making it suitable for convoy protection and mobile patrol operations requiring continuous airspace coverage during transit.
