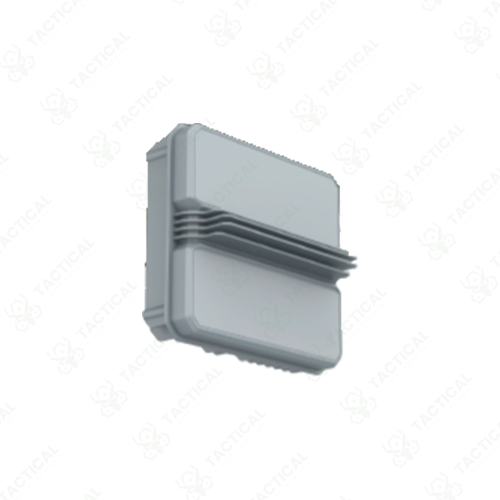

Compact Active Phased Array Radar
Compact Active Phased Array Radar is a low-SWaP, K-band AESA radar designed for all-weather, high-precision air-to-ground surveillance, delivering real-time 4D detection and tracking of aerial and ground threats.
Key Features:
✔️ K-Band AESA Radar: Active electronically scanned array for fast beam steering
✔️ 4D Detection: Measures range, azimuth, elevation, and velocity in real time
✔️ Optimized size, weight, and power for mobile and integrated platforms
✔️ Reliable performance in rain, fog, dust, and low-visibility conditions
✔️ Tracks conventional, low-emission, FPV, fiber-optic, and autonomous UAVs
✔️ Ground Target Tracking: Detects and monitors personnel and vehicle movements
✔️ High Update Rate: Rapid refresh enables smooth, high-fidelity target tracking
✔️ Flexible Deployment: Suitable for fixed sites, vehicles, and unmanned platforms
✔️ Sensor Cueing Support: Provides guidance for EO/IR sensors and countermeasure systems
Compact Active Phased Array Radar
The Compact Active Phased Array Radar operates in K-band frequency with active electronically scanned array technology for 4D detection across range, azimuth, elevation, and velocity parameters. The system achieves low SWaP characteristics through miniaturized component integration and efficient power management architecture. All-weather operation maintains detection performance through rain, fog, snow, and dust conditions that degrade optical sensors. The phased array configuration eliminates mechanical scanning components, increasing reliability and reducing maintenance requirements.
The radar identifies conventional drones, low-emission models, fiber-optic-controlled FPV units, and autonomous unmanned aircraft through advanced signal processing algorithms. Ground target detection extends to personnel and vehicle tracking within the surveillance envelope. The system generates guidance data for optical sensors, enabling automatic slewing to detected threat coordinates. Integration capabilities support connection to electronic warfare platforms and kinetic interceptor systems. Deployment flexibility allows mounting on fixed towers, mobile vehicle platforms, or unmanned aerial carriers.
Border surveillance units employ the Compact Active Phased Array Radar for detecting low-altitude infiltration attempts by small drones and ground teams. Naval vessels install these radars for close-in defense against swarm attacks in littoral zones. Air defense batteries use the system as gap-filler radar between long-range surveillance assets and terminal engagement radars. Special operations forces carry portable variants during high-value target protection missions requiring 360-degree awareness.
Tactical Supply Pakistan supplies radar systems that address multi-domain detection requirements with compact form factors suitable for diverse operational environments. The company prioritizes equipment offering flexibility across fixed and mobile deployment configurations.
Does the radar interfere with friendly communication systems?
No, K-band operation separates the radar frequency from standard military communication bands. The system includes filtering to prevent electromagnetic interference with collocated equipment.
