Stationary Drone Detection and Direction Finding All-in-One System
Stationary Drone Detection & Direction-Finding — passive 24/7 airspace monitor for precise UAS detection and bearing.
Key Features:
✔️ Passive receiver 30 MHz–6 GHz (no emissions)
✔️ Compact main unit 370×335×189 mm; 13 kg flight-case weight
✔️ Eight antenna ports (GPS, Wi-Fi, 1.4 GHz, full-band, 433 MHz, 2.4 GHz, 5 GHz, 4G)
✔️ Sensitivity to −105 dBm with 360° full-airspace coverage
✔️ Simultaneous tracking of >40 drones with <2 s response
✔️ DF accuracy ≈3° RMS stationary / ≈10° RMS moving; position <10 m RMS (to ~8 km)
✔️ Altitude coverage 0–1,000 m; continuous 24/7 operation
✔️ AC 110–240 V power, ~100 W consumption; tripod + antenna package for deploy
✔️ Black/white listing and electronic fingerprinting for authorized-unit filtering
Stationary Drone Detection and Direction Finding All-in-One System

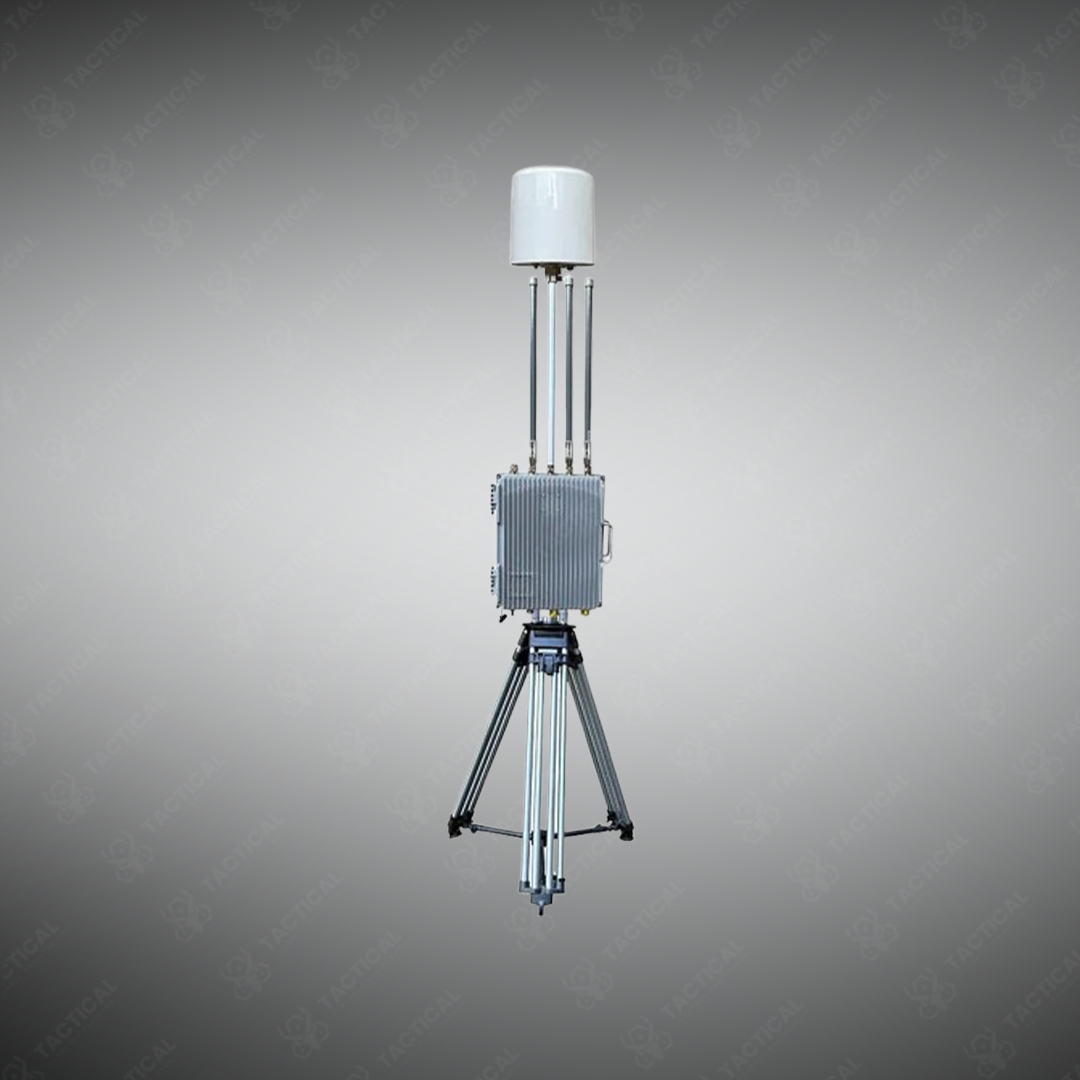

The Stationary Drone Detection and Direction Finding All-in-One System operates as a passive receiver covering 30 MHz to 6 GHz without emitting electromagnetic signals. The main device measures 370×335×189 mm and weighs 13 kg in a flight case. Eight dedicated receiving antenna connectors support GPS, Wi-Fi, 1.4 GHz, full-band, 433 MHz, 5 GHz, 2.4 GHz, and 4G frequencies. Detection sensitivity reaches -105 dBm with 360-degree full airspace coverage. The antenna package measures 400×310×310 mm, while the tripod assembly stands 1030 mm tall. Power operates on AC 110–240V at approximately 100W consumption.
The system simultaneously tracks more than 40 drones with response time below two seconds. Direction-finding accuracy achieves three degrees RMS for stationary targets and ten degrees for moving platforms. Position accuracy measures below ten meters RMS across detection ranges up to eight kilometers. The platform maintains continuous seven-by-twenty-four operation. Detection height covers zero to one kilometer altitude. Black and white list functions enable exempting authorized drones. Electronic fingerprinting identifies individual drone units regardless of model similarities.
Security personnel deploy the Stationary Drone Detection and Direction Finding All-in-One System across airports, correctional facilities, stadiums, and water treatment plants. Government agencies utilize it for critical infrastructure protection. Public safety departments employ it for event security. Military installations operate it for airspace awareness and unauthorized aerial vehicle identification.
Tactical Supply Pakistan maintains inventory of the DF Series with rapid delivery timelines and localized technical support, reducing setup delays for time-sensitive security operations.
Does the DF Series detect DIY and FPV drones, or only commercial platforms?
The system covers more than 98% of market drones including commercial models, FPV racing drones, Wi-Fi drones, and custom DIY units. The drone library continuously updates to maintain coverage of emerging platforms.
